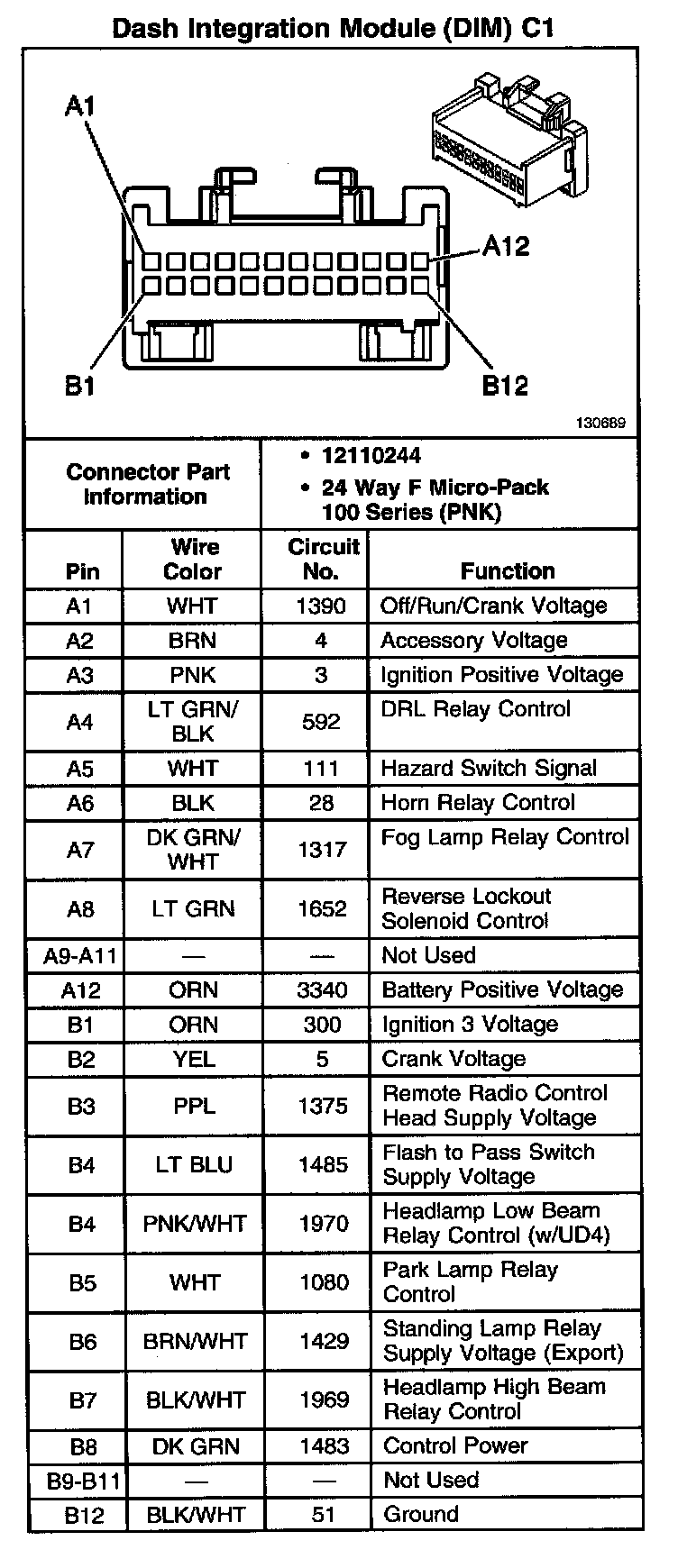

Dash Integration Module (DIM) C1
Dash Integration Module (DIM) C1
Dash Integration Module (DIM) C1:
"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID".
RPO Codes
