Instrument Panel Integration Module (IPM) C1

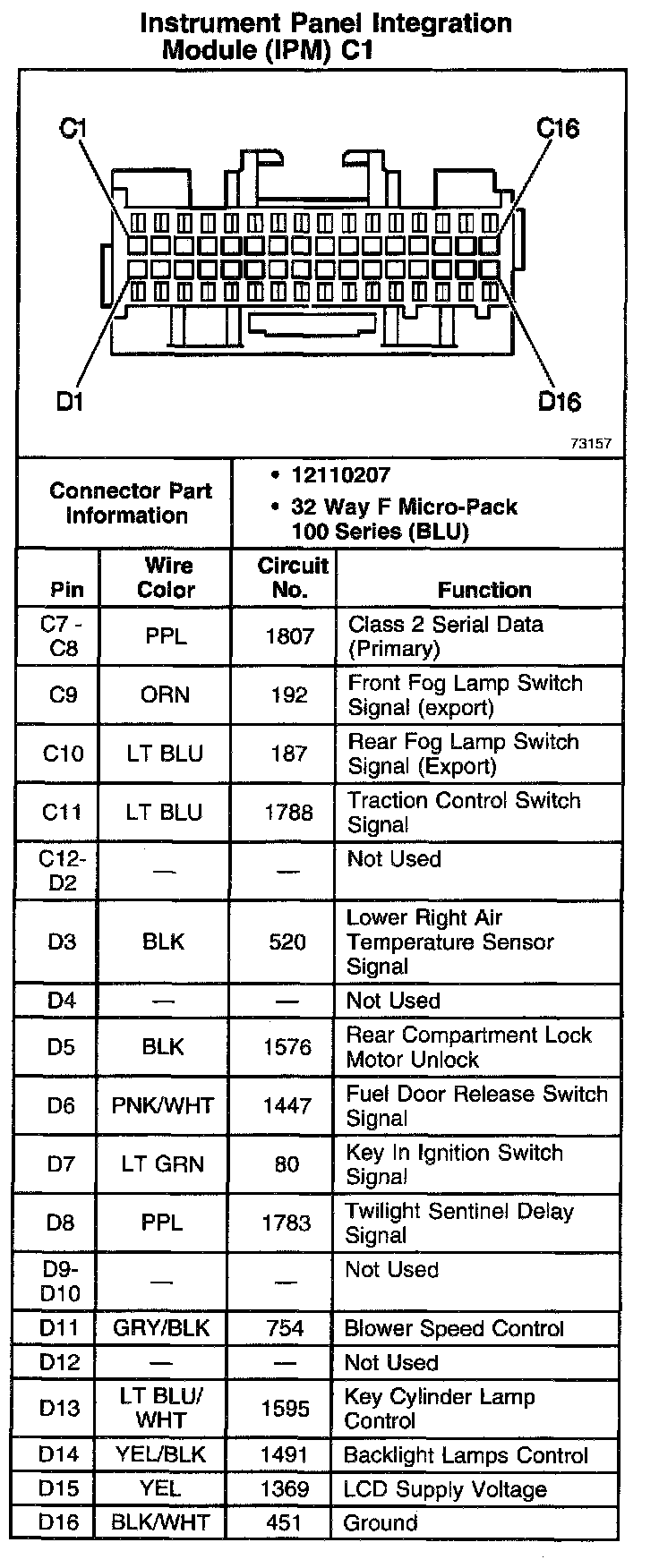

Instrument Panel Integration Module (IPM) C1 (Part 1 of 2):



Instrument Panel Integration Module (IPM) C1 (Part 2 of 2):
