Electrical Diagrams

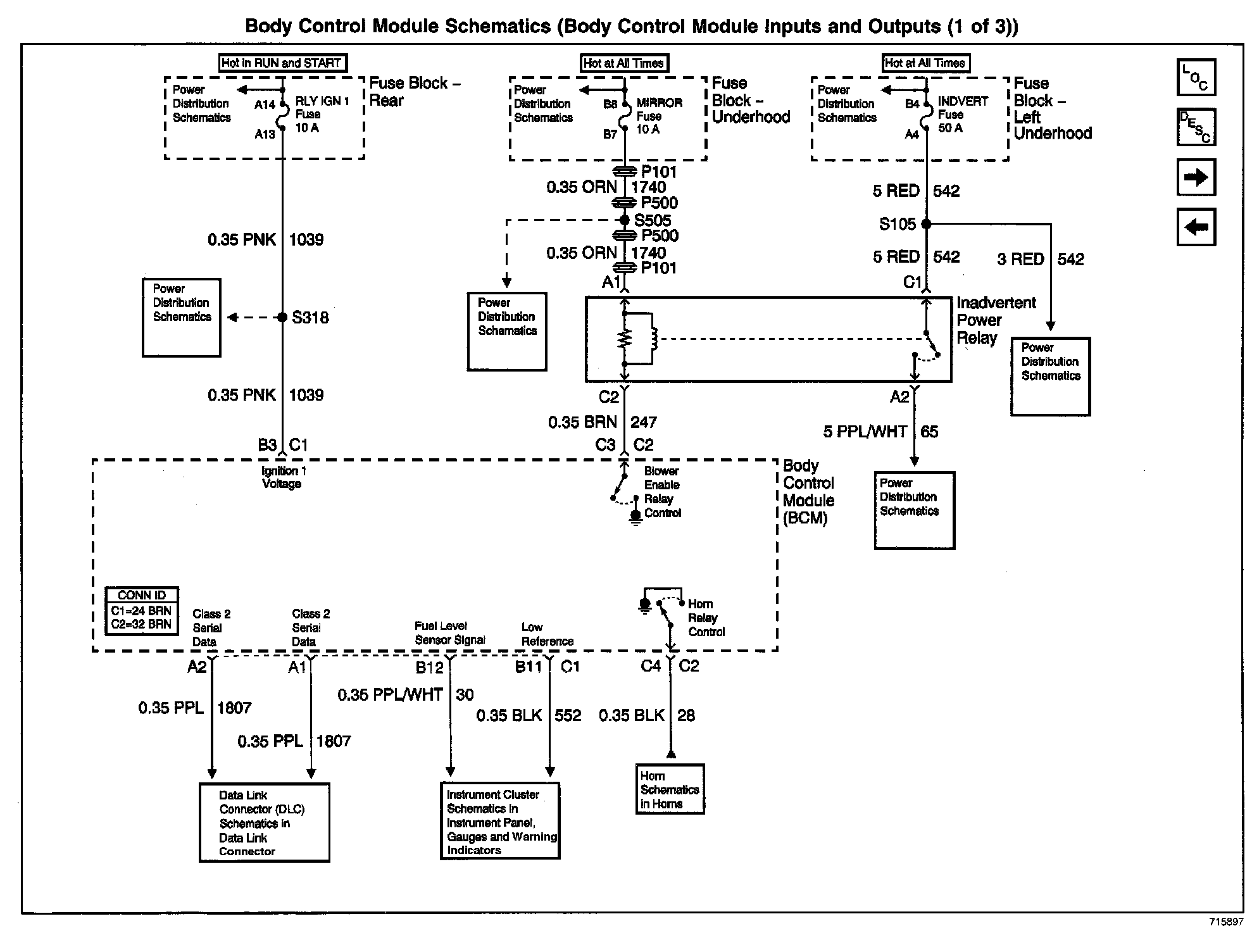

Body Control Module Schematics: Body Control Module Inputs and Outputs (1 Of 3):

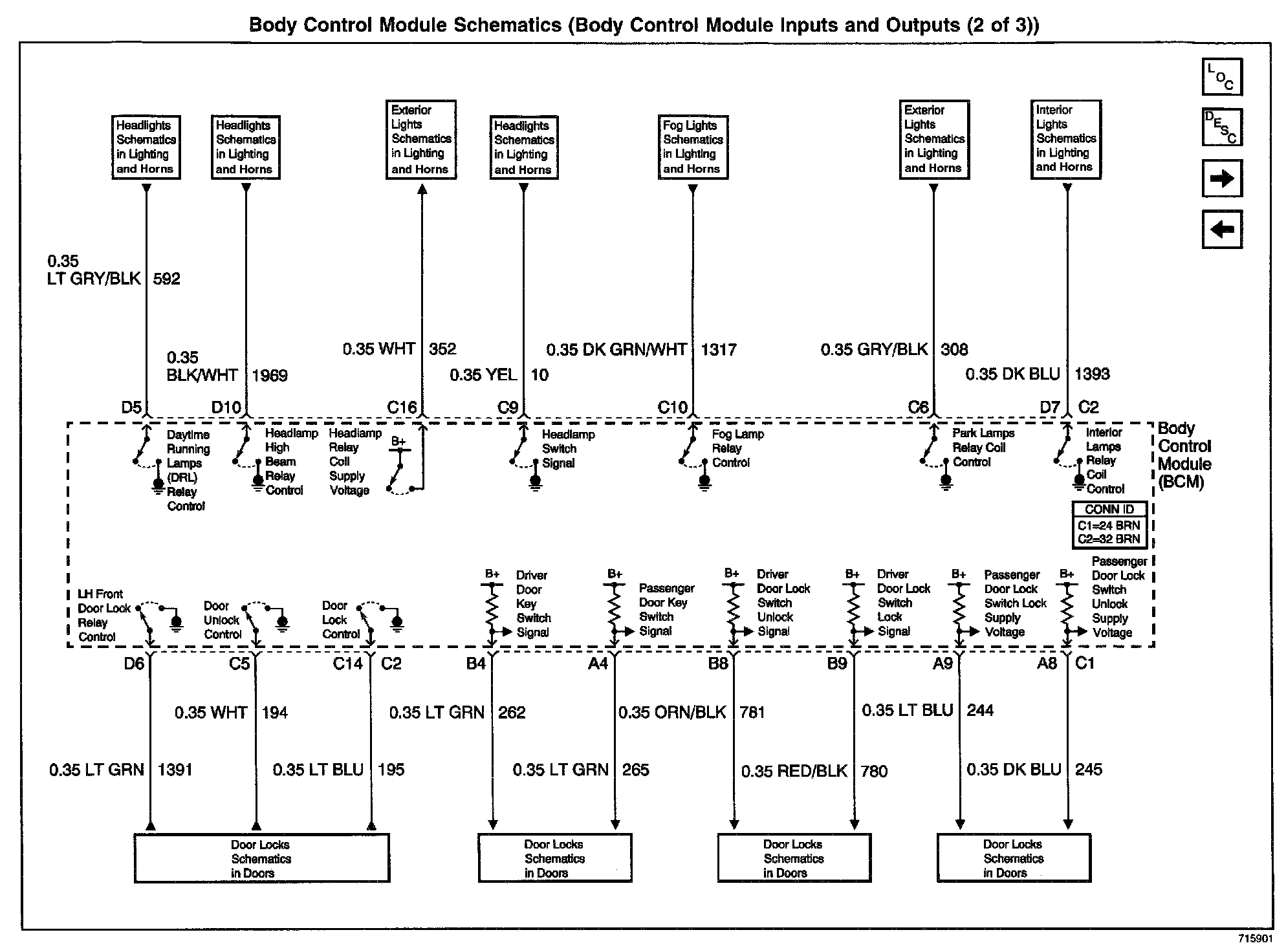

Body Control Module Schematics: Body Control Module Inputs and Outputs (2 Of 3):

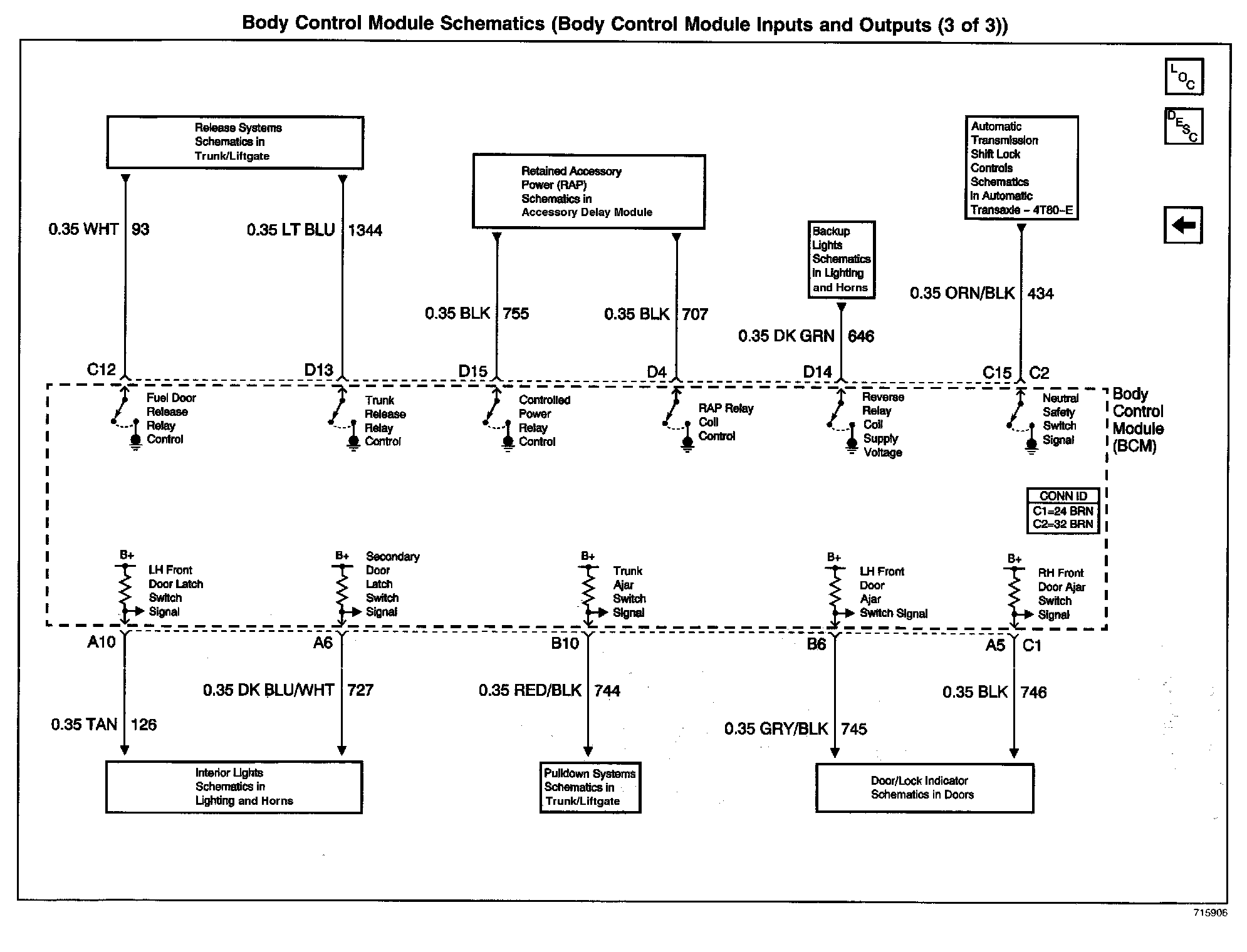

Body Control Module Schematics: Body Control Module Inputs and Outputs (3 Of 3):
