Home >> Cadillac >> 2001 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls - Memory Seat Module (MSM)

Scan Tool Output Controls - Memory Seat Module (MSM)

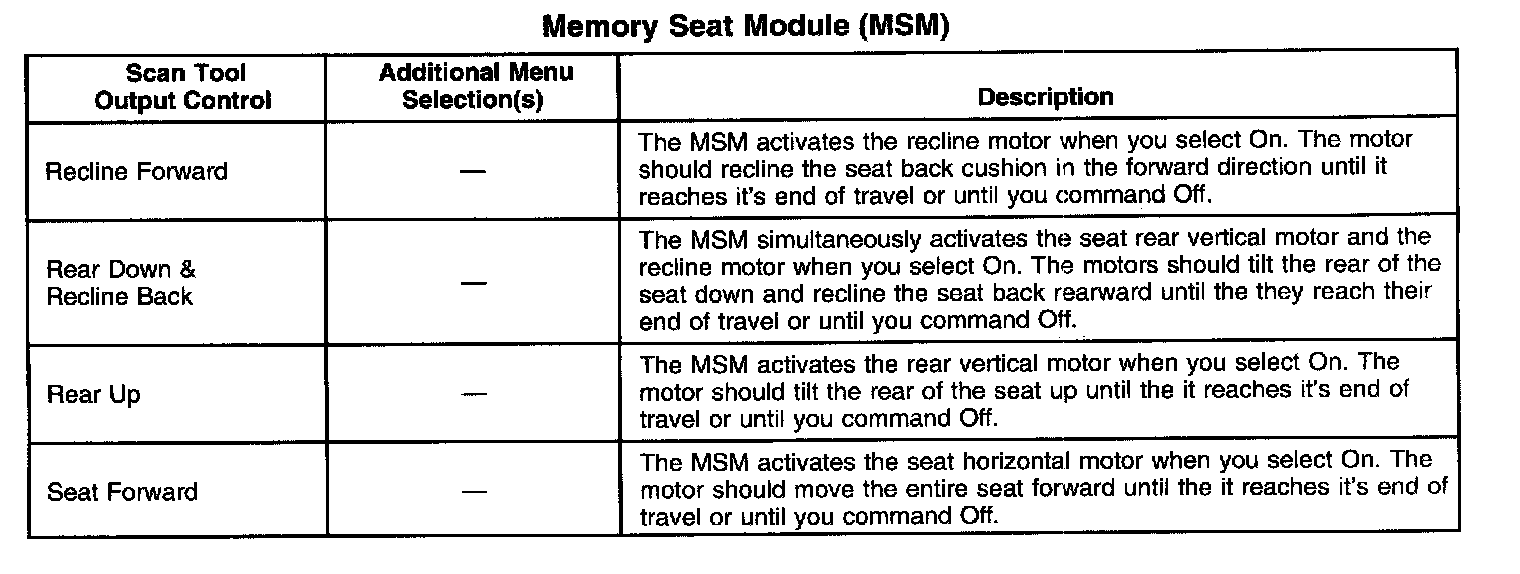

Memory Seat Module (MSM) (Part 1 Of 2):

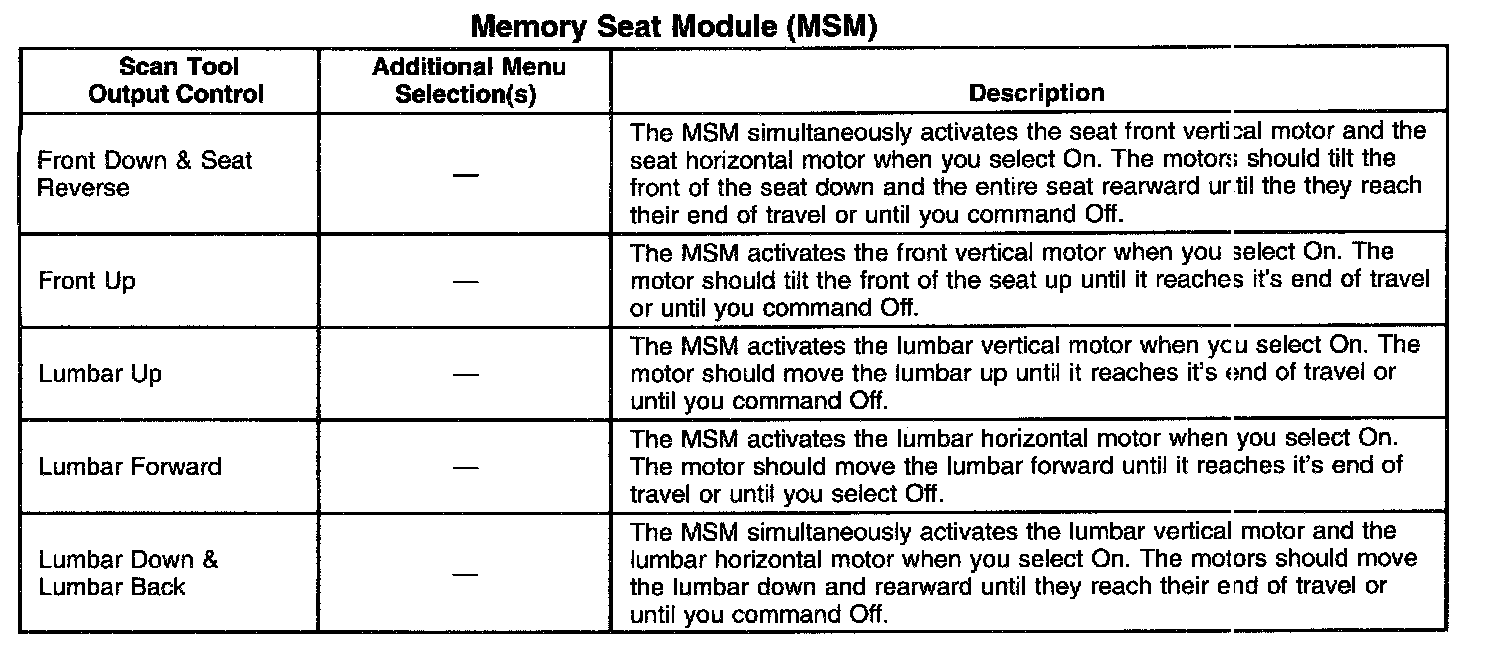

Memory Seat Module (MSM) (Part 2 Of 2):
