Home
>>
Cadillac
>>
2001
>>
Eldorado V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Control Module
>>
Locations
>>

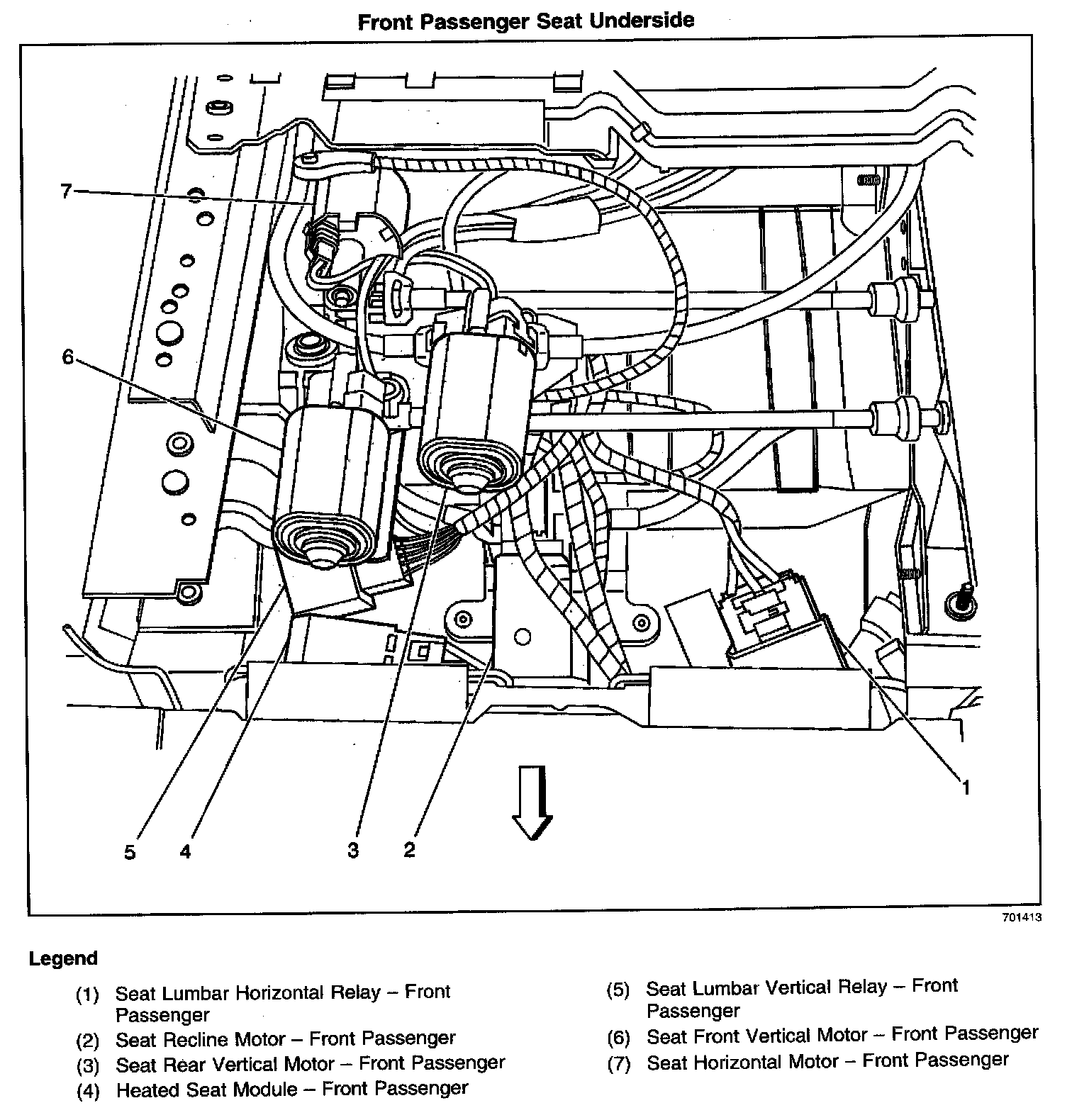

Heated Seat Module - Front Passenger
Heated Seat Module - Front Passenger
Locations View:
On the right front side of the passenger compartment, under the right front seat
