Home >> Cadillac >> 2001 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

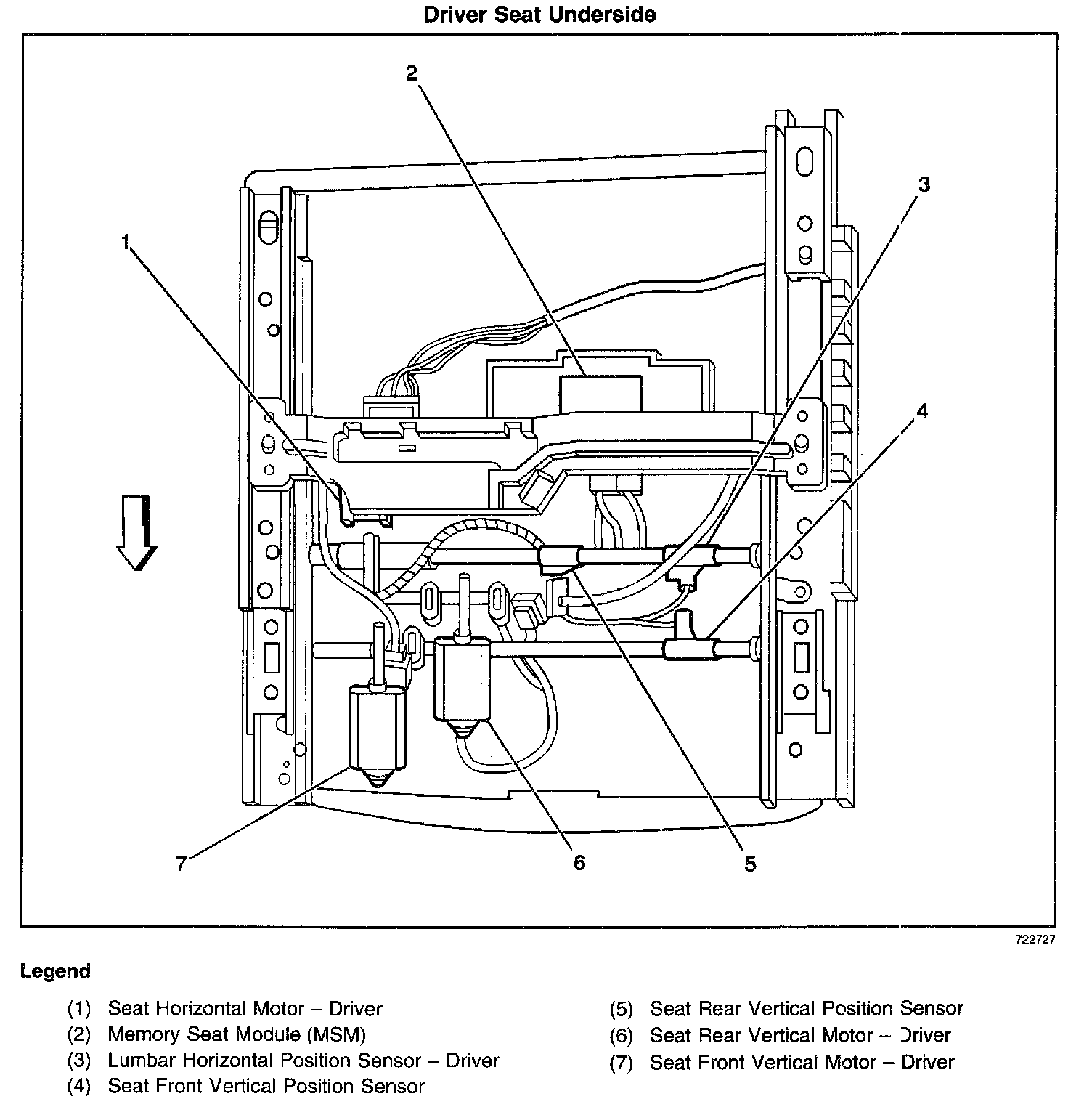

Power Seat Control Module: Locations

Locations View:




In the left front side of the passenger compartment, under the left front seat
