Ignition Control (IC) Module Front Bank

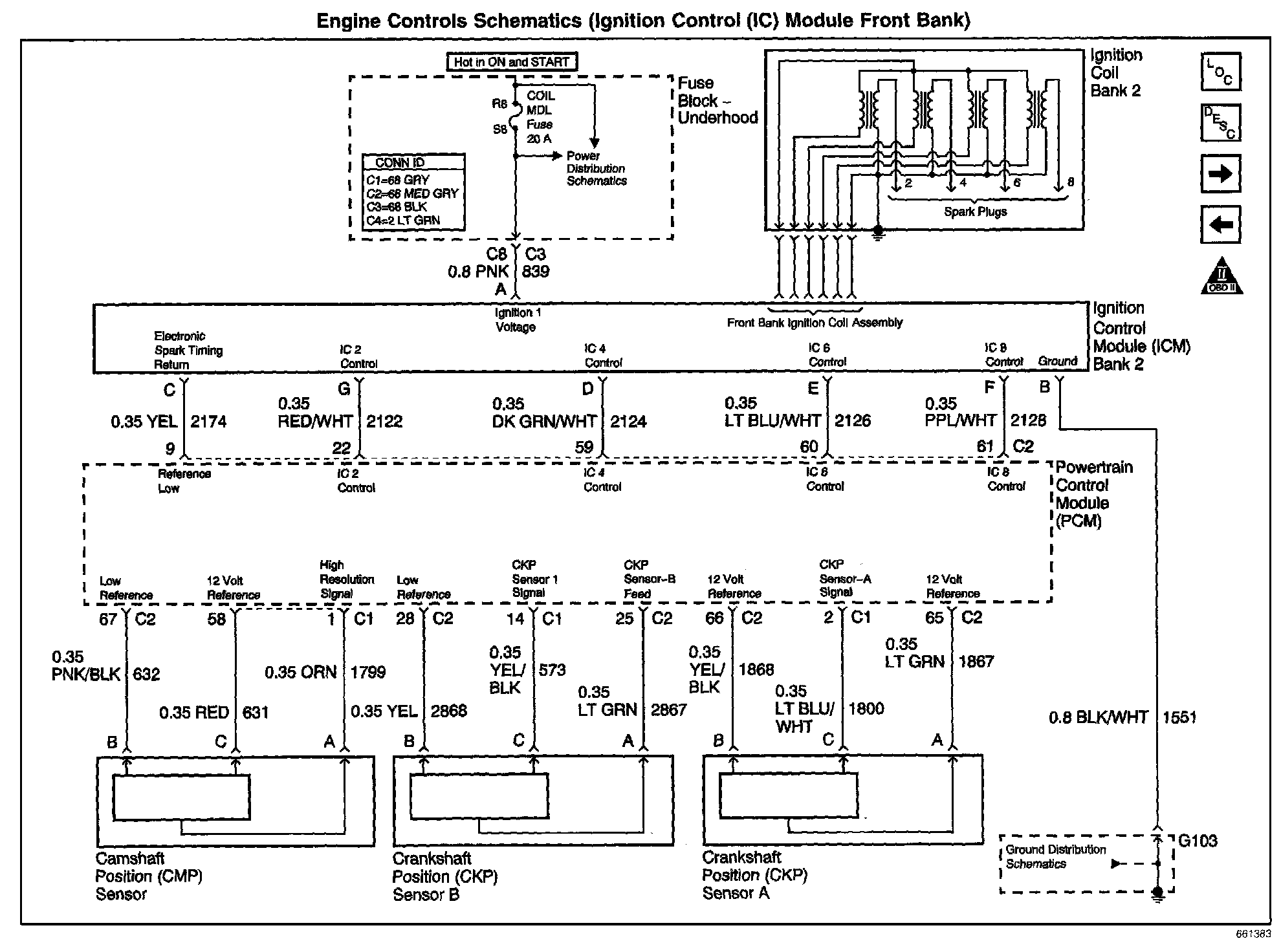

Engine Controls Schematics: Ignition Control (IC) Module Front Bank:
