Cruise Control Module PCM Controls and Vehicle Speed Input

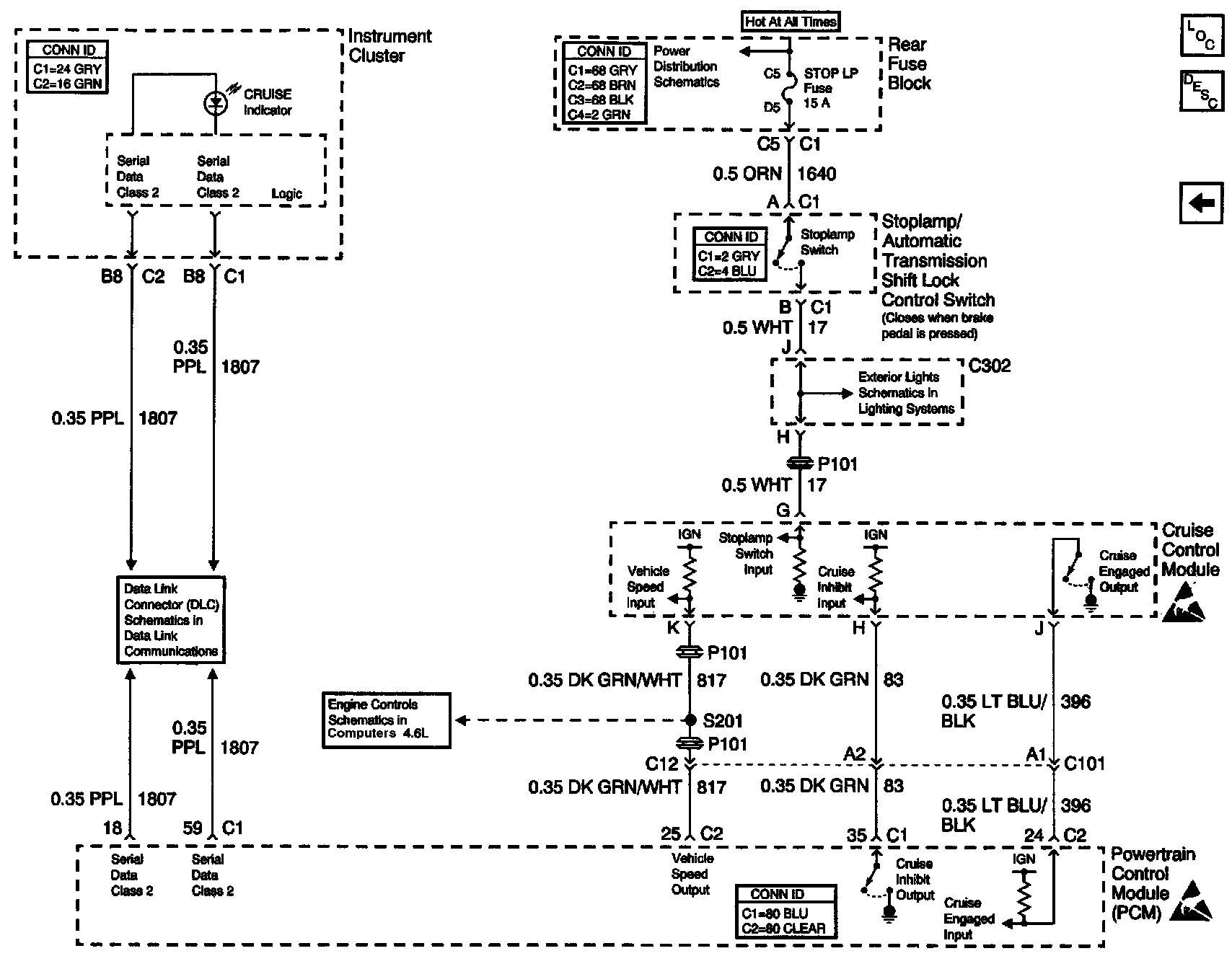

Cruise Control Schematics: Cruise Control Module PCM Controls And Vehicle Speed Input:
