Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Suspension Controls Schematic Icons >> (CVRSS) Module Connector C2

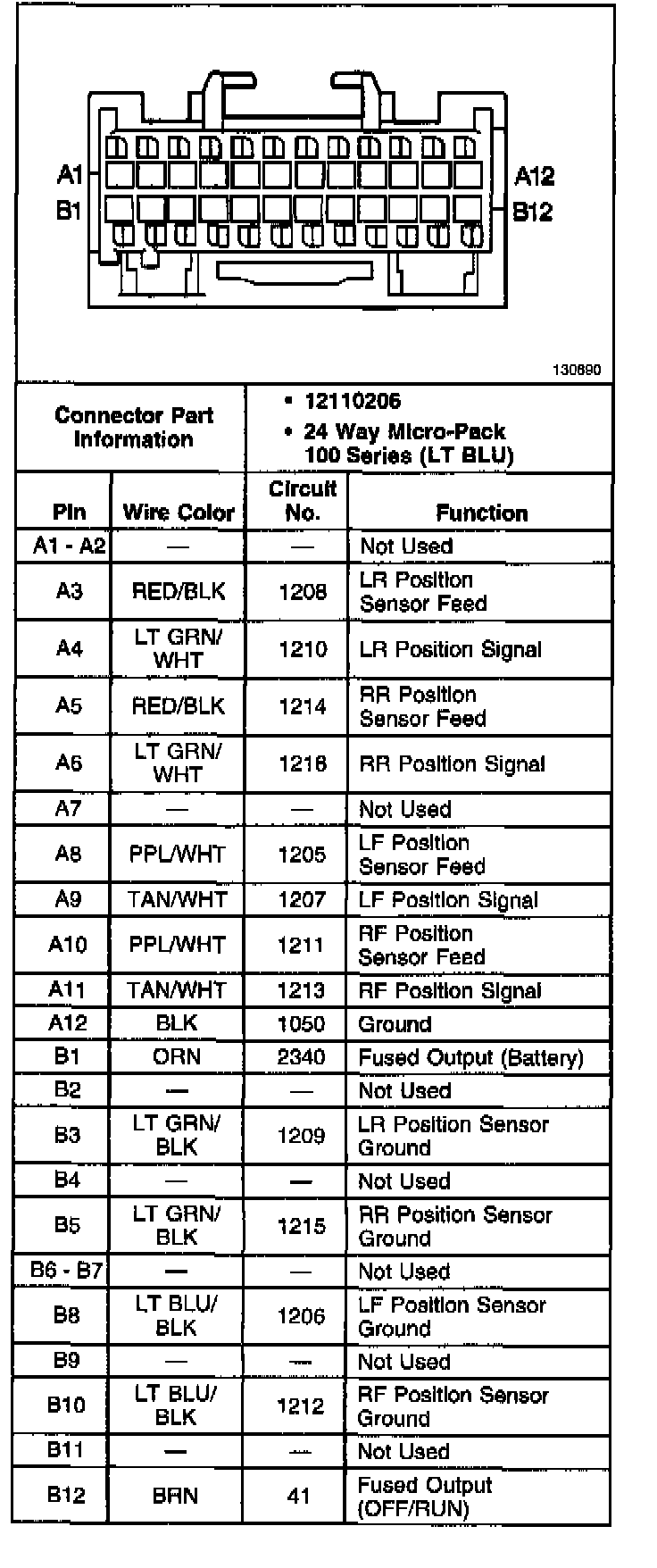

(CVRSS) Module Connector C2
