Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (LRDM) C1, LH Rear

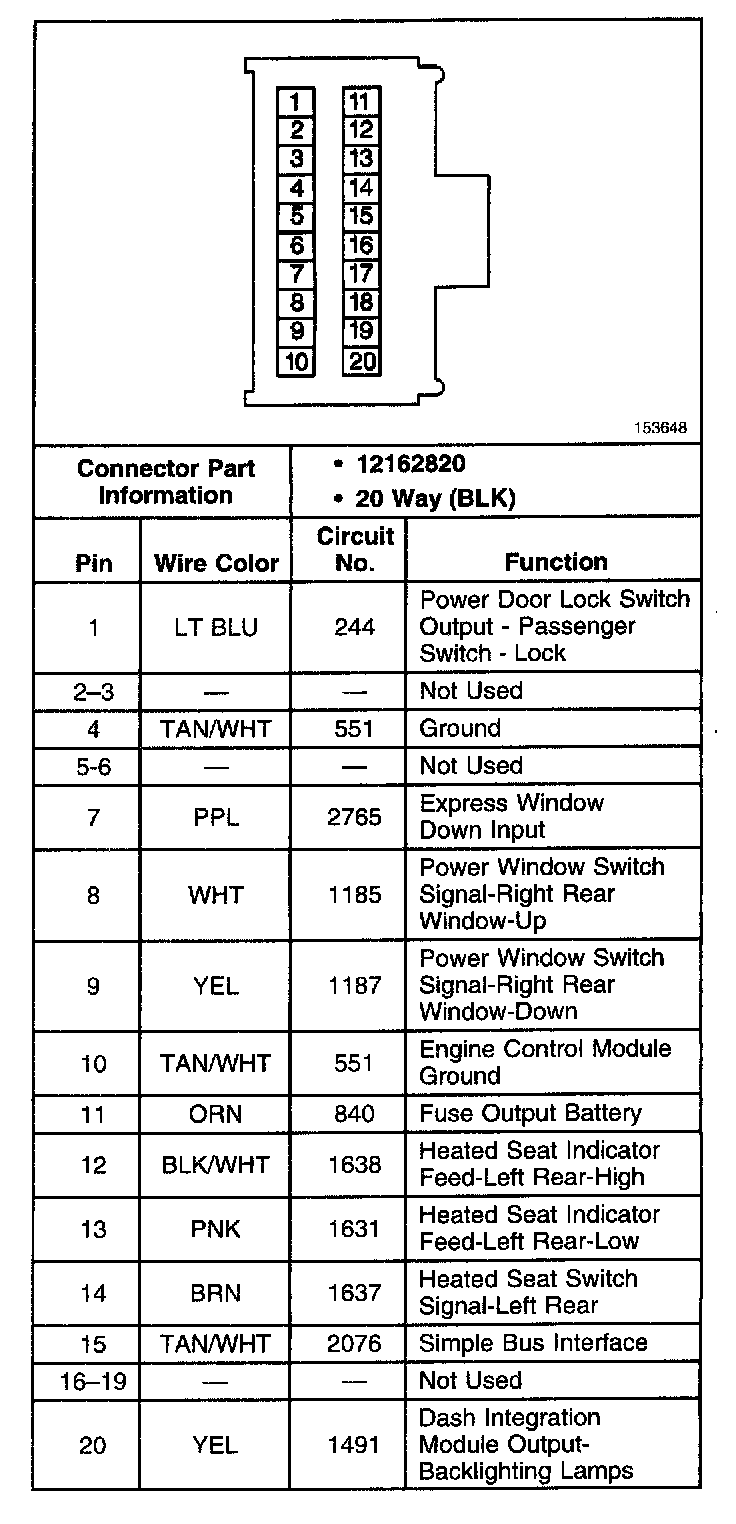

Door Module (LRDM) C1, LH Rear

Door Module (LRDM) C1, LH Rear:
