Integration Module (RIM), Rear
Integration Module (RIM), Rear

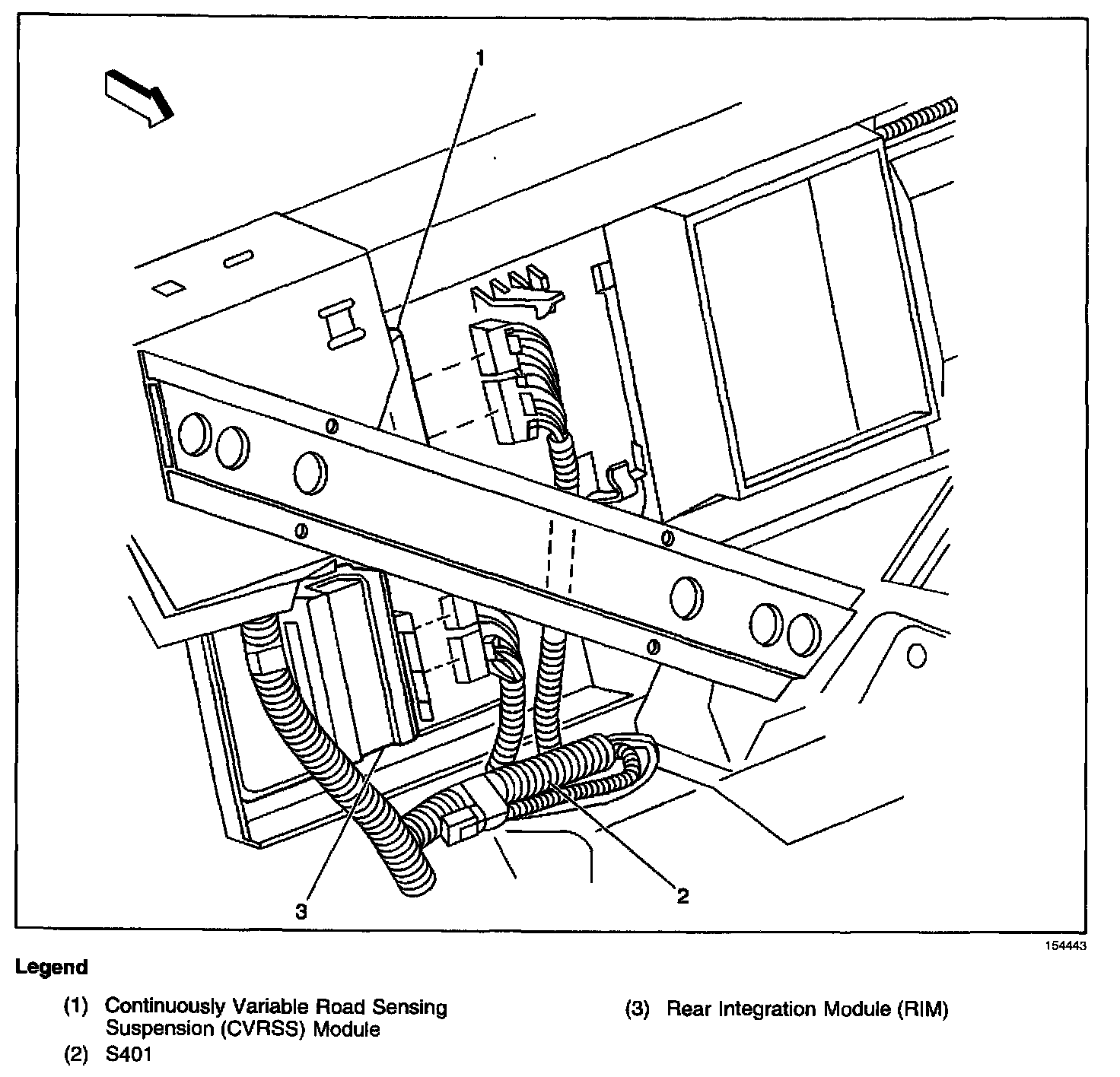

Locations View:
Right hand rear of the passenger compartment, behind the rear seat back
