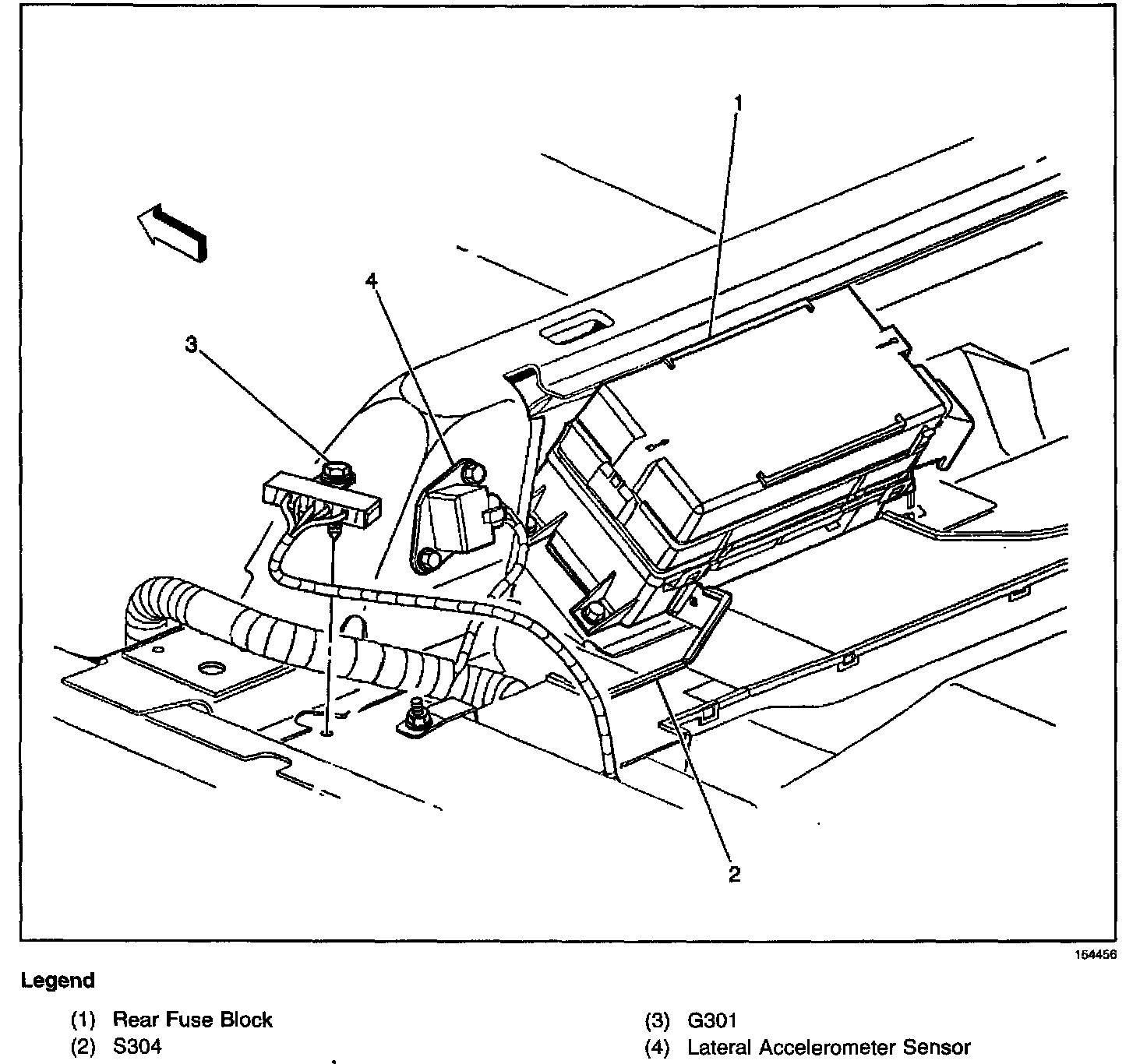

Fuse Block, Rear

Locations View:

Locations View:

Left hand rear of the passenger compartment, under the rear seat below the Rear Relay Center

Left rear of the passenger compartment, under the rear seat
