Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams >> Electrical Diagrams >> Multifunction Lever and Cruise Module Power and Ground

Multifunction Lever and Cruise Module Power and Ground

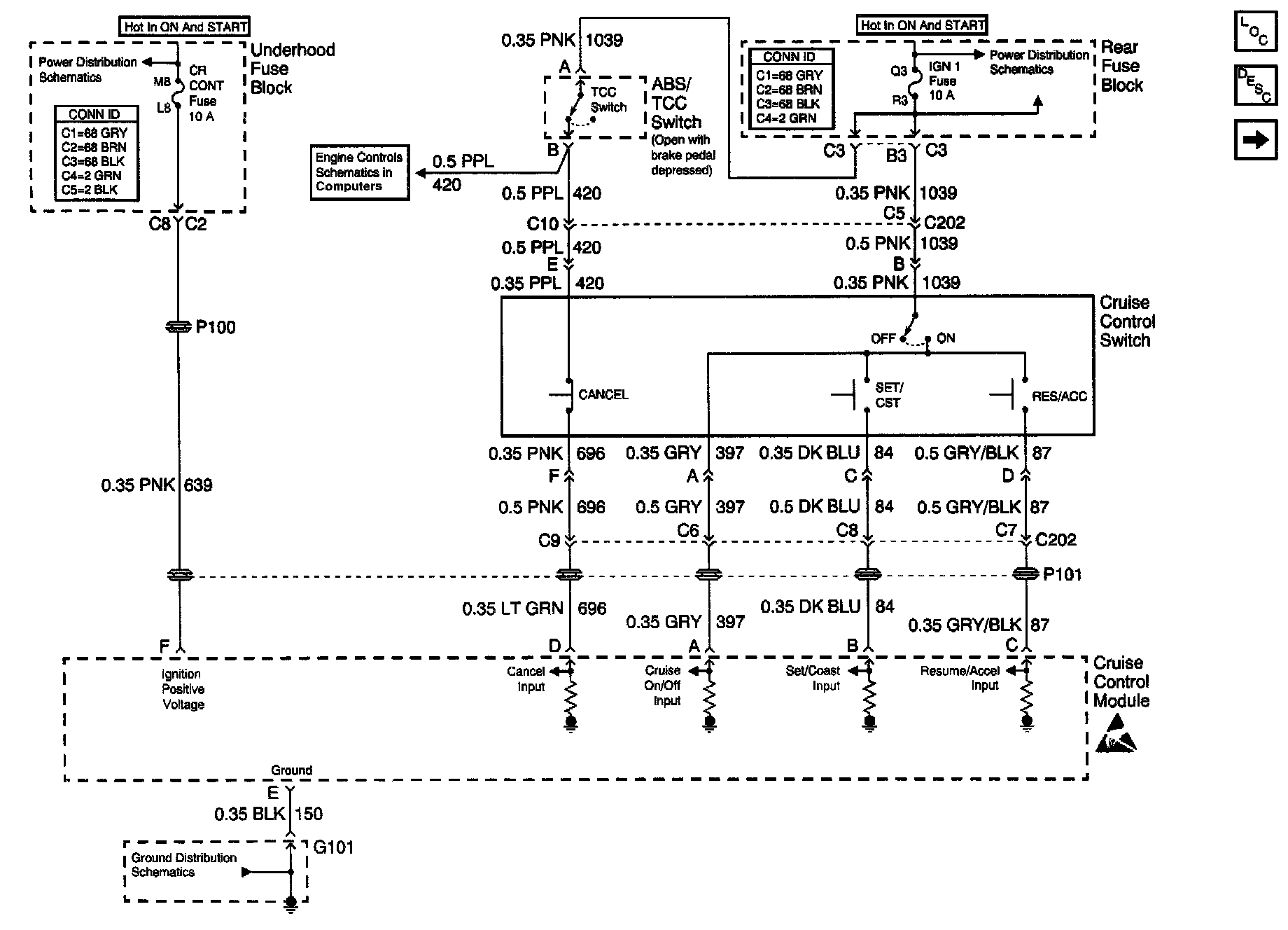

Cruise Control Schematics: Multifunction Lever And Cruise Module Power And Ground:
