Vehicle Speed Output and Cruise Control Module
Vehicle Speed Output and Cruise Control Module

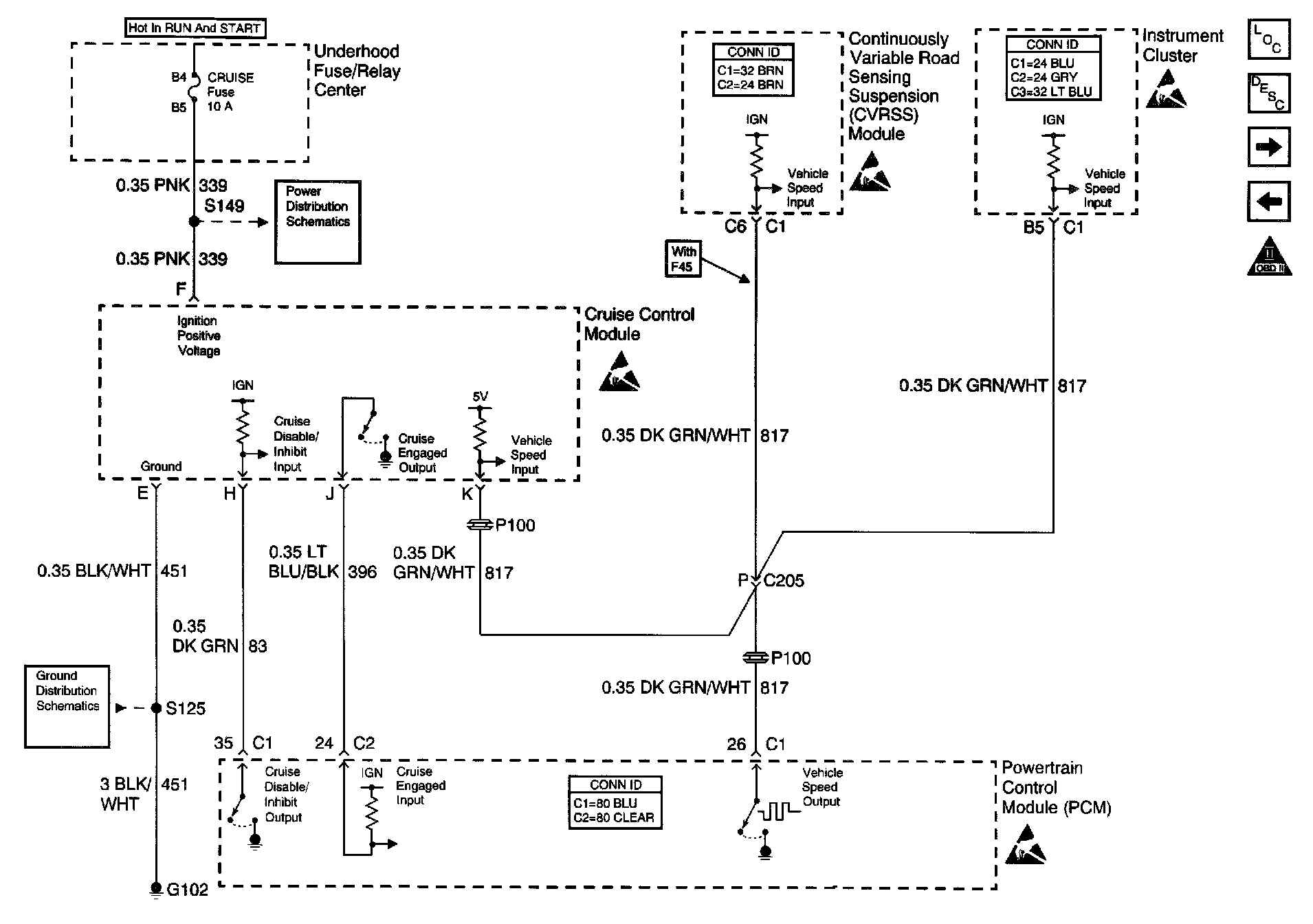

Engine Controls Schematics: Vehicle Speed Output and Cruise Control Module:
