Instrument Panel Control Module: Diagrams

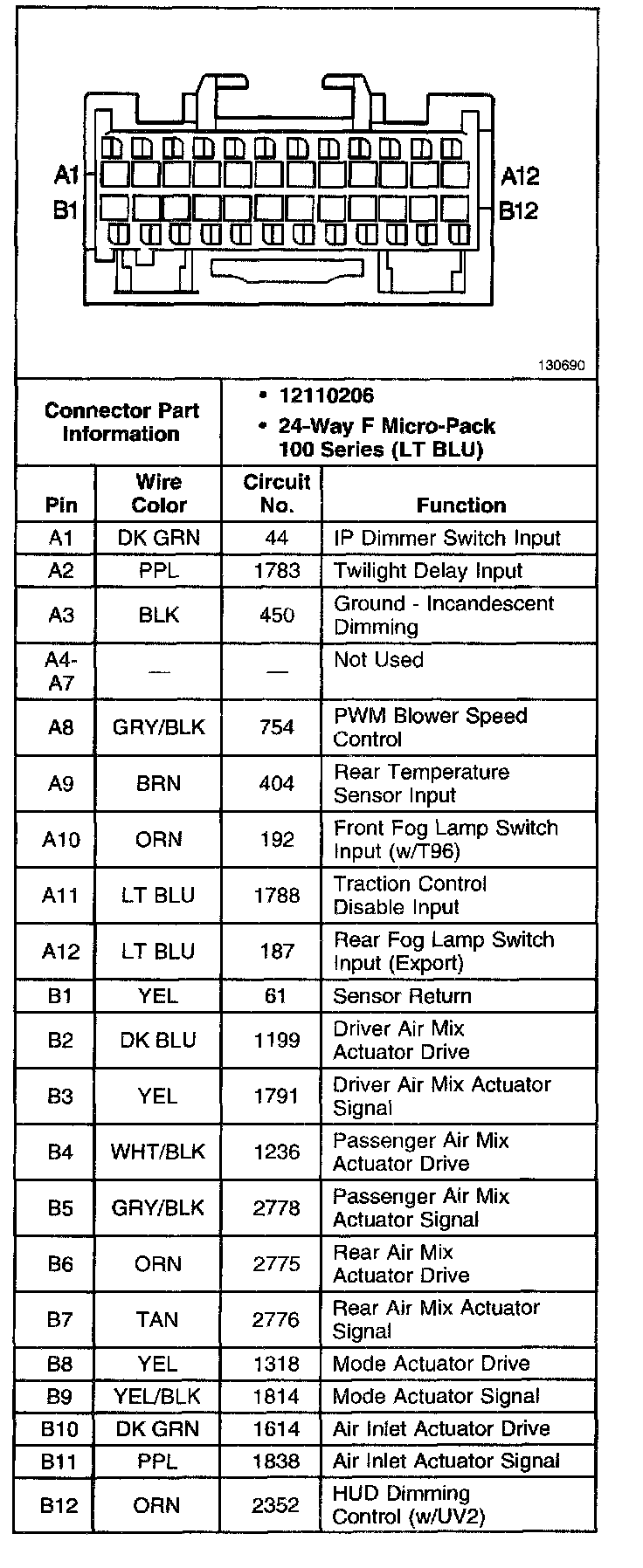

Instrument Panel Integration Module (IPM) C1:

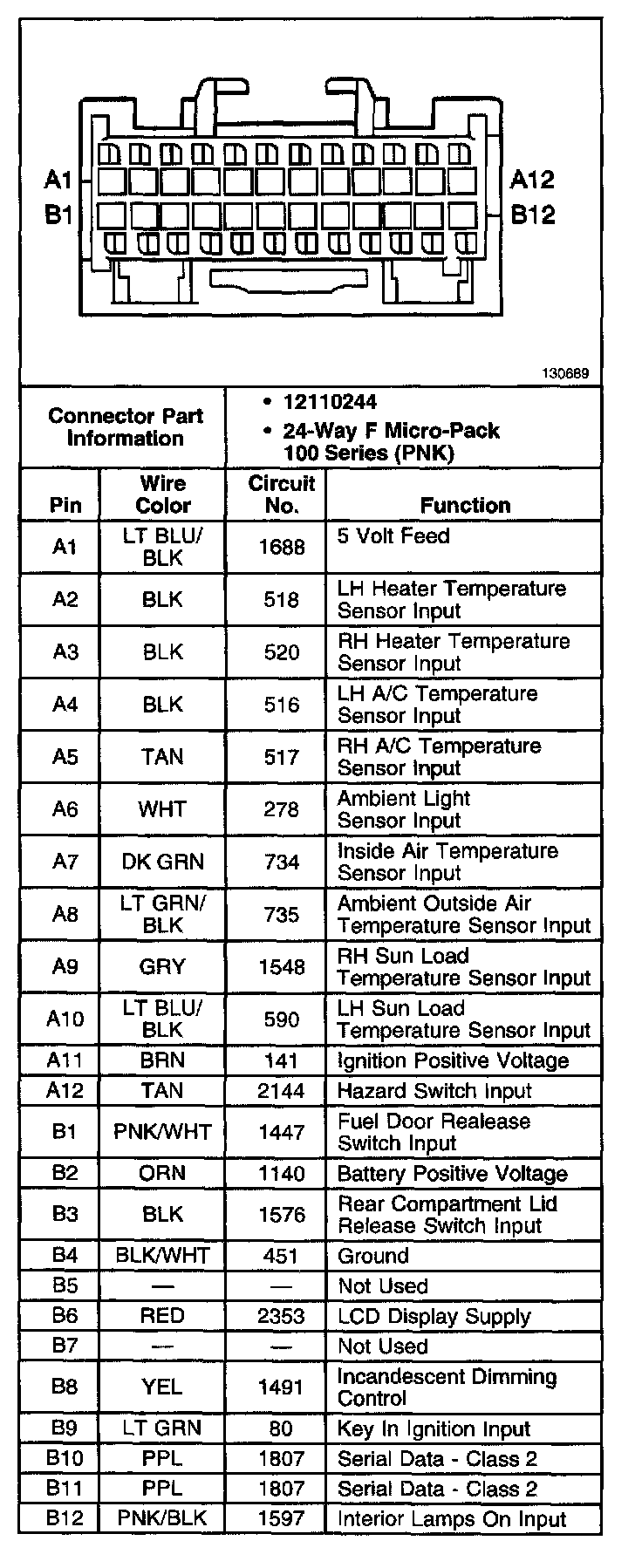

Instrument Panel Integration Module (IPM) C2:
