Ignition Control (IC) Module Front Bank

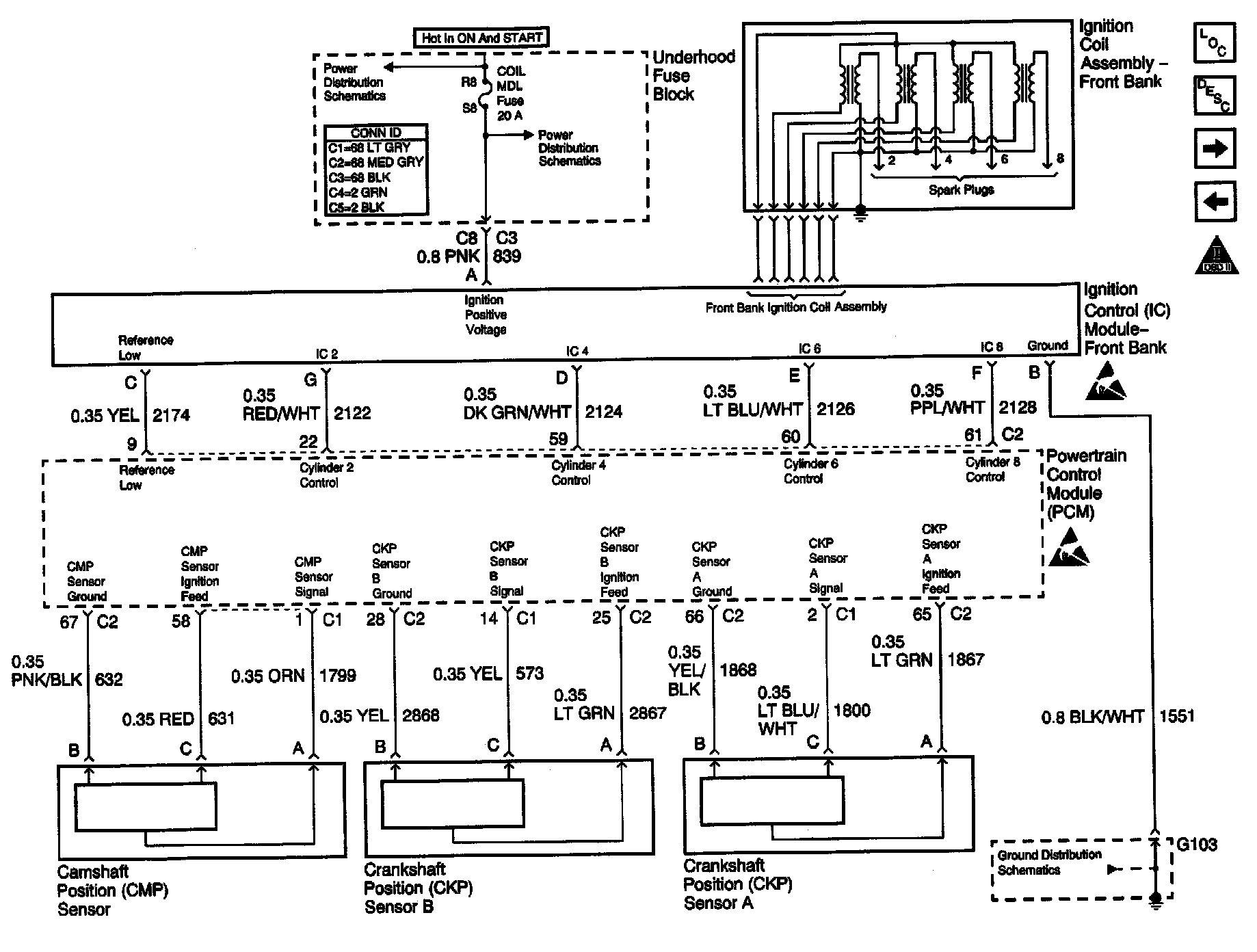

Engine Control Schematics: Ignition Control Module-Front Bank:
