Instrument Panel Integration Module (IPM)
>>
Power, Ground And Serial Data
Power, Ground And Serial Data

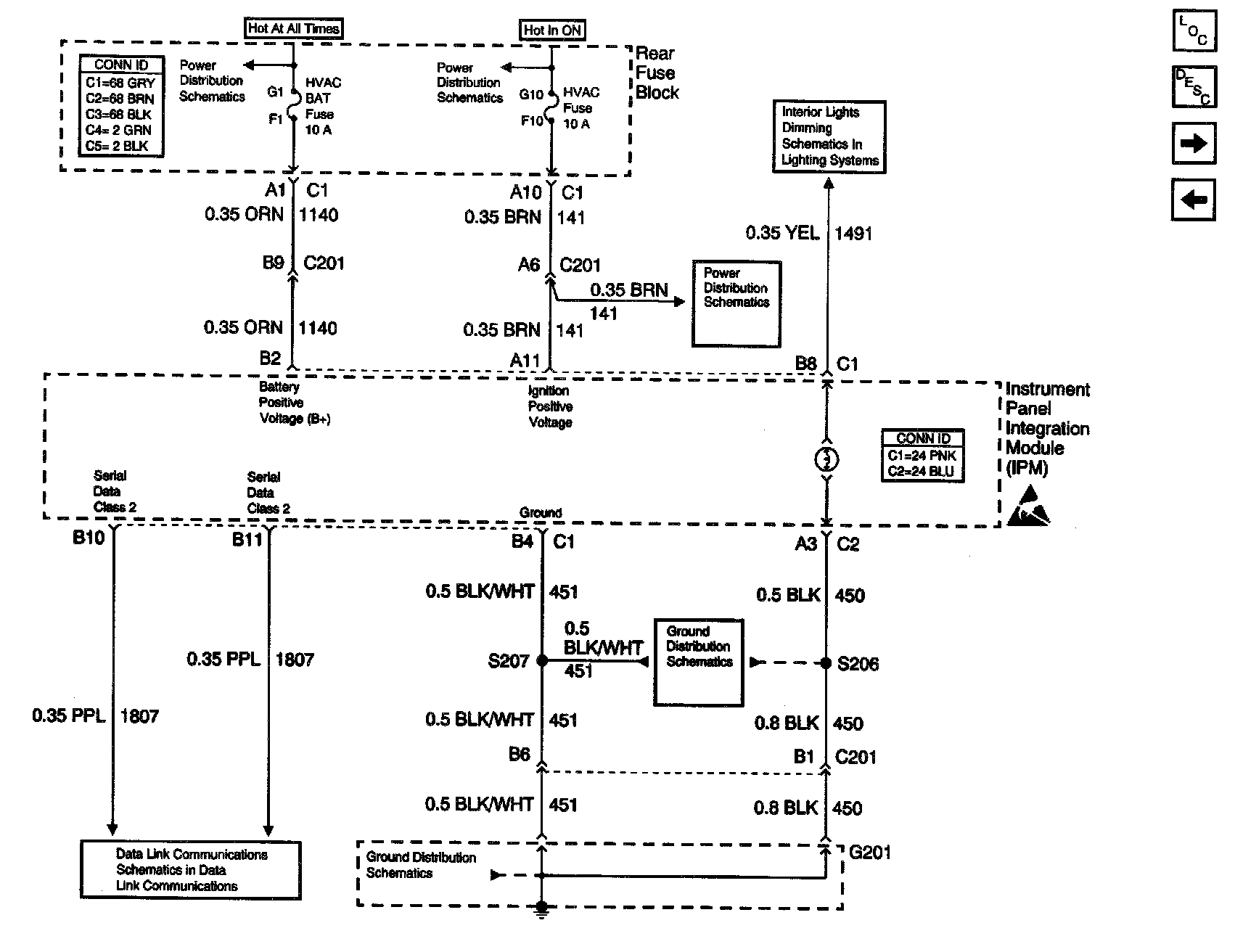

Body Control Module Schematics: Instrument Panel Integration Module (IPM) - Power, Ground And Serial Data:
