C2

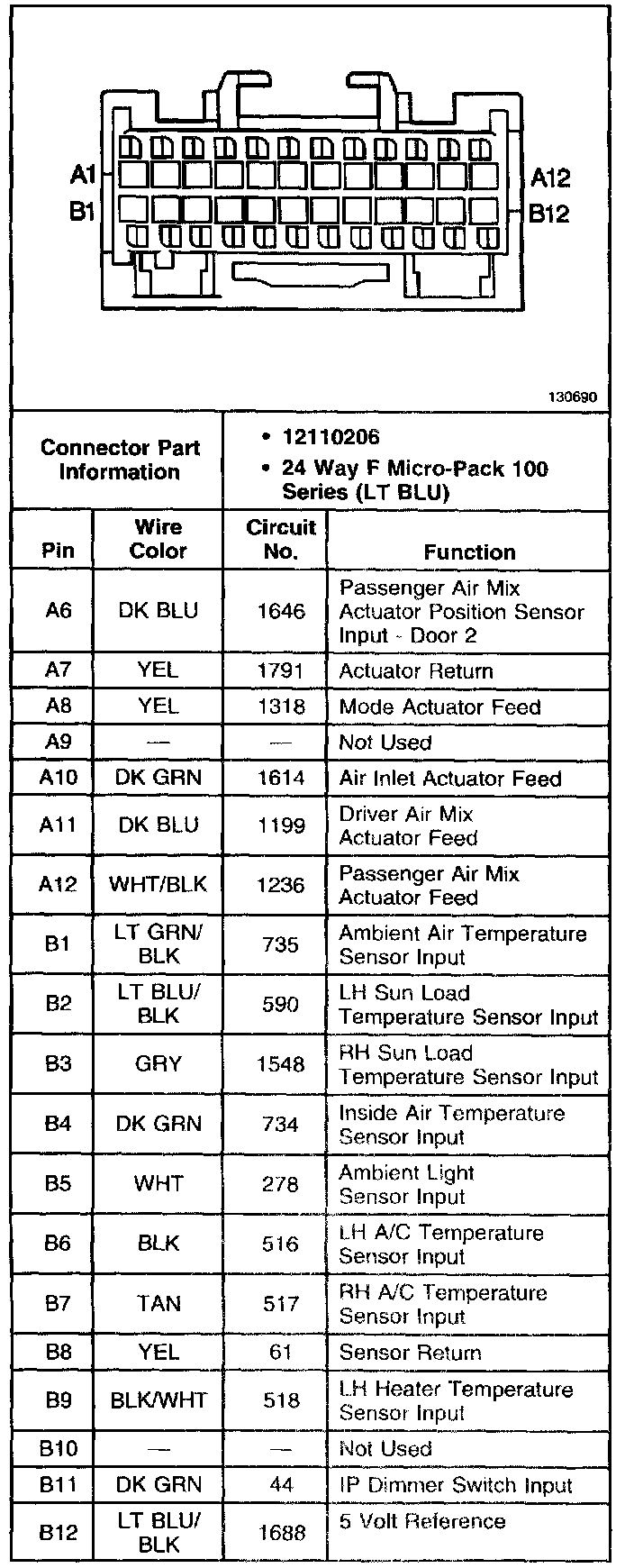

Instrument Panel Integration Module (IPM) : C2 (Part 1 of 2):



Instrument Panel Integration Module (IPM) : C2 (Part 2 of 2):
