Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Diagrams >> Instrument Panel Integration Module (Ipm) >> C1

C1

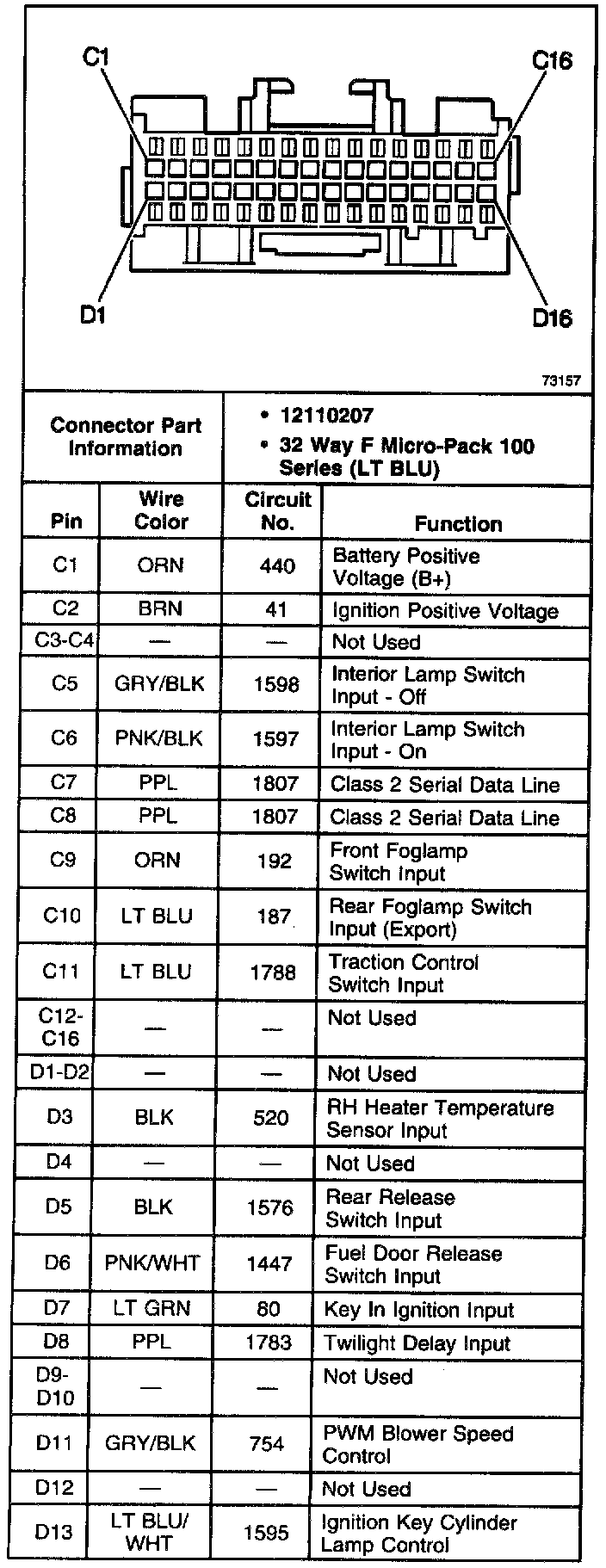

Instrument Panel Integration Module (IPM) : C1 (Part 1 of 2):



Instrument Panel Integration Module (IPM) : C1 (Part 2 of 2):
