DIM Inputs and Outputs

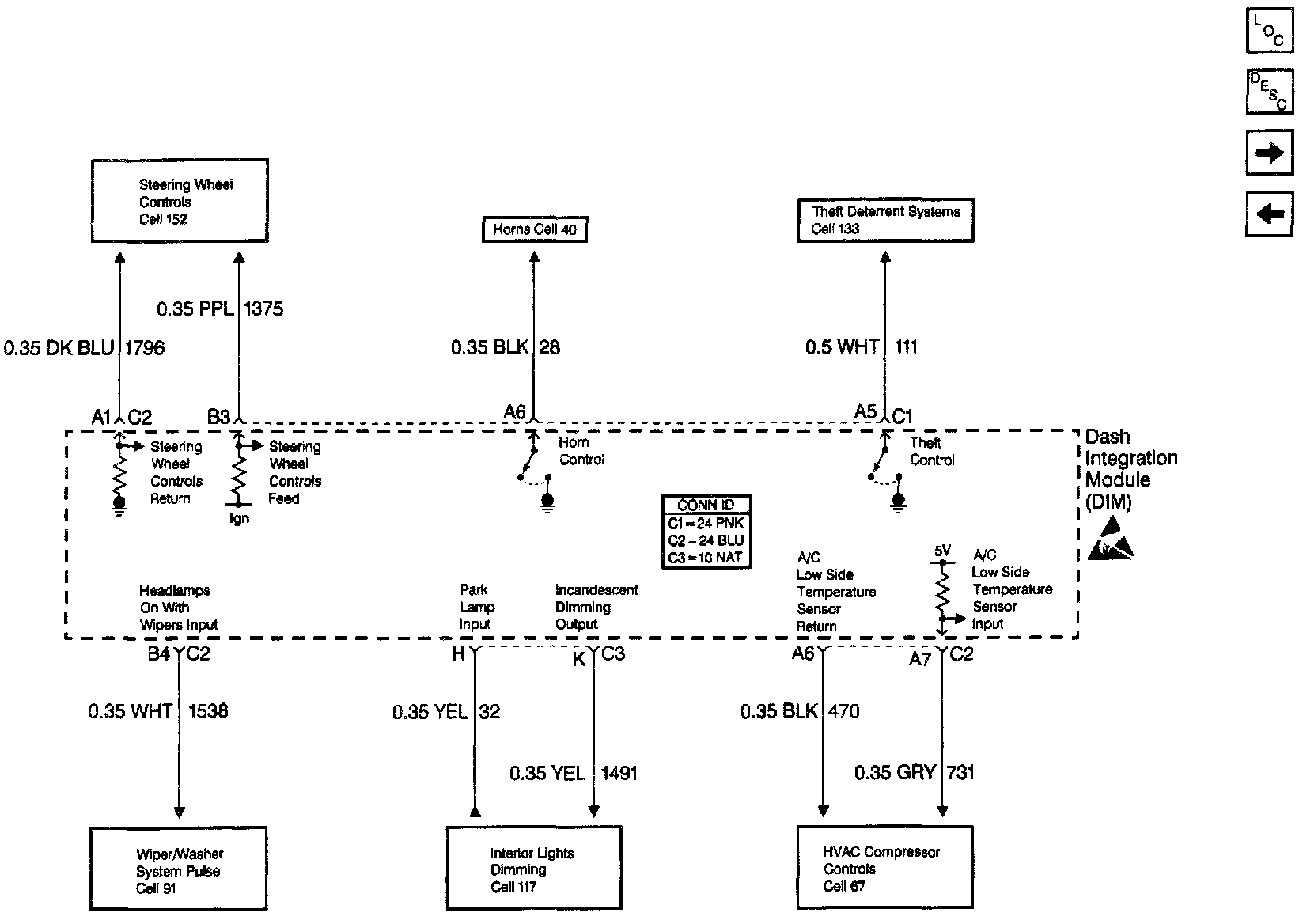

Body Control Module Schematics: DIM Inputs And Outputs:

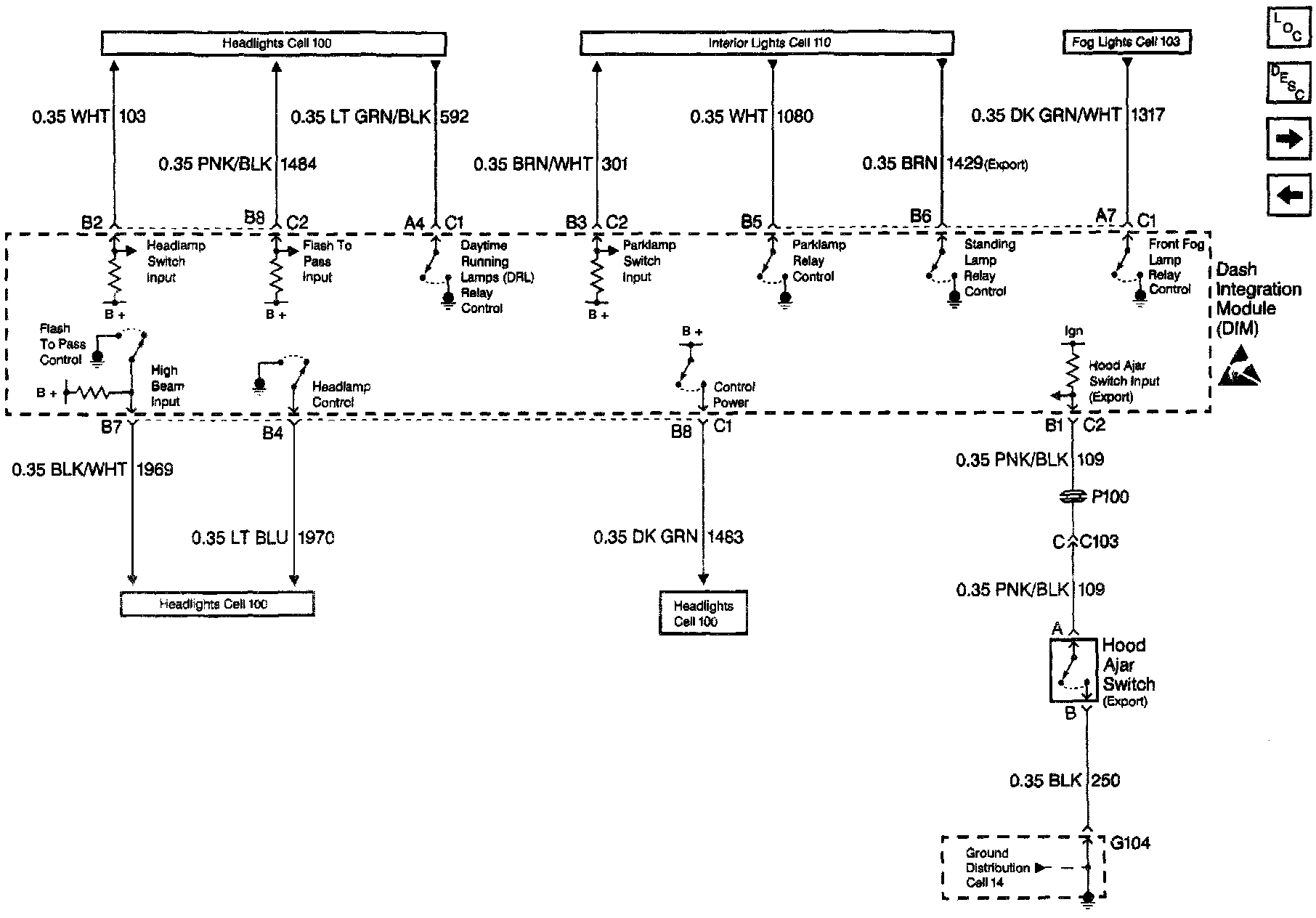

Body Control Module Schematics: DIM Inputs And Outputs:
