Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>
Memory Seat Module (Msm)
>>
AC9
AC9

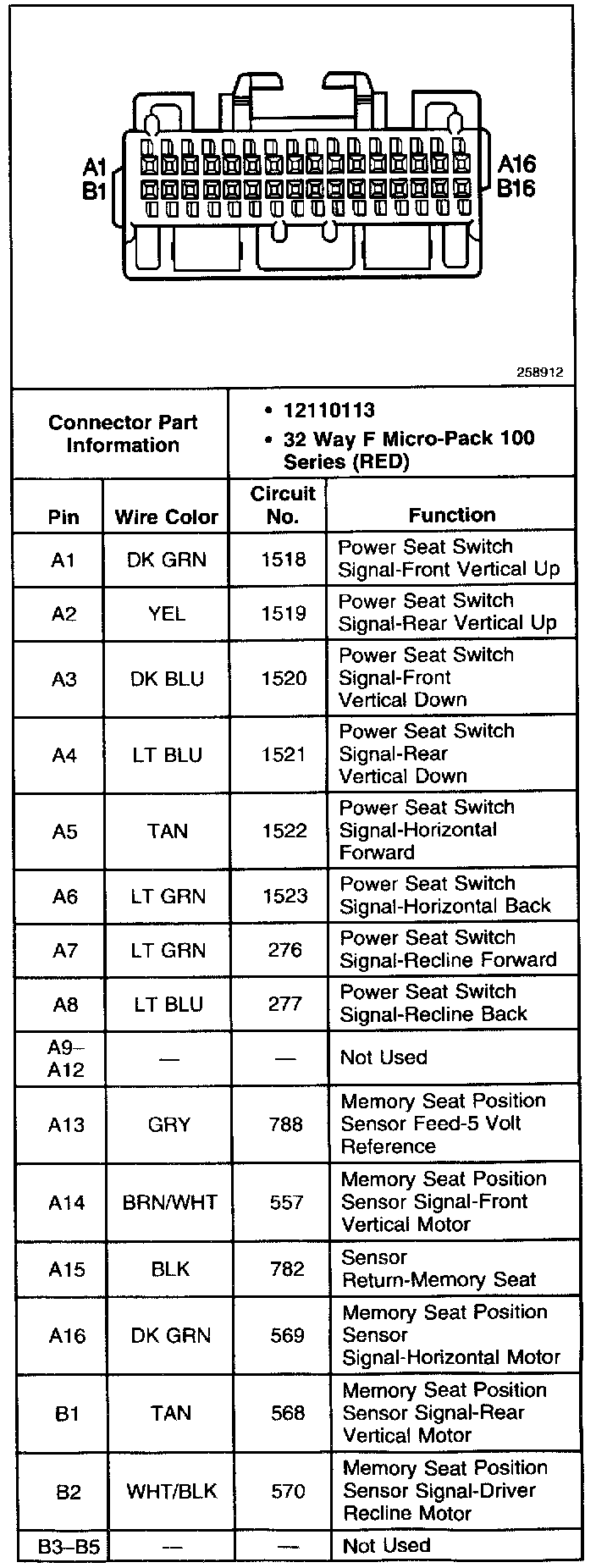

Memory Seat Module (MSM) (AC9): C2 (Part 1 of 2):

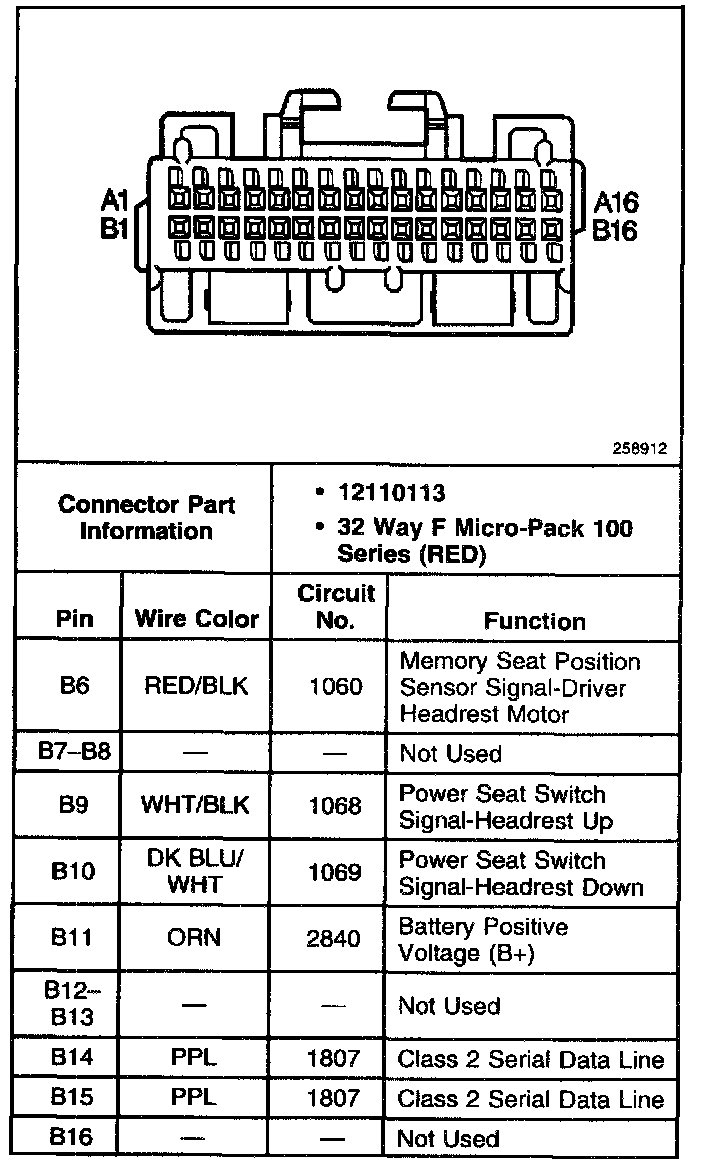

Memory Seat Module (MSM) (AC9): C2 (Part 2 of 2):
