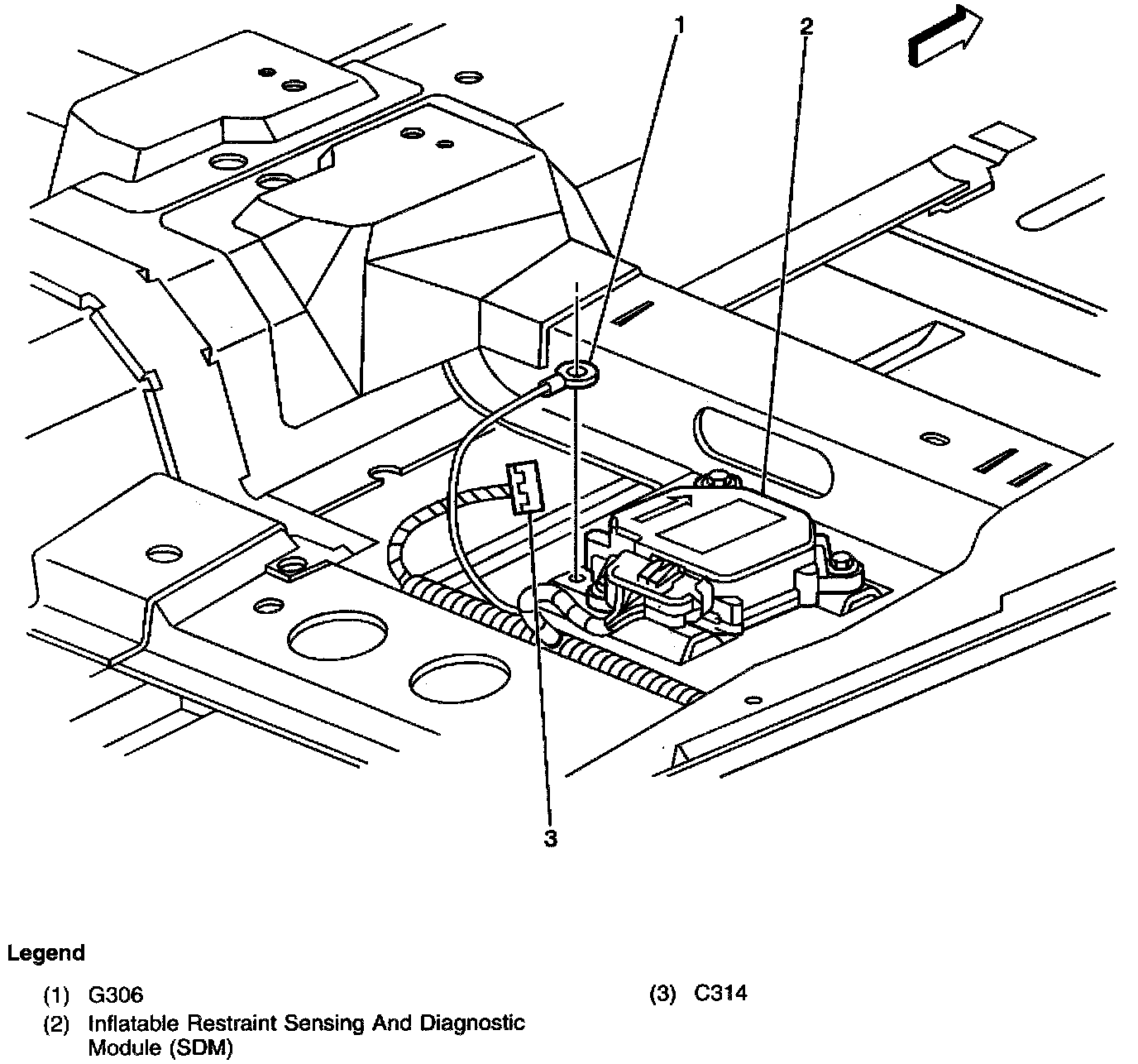

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Passenger Compartment, Under The RH Seat:





Under the right hand front seat, near the number two bar
