Engine Control Module: Specifications

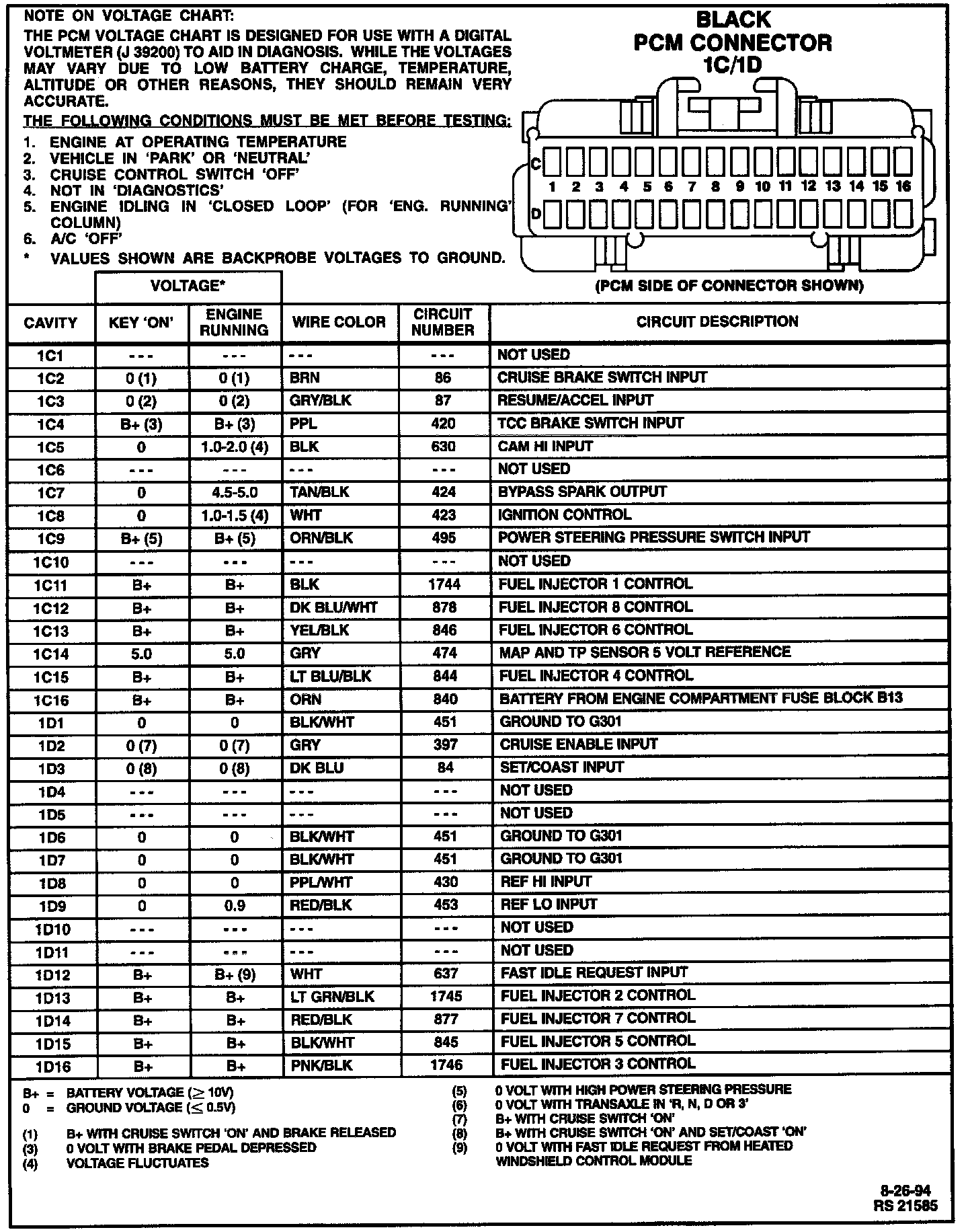

PCM Connector Pin-Out:

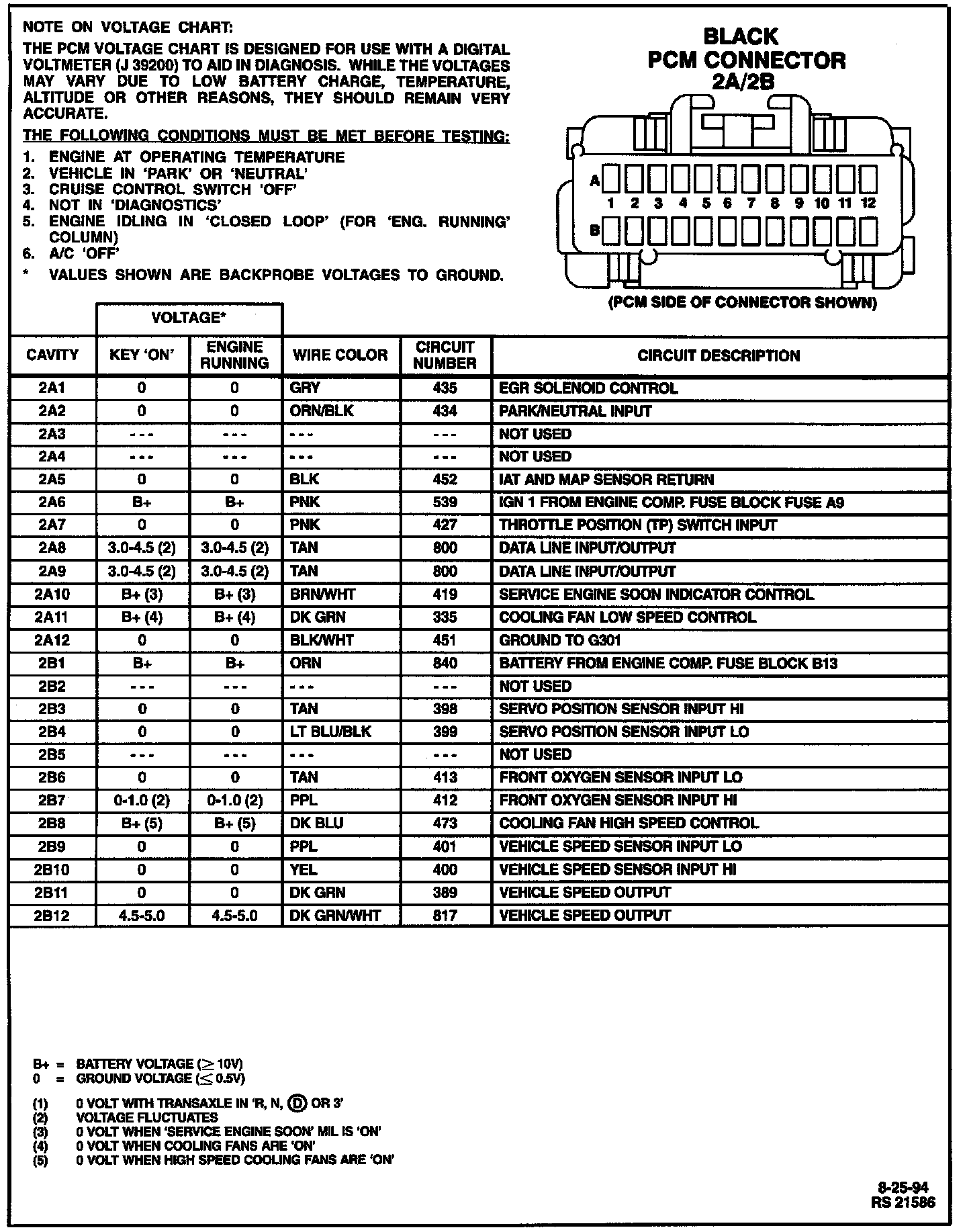

PCM Connector Pin-Out:

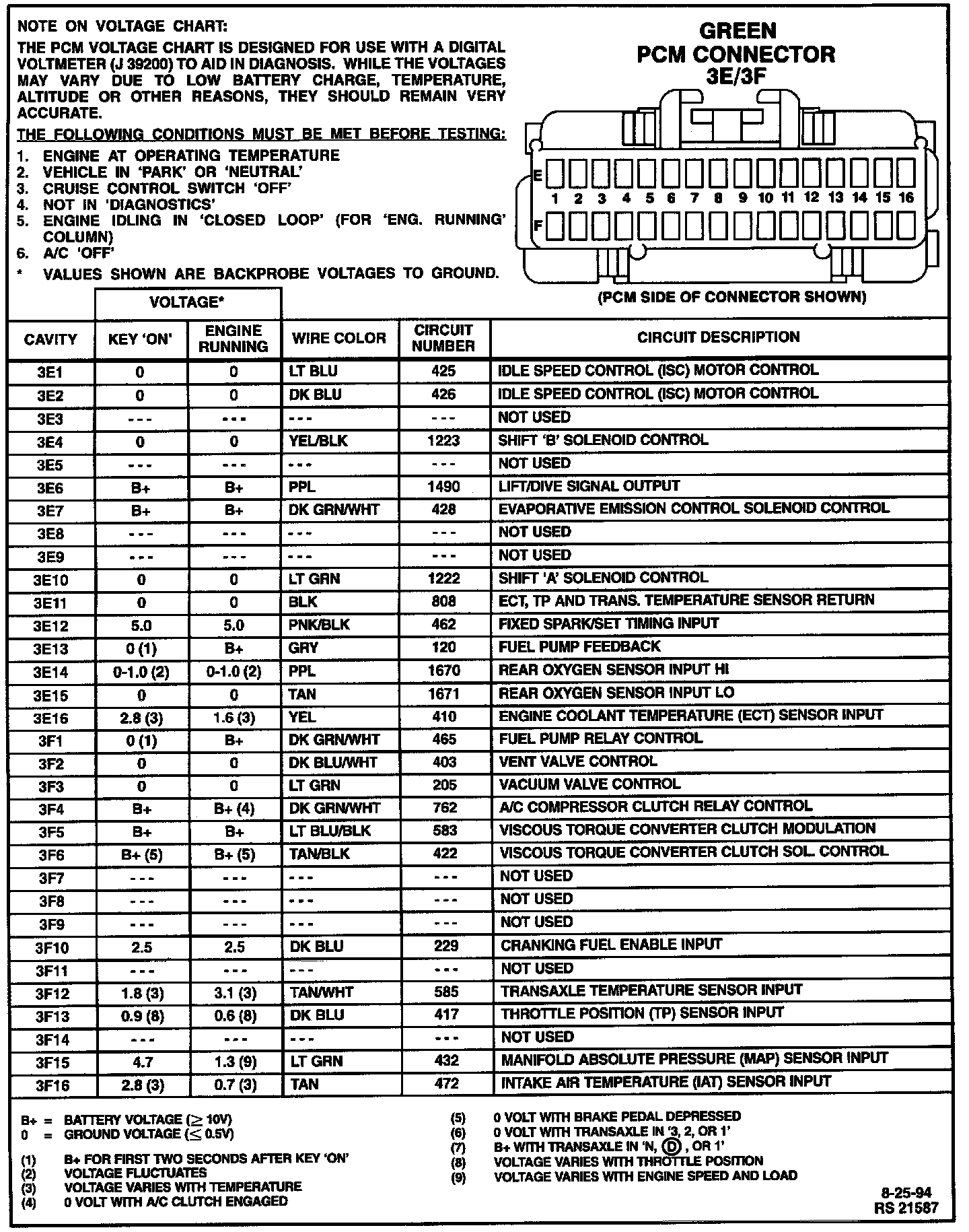

PCM Connector Pin-Out:
