Throttle Position Sensor
>>
Locations
>>

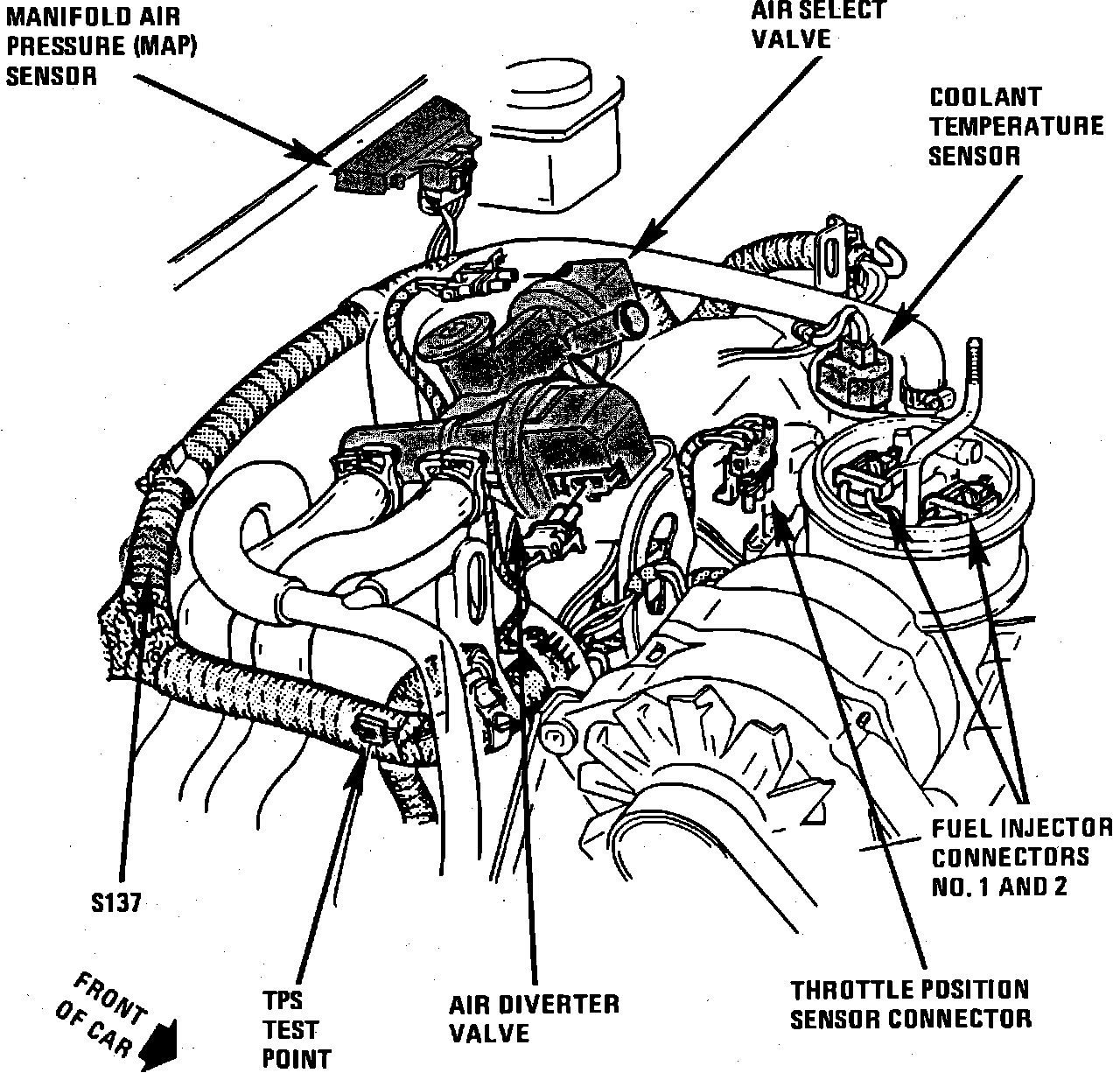

Throttle Position Sensor Test Point
Throttle Position Sensor Test Point
Top RH Side:
Taped To Harness, Behind Generator
Applicable to: 8L Engine. DeVille & Fleetwood
