Home >> Cadillac Truck >> 2010 >> SRX AWD V6-2.8L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

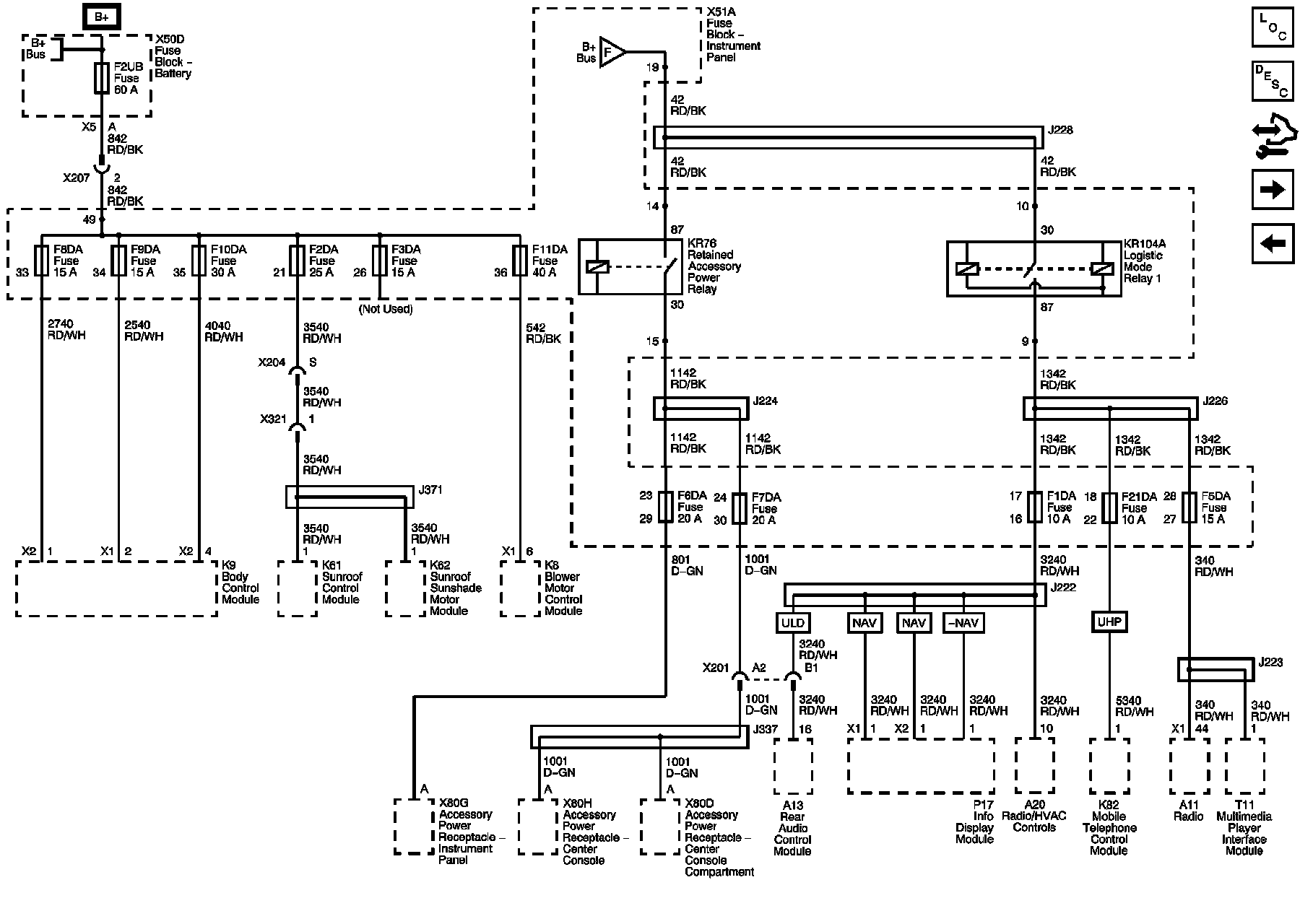

Power Distribution Schematics

F2UB, F1DA, F2DA, F3DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, D21DA, and F22DA Fuses
