Scan Tool Data List - Antitheft System
Dash Integration Modules (DIM):
Driver Door Module (DDM):
Engine Control Module (ECM):

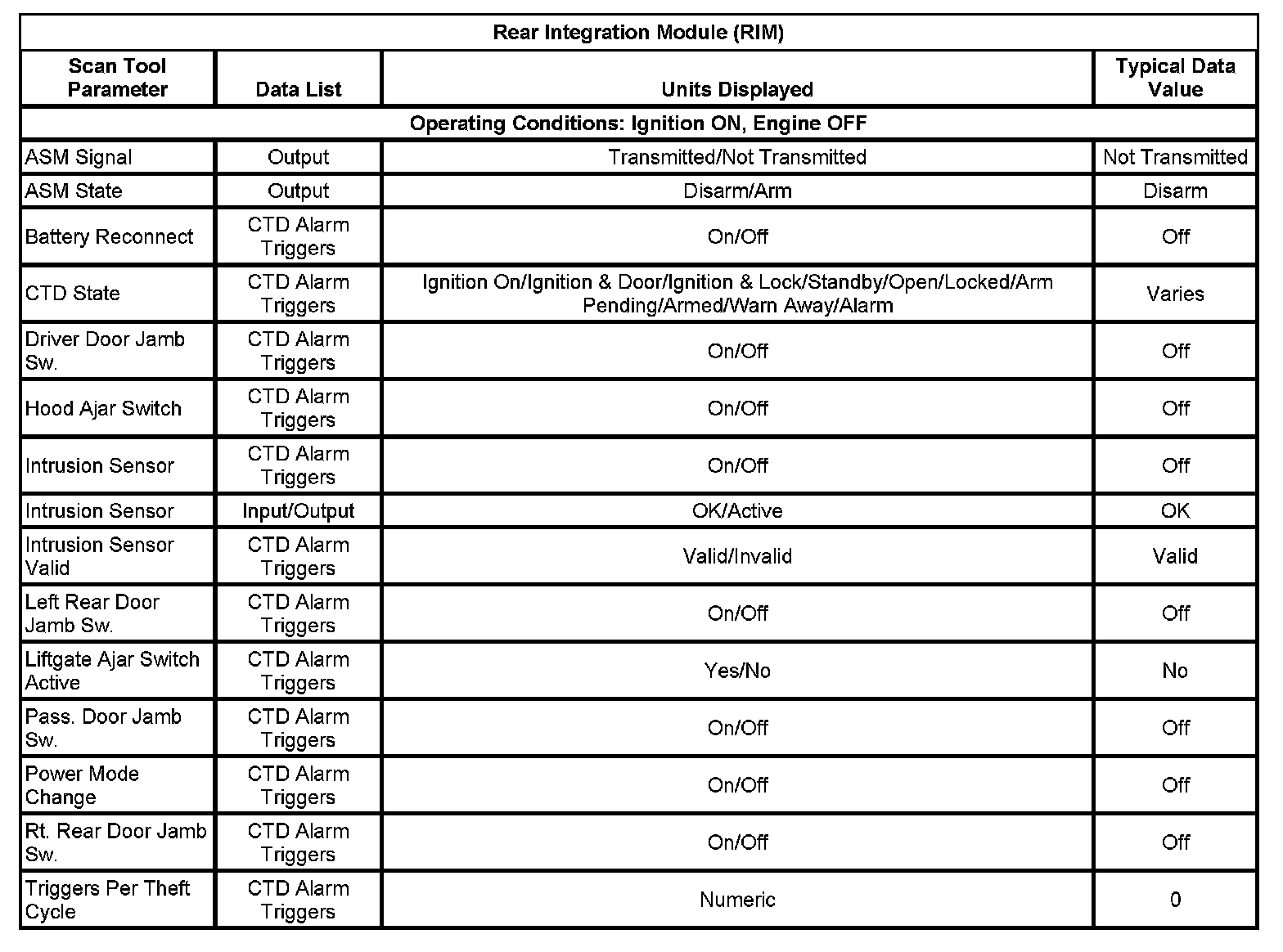

Rear Integration Module (RIM):

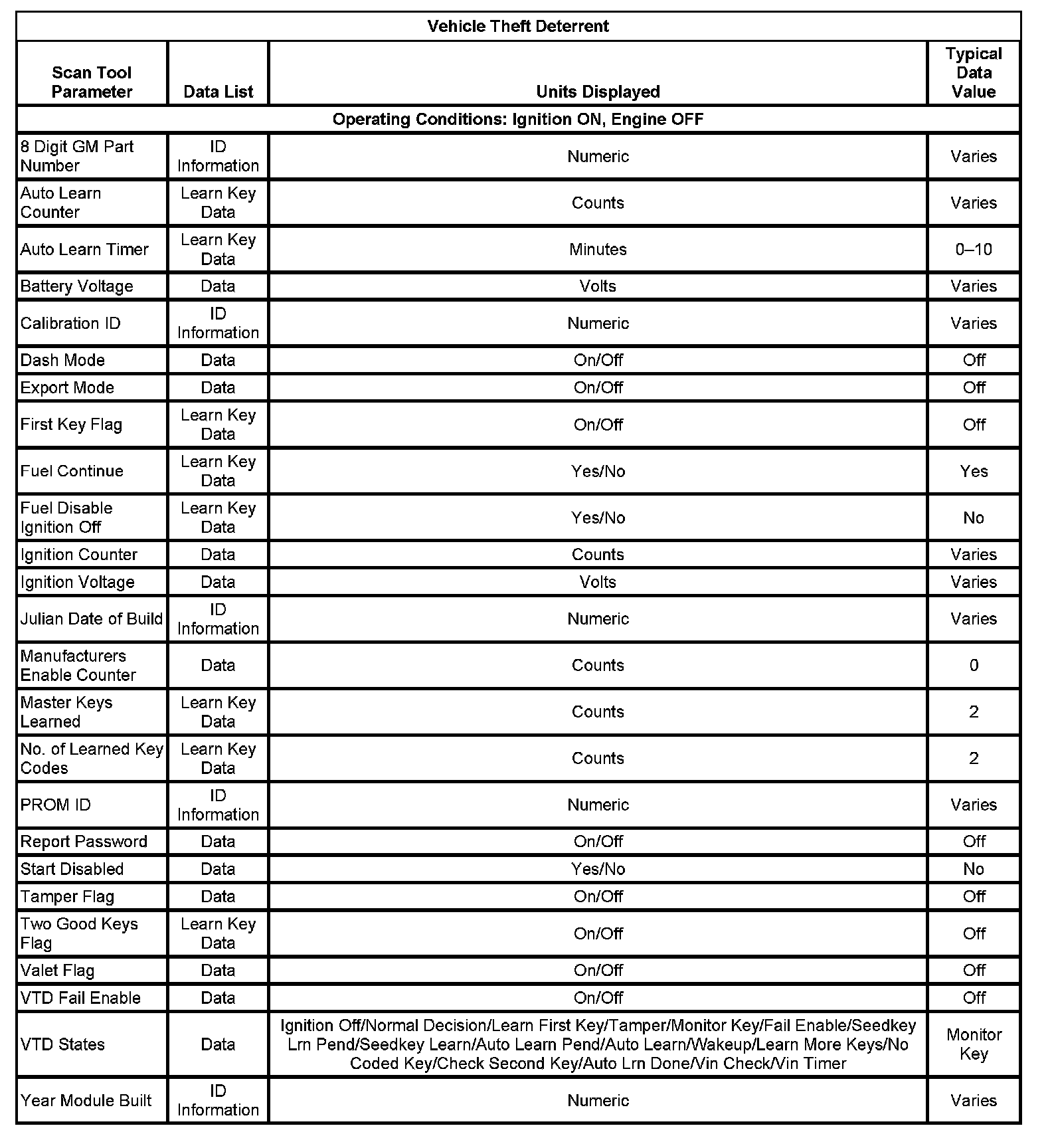

Vehicle Theft Deterrent:
