Home >> Cadillac Truck >> 1999 >> Escalade V8-5.7L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations >> Component Locations >> Transfer Case Control Module (TCCM)

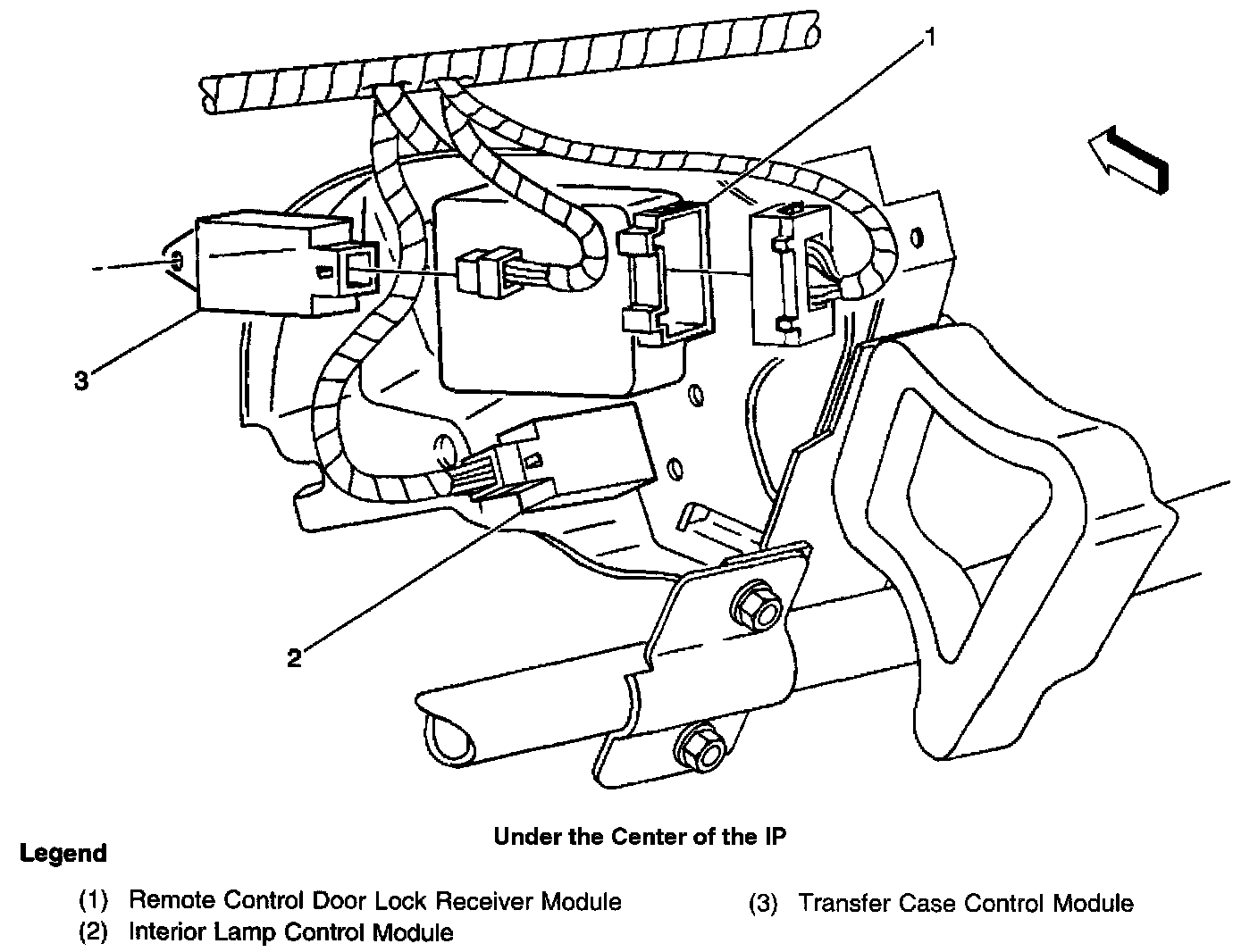

Transfer Case Control Module (TCCM)

Interior Lamp Control Module:





Under IP, on Steering Column Support Bracket
