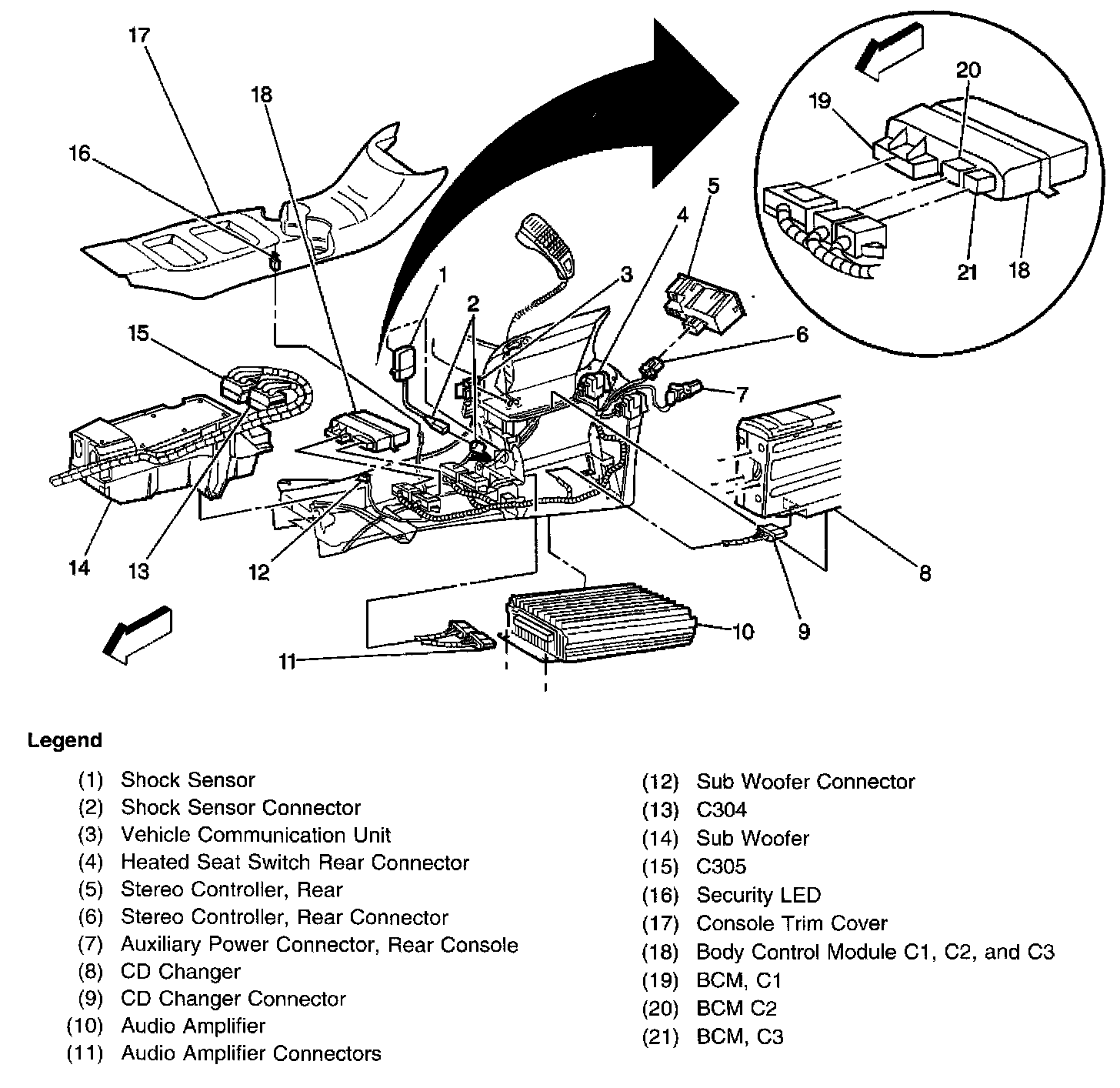

BODY CONTROL MODULE (BCM) LUXURY MODEL
Body Control Module (Luxury):
The Body Control Module is located in the center floor console.
