Air Cleaner Lower Housing Replacement

Air Cleaner Lower Housing Replacement

Removal Procedure

1. Remove the air cleaner upper housing. Refer to Air Cleaner Upper Housing Replacement Air Cleaner Upper Housing Replacement.

2. Remove the air cleaner element. Refer to Air Cleaner Element Replacement Service and Repair.

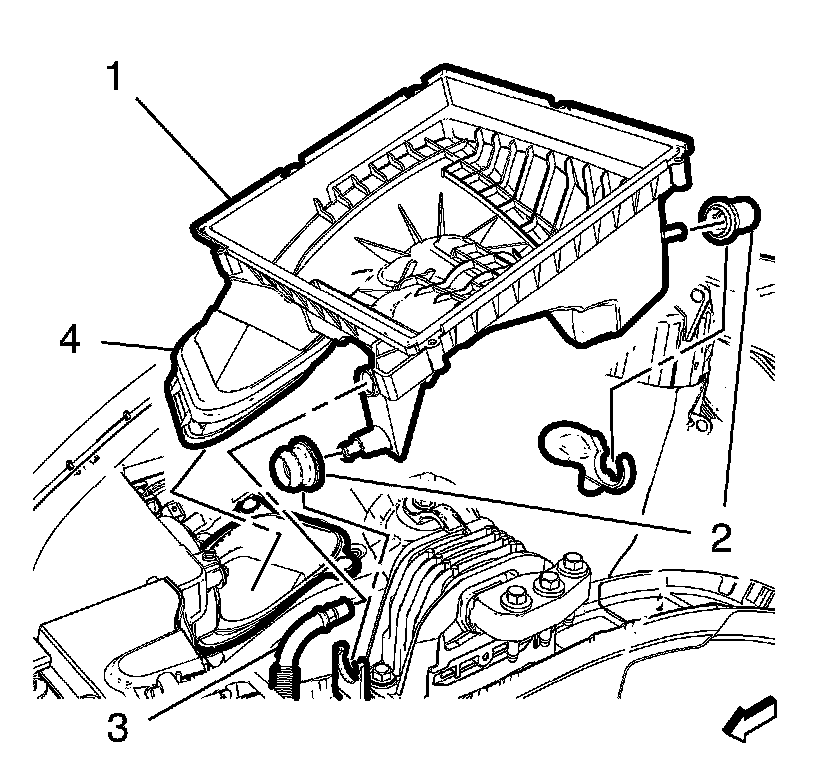

3. Unclip the water drain hose (3) from the air cleaner lower housing (1) if equipped.

4. Remove the air cleaner lower housing (1) from the air cleaner brackets.

5. Remove the air cleaner bracket insulators (2) from the air cleaner lower housing (1).

6. Remove the air cleaner insulator (4) from the air cleaner lower housing (1).

Installation Procedure




1. Install the air cleaner insulator (4) to the air cleaner lower housing (1).

2. Install the air cleaner bracket insulators (2) to the air cleaner lower housing (1).

3. Install the air cleaner lower housing (1) to the air cleaner brackets.

4. Install the water drain hose (3) to the air cleaner lower housing (1) if equipped.

5. Install the air cleaner element. Refer to Air Cleaner Element Replacement Service and Repair.

6. Install the air cleaner upper housing. Refer to Air Cleaner Upper Housing Replacement Air Cleaner Upper Housing Replacement.
