Home >> Buick >> 2006 >> Lucerne V8-4.6L VIN Y >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Driver Position Module

Driver Position Module

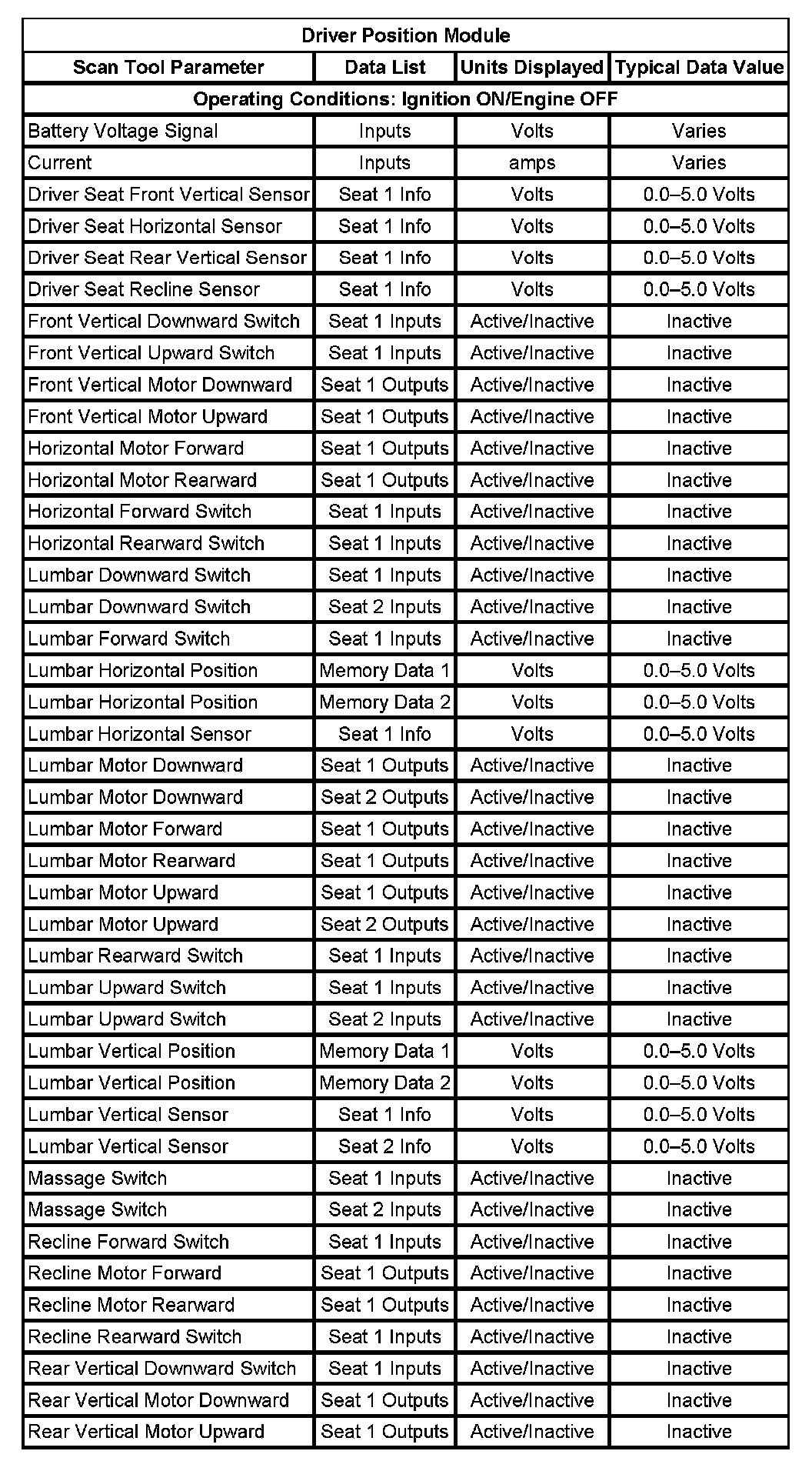

Driver Position Module (part 1):



Driver Position Module (part 2):
