Home >> Buick >> 2006 >> Lucerne V6-3.8L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> HVAC System - Manual

HVAC System - Manual

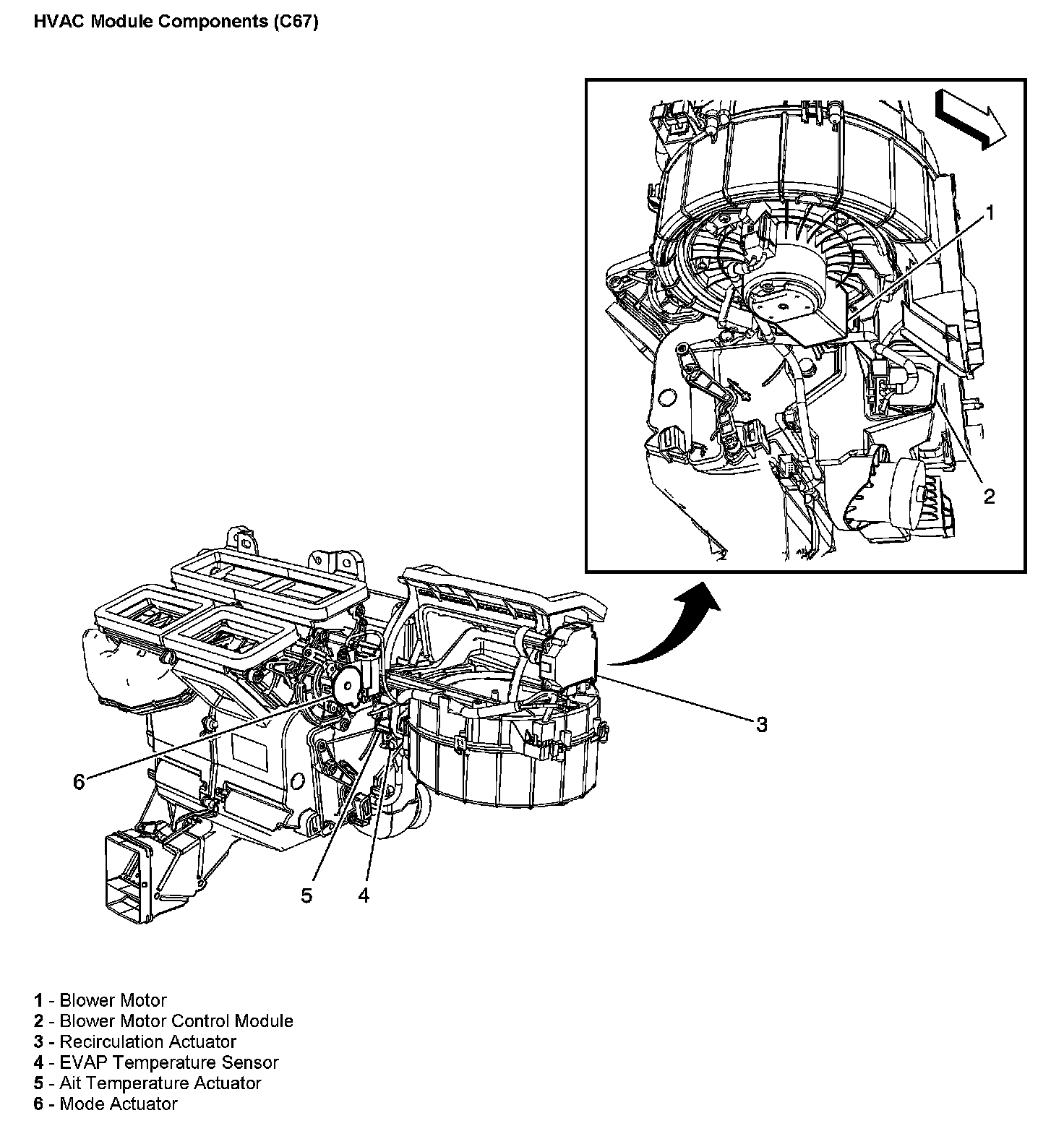

HVAC Module Components (With RPO Code C67):
