Home >> Buick >> 2006 >> Lucerne V6-3.8L VIN 2 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Diagrams >> Driver Position Module C5

Driver Position Module C5

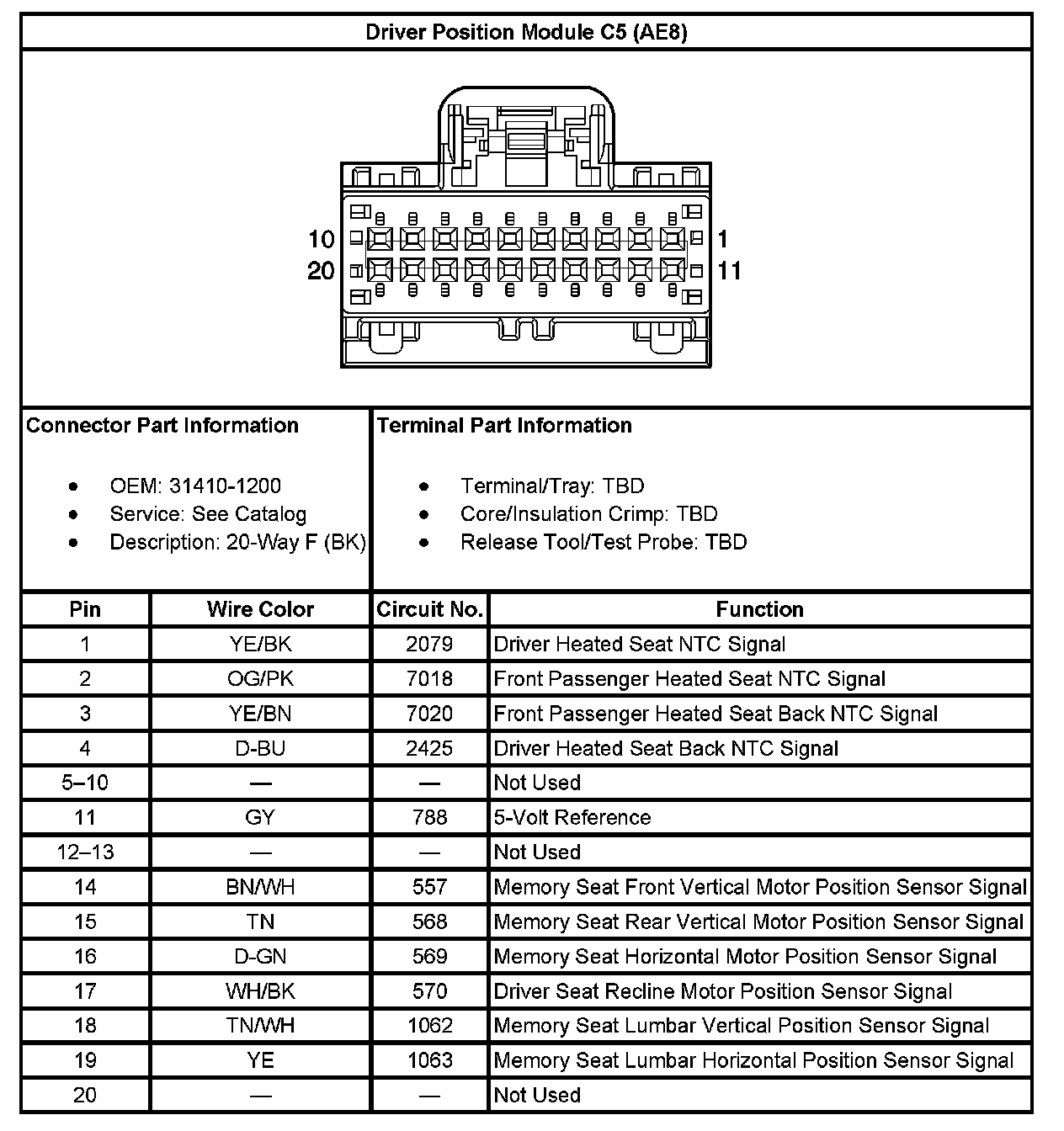

Driver Position Module C5 (With RPO Code AE8):
