Home >> Buick >> 2005 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

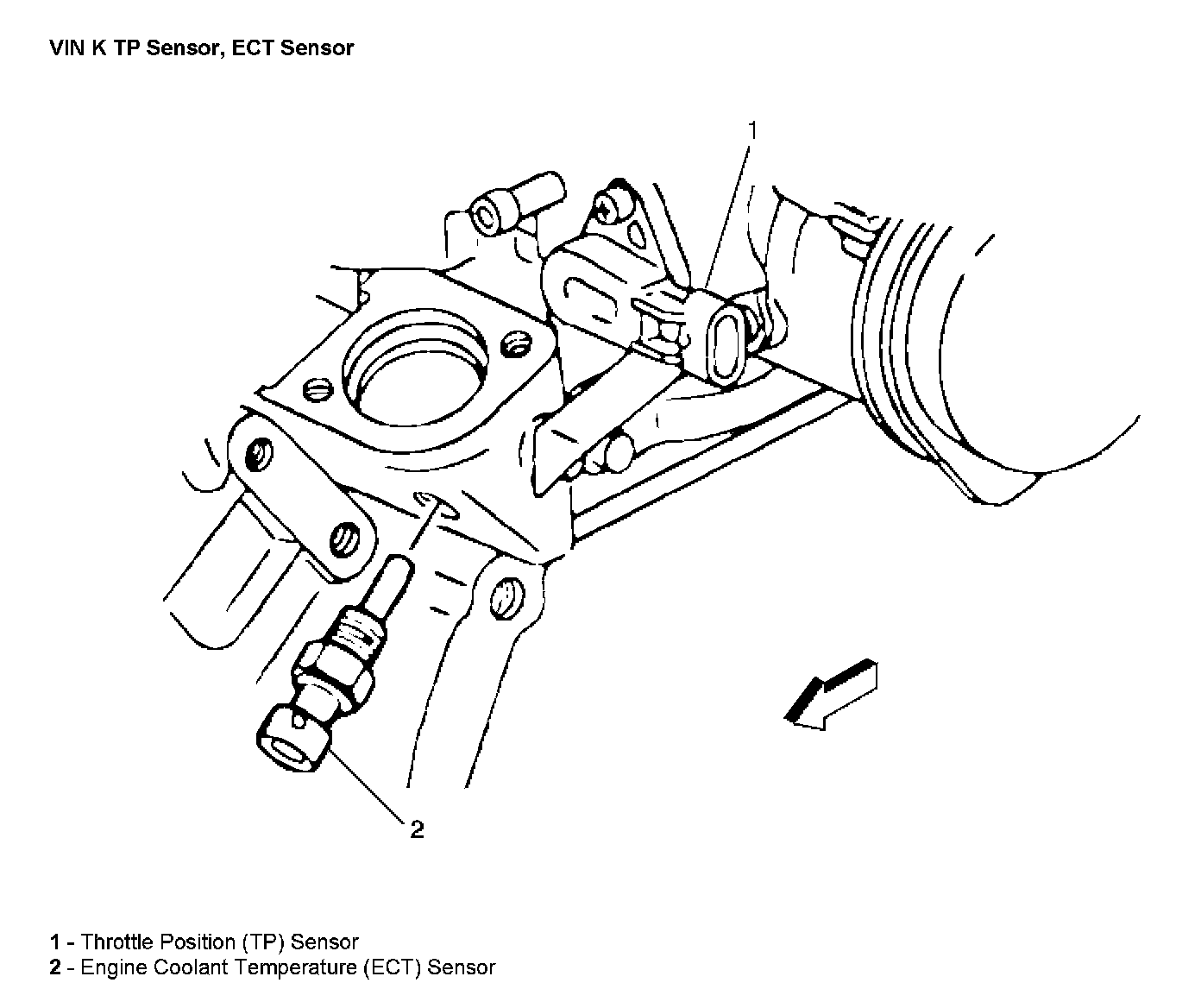

TP Sensor, ECT Sensor:



Fuel Pressure Regulator, IAC Valve, MAF Sensor, TP Sensor, IAT Sensor:



Front View:
