Air Flow Meter/Sensor: Locations

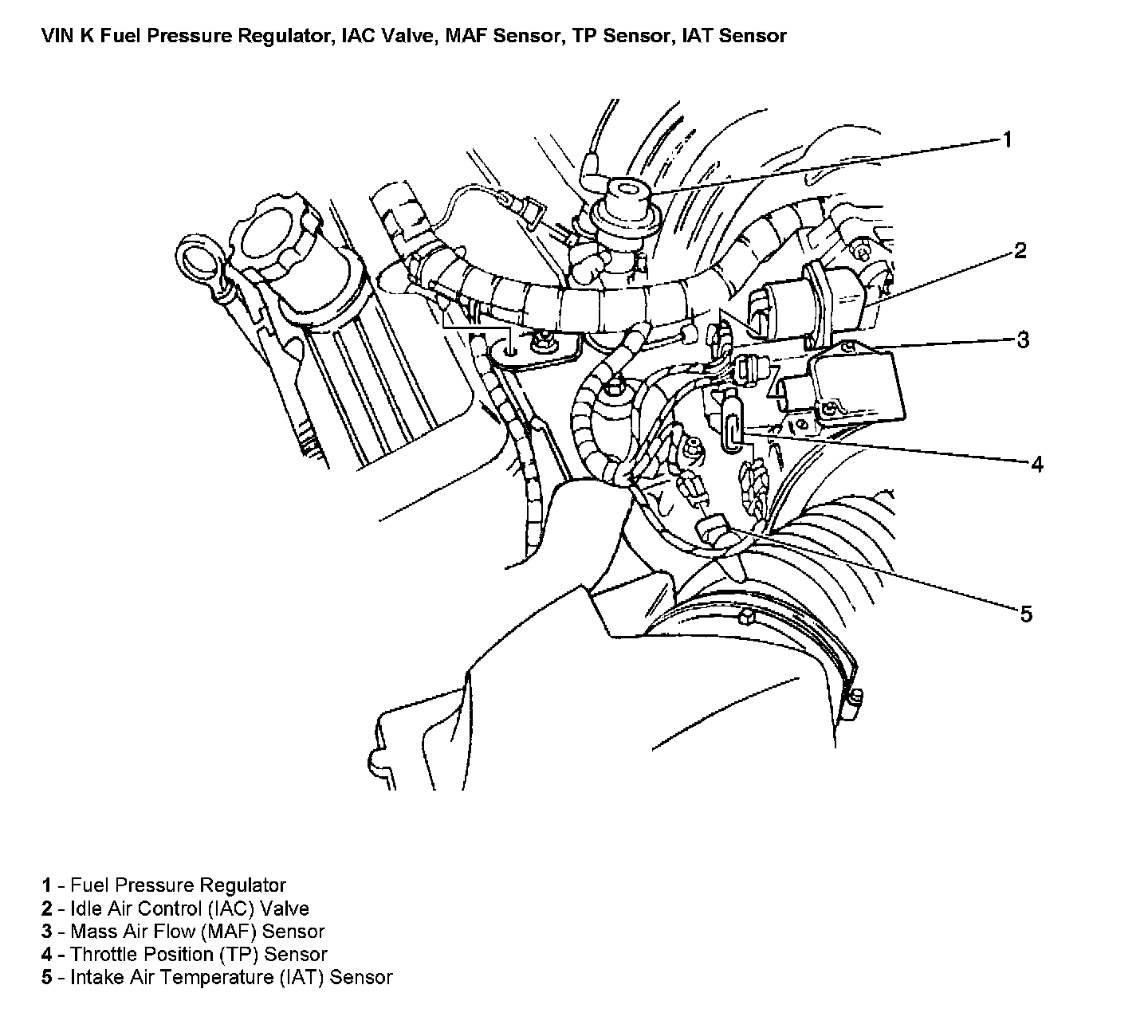

Fuel Pressure Regulator, IAC Valve, MAF Sensor, TP Sensor, IAT Sensor:
Front View:
