Home >> Buick >> 2005 >> Park Avenue V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

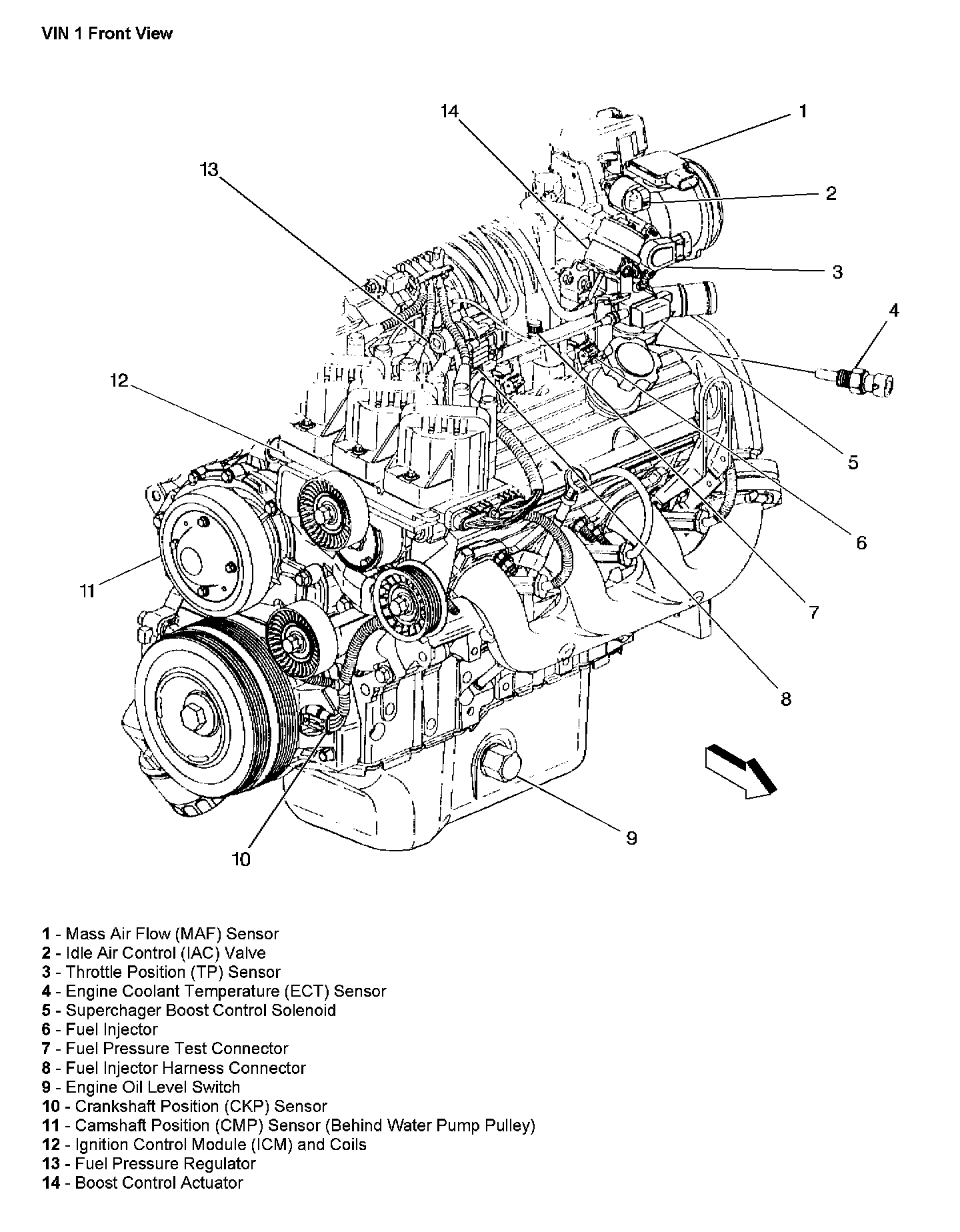

Front View:

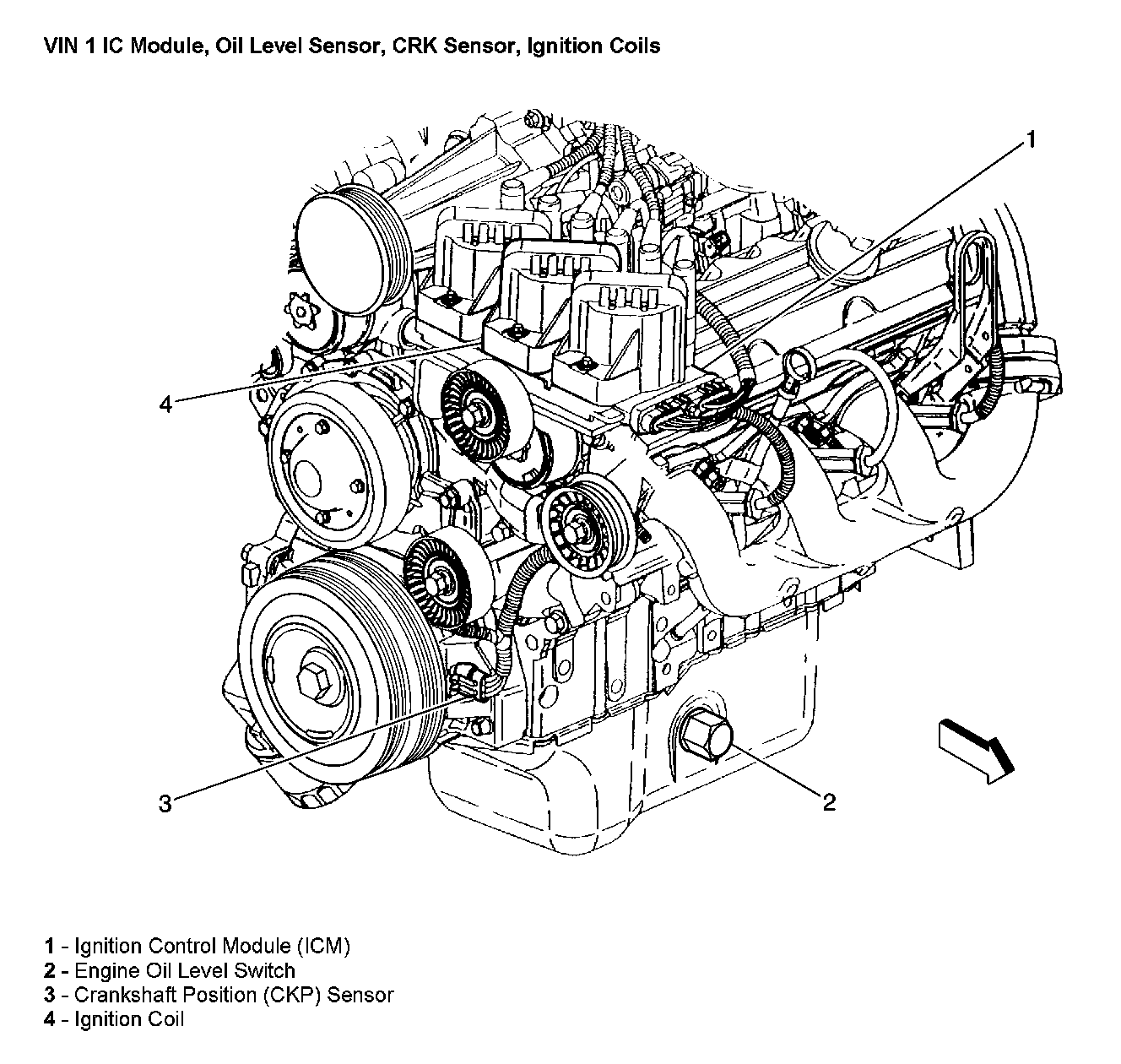

IC Module, Oil Level Sensor, CRK Sensor, Ignition Coils:
