Park Avenue V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Module
Memory Positioning Module

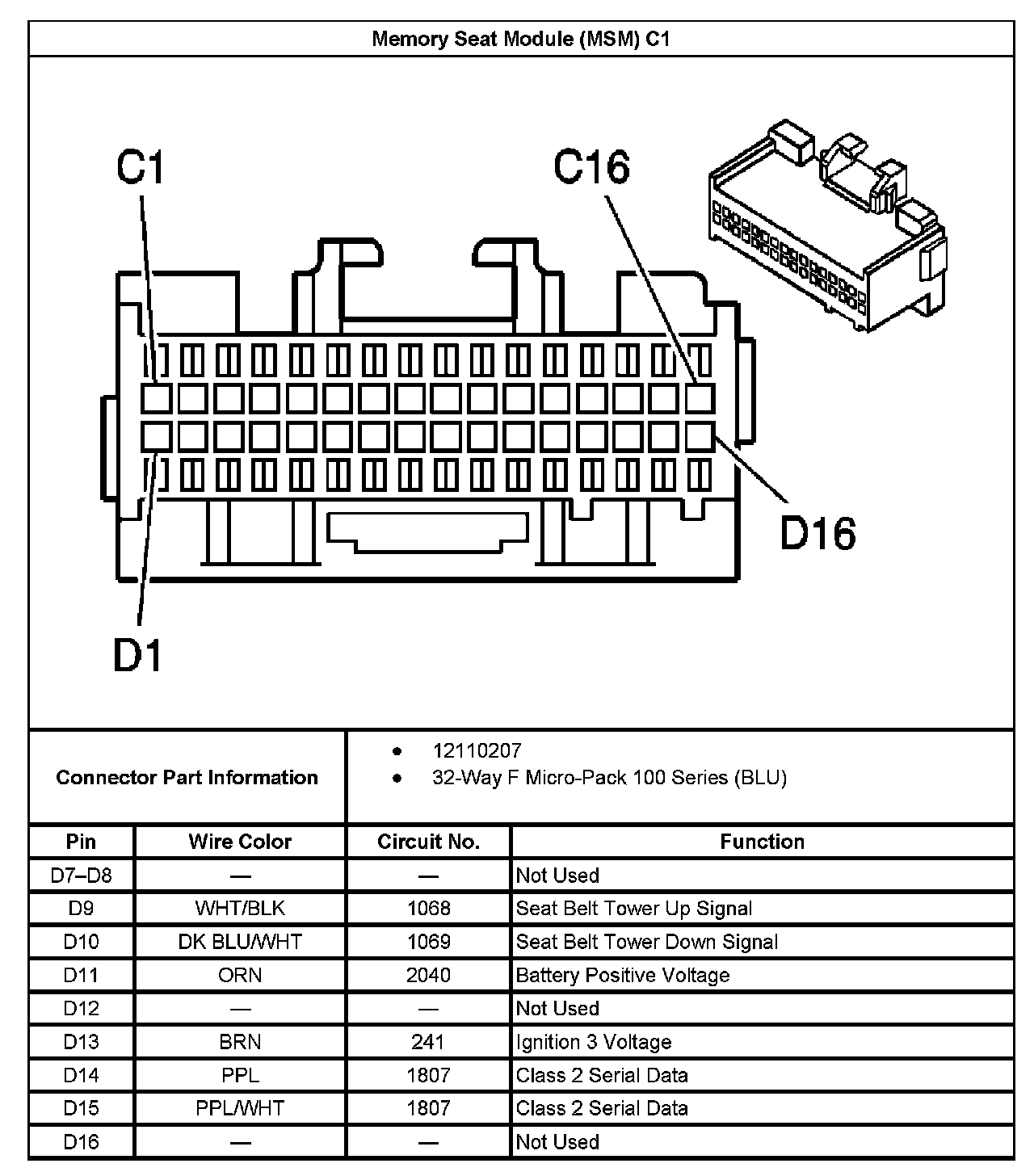

Memory Seat Module (MSM) C1 Part 1:

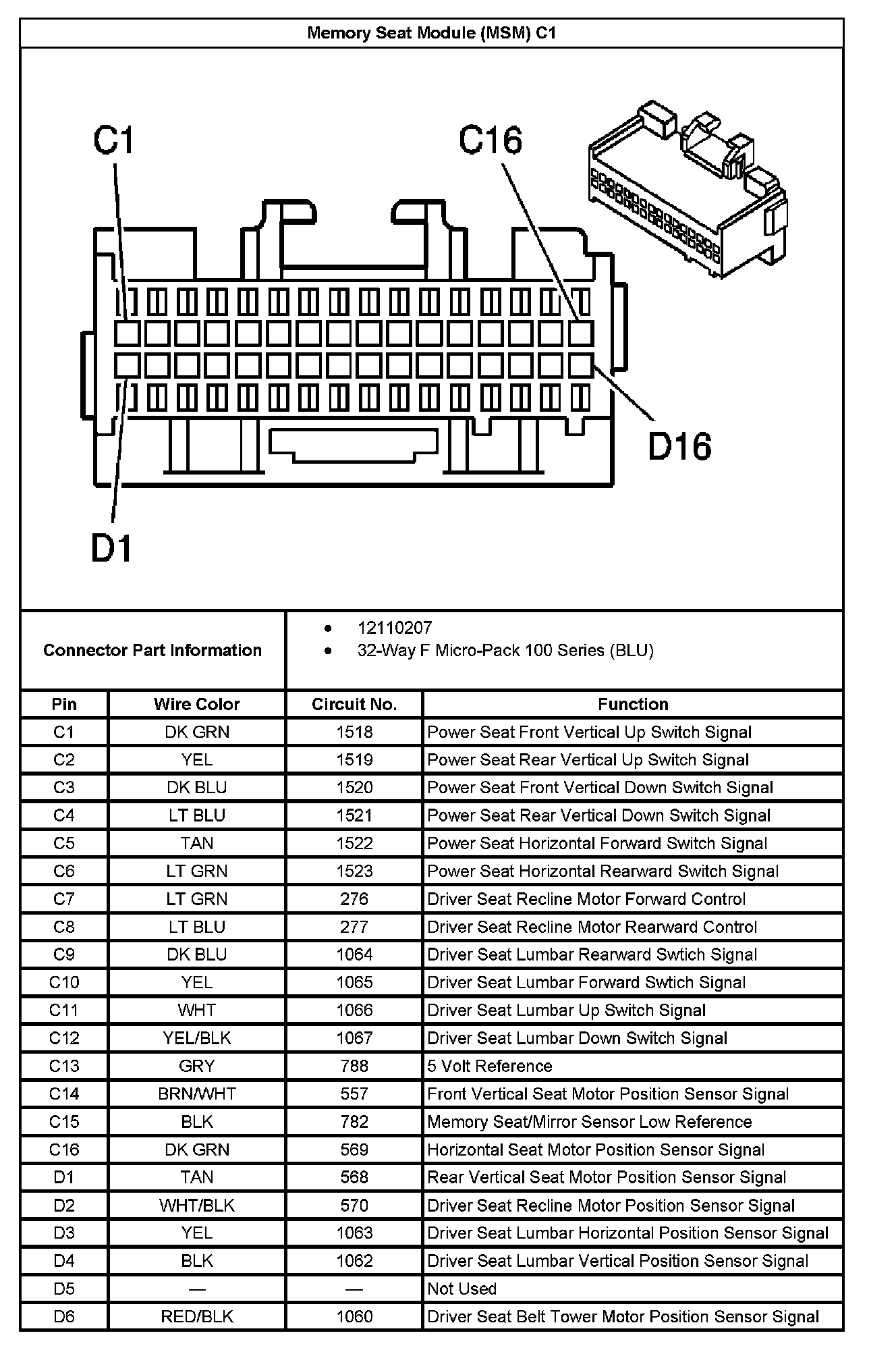

Memory Seat Module (MSM) C1 Part 2:
Memory Seat Module (MSM) C2:
