Heated Seat Module - Driver

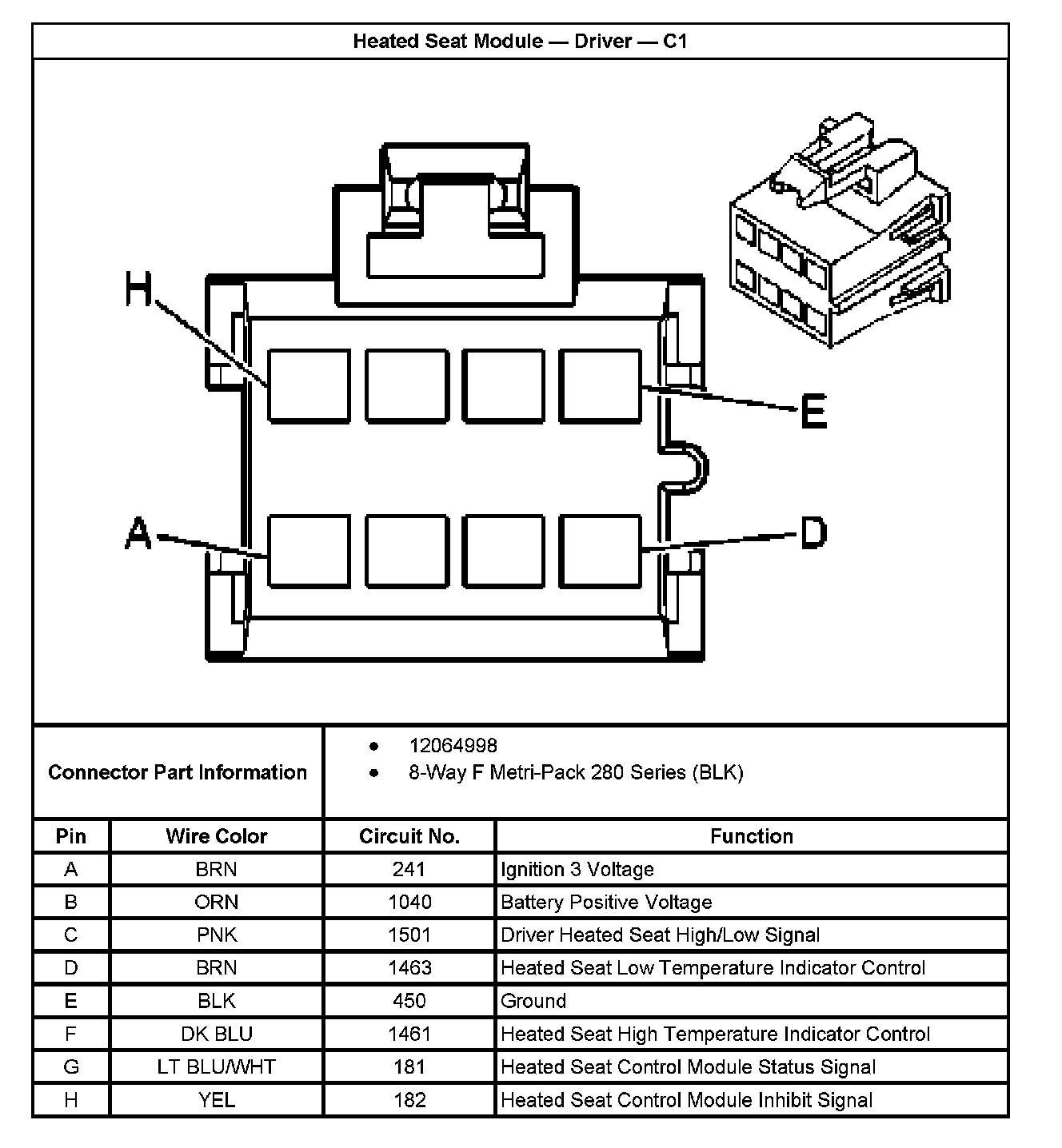

Heated Seat Module - Driver - C1:



Heated Seat Module - Driver - C2 (Seat Cushion):



Heated Seat Module - Driver - C3 (Seat Back):
