Connector Views

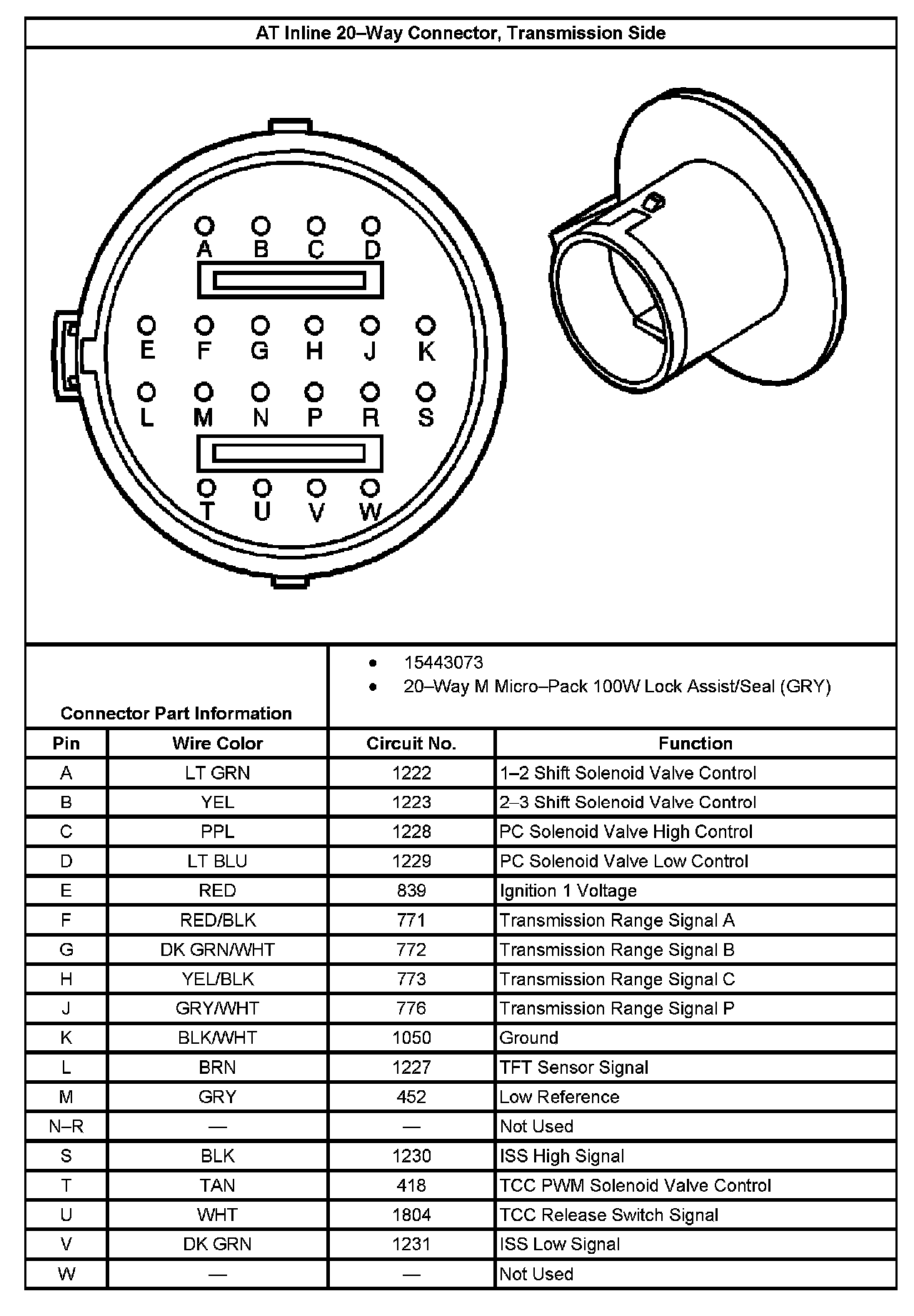

Automatic Transmission Inline 20-Way Connector End View:

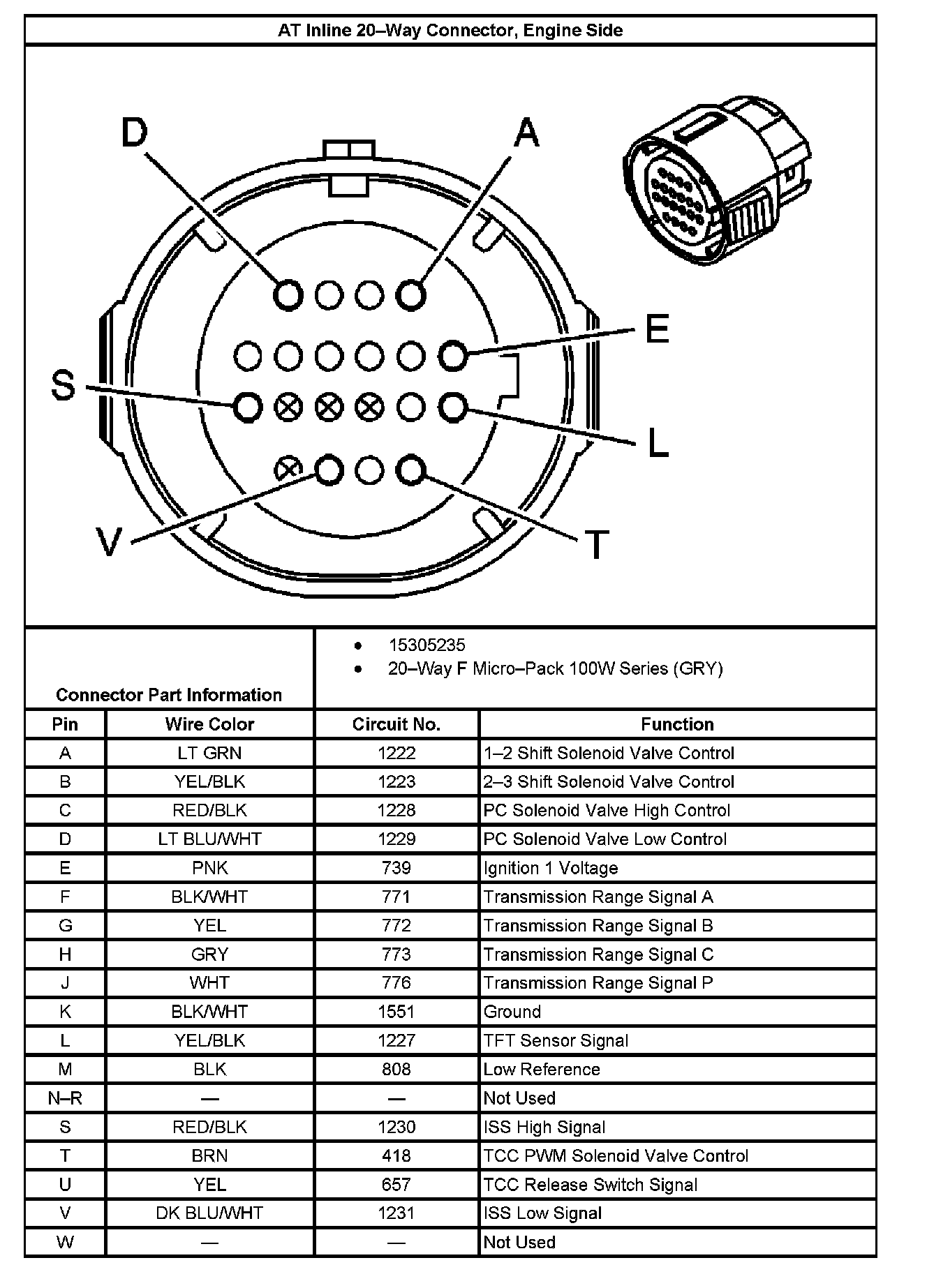

Automatic Transmission Inline 20-Way Connector End View:

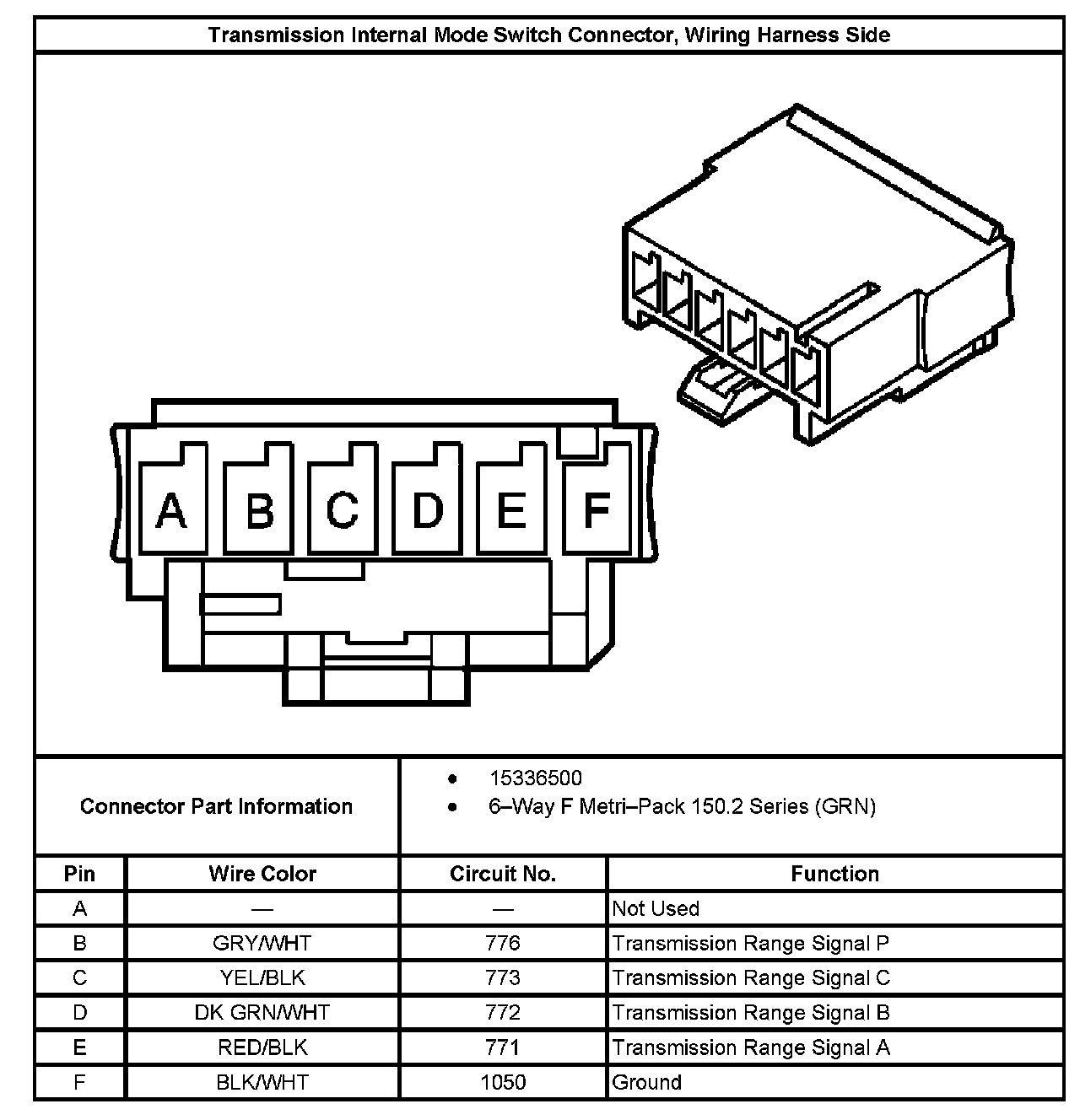

Transmission Internal Mode Switch Connector, Wiring Harness Side:
