Body Control Systems
Body Control System Diagram 1:

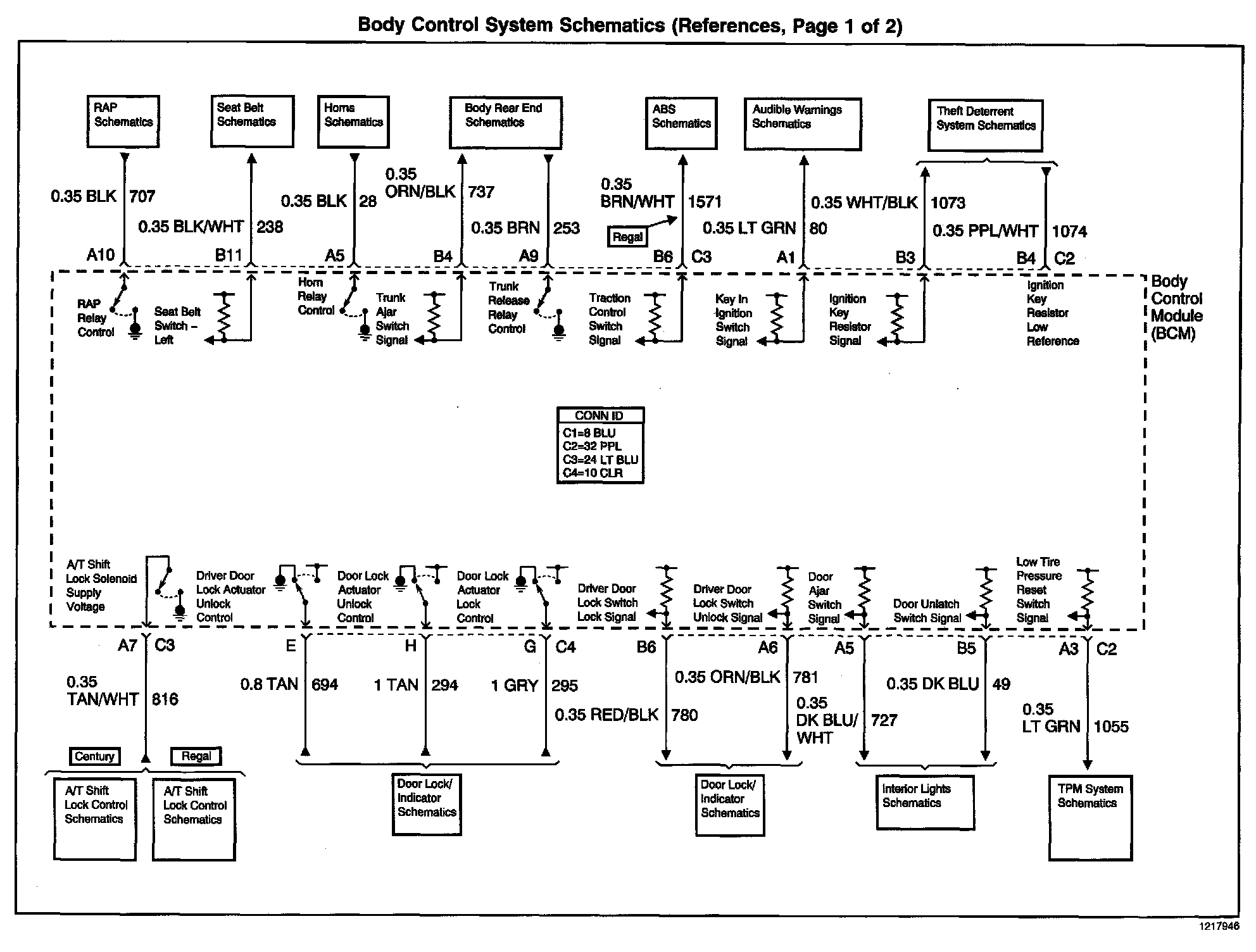

Body Control System Diagram 2 (Part 1 Of 2):

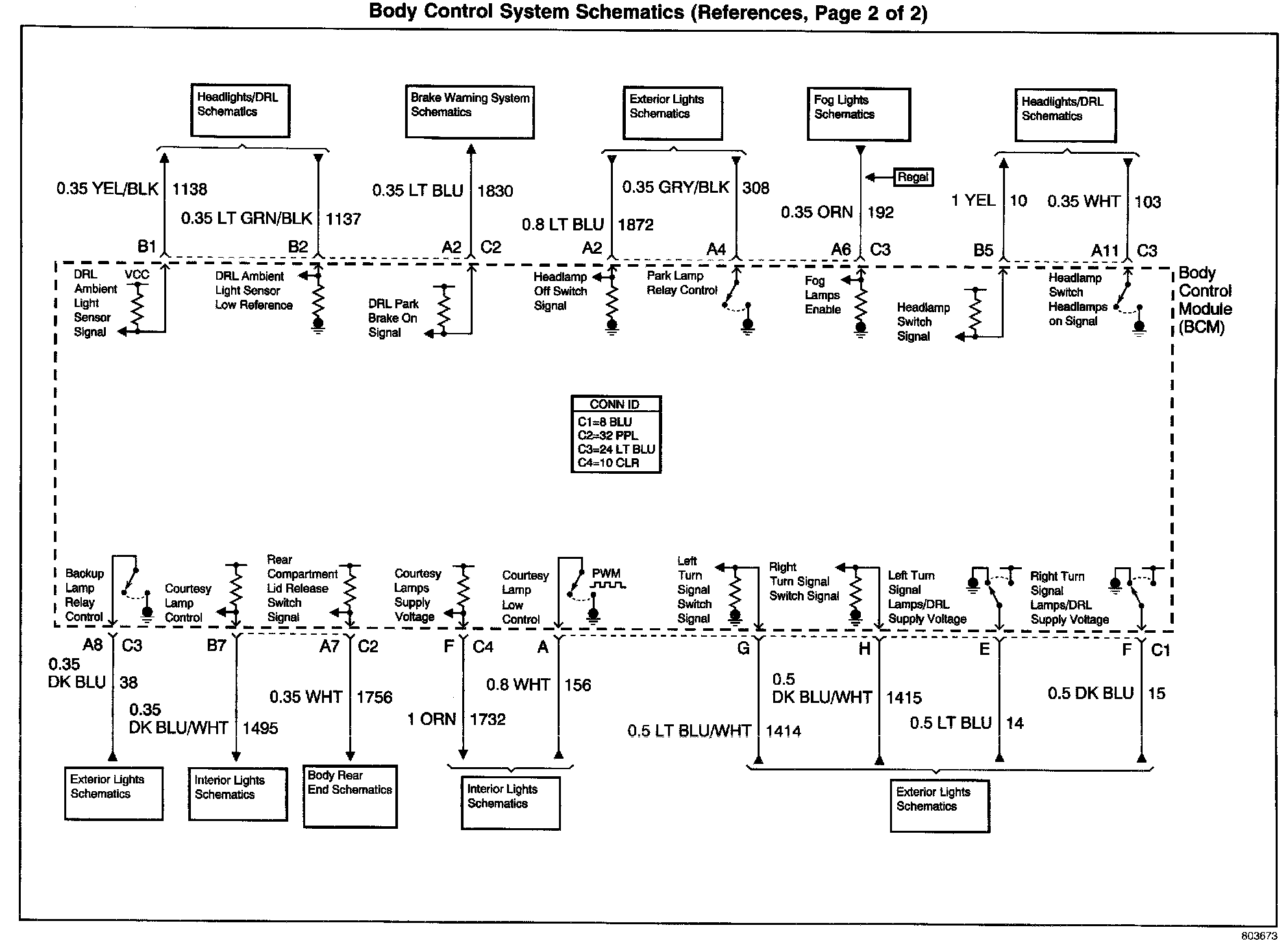

Body Control System Diagram 2 (Part 2 Of 2):
