Home >> Buick >> 2004 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

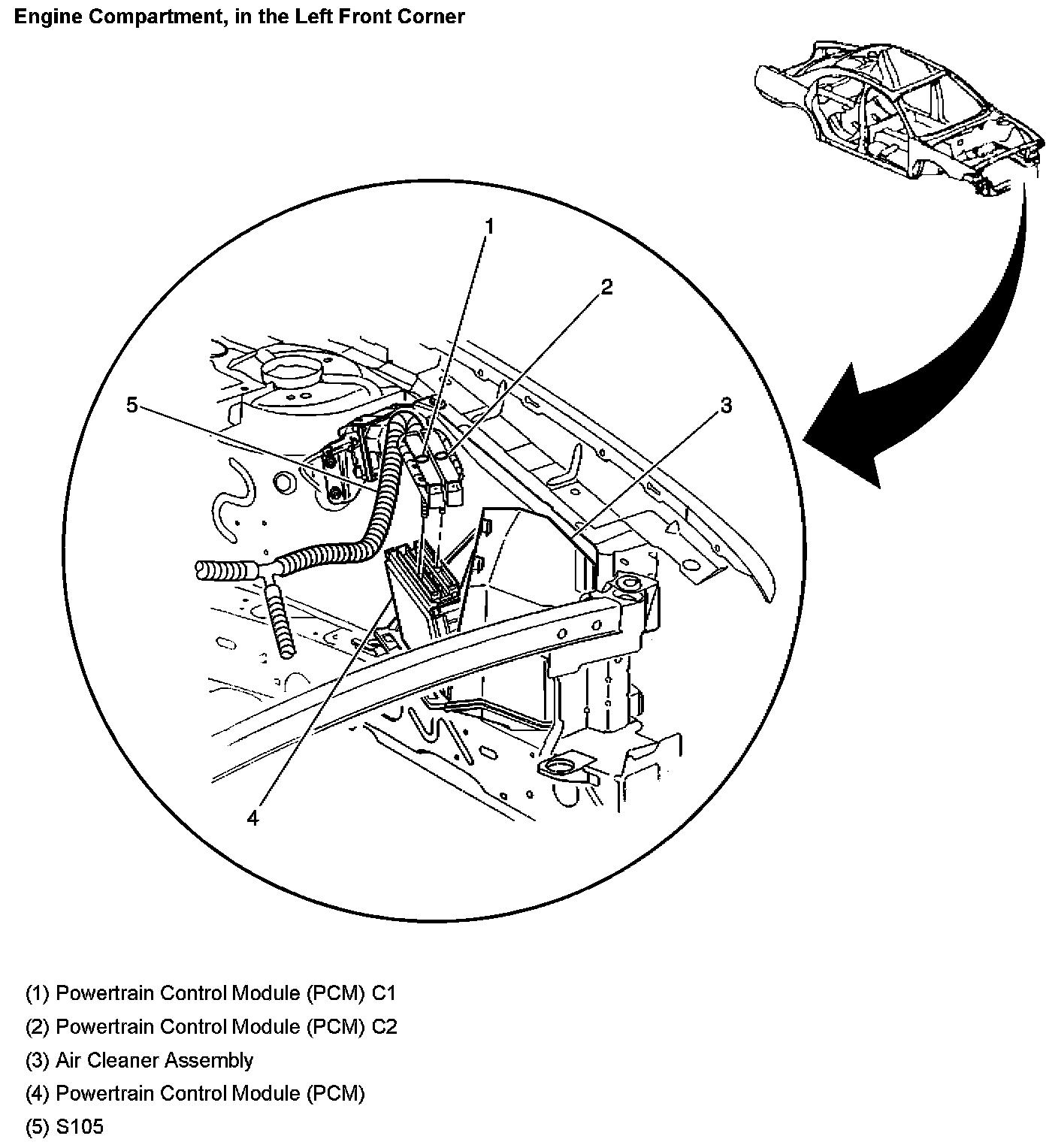

Engine Compartment, in the Left Front Corner:

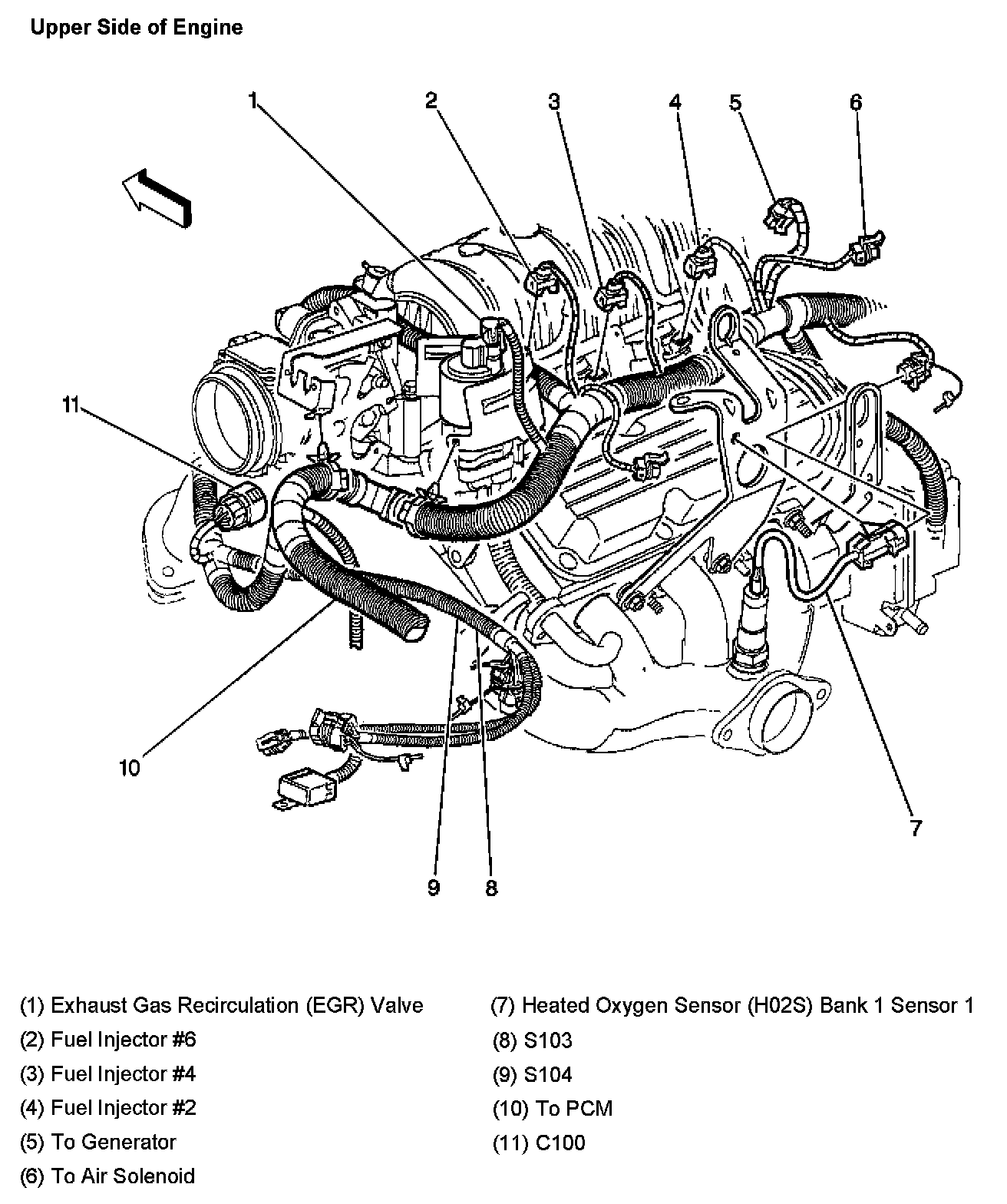

Upper Side of Engine:
