Home >> Buick >> 2003 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

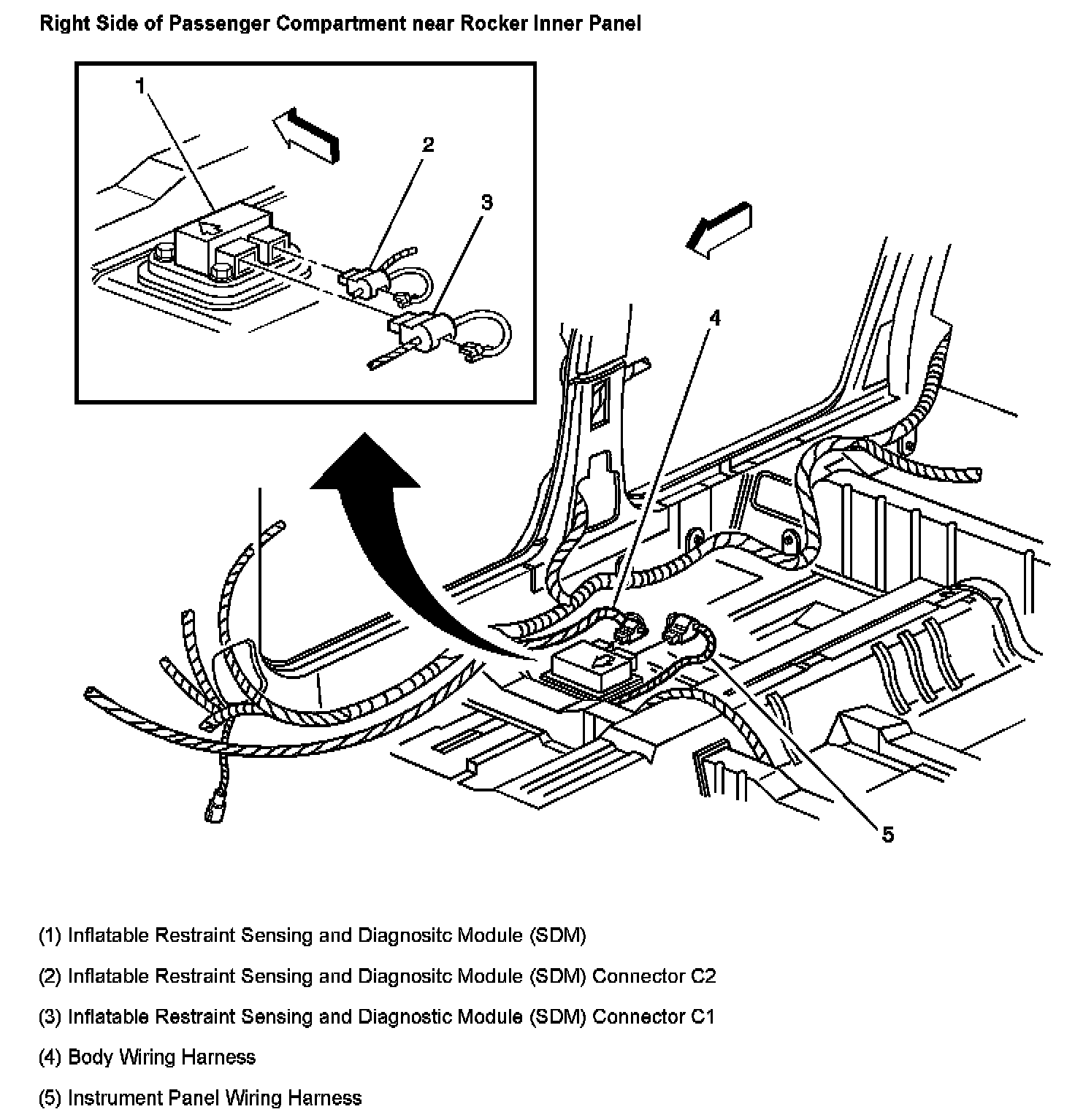

Right Side Of Passenger Compartment Near Rocker Inner Panel:
