Home
>>
Buick
>>
2003
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch
Window Master Switch-Driver, C1:
Window Master Switch-Driver, C2:

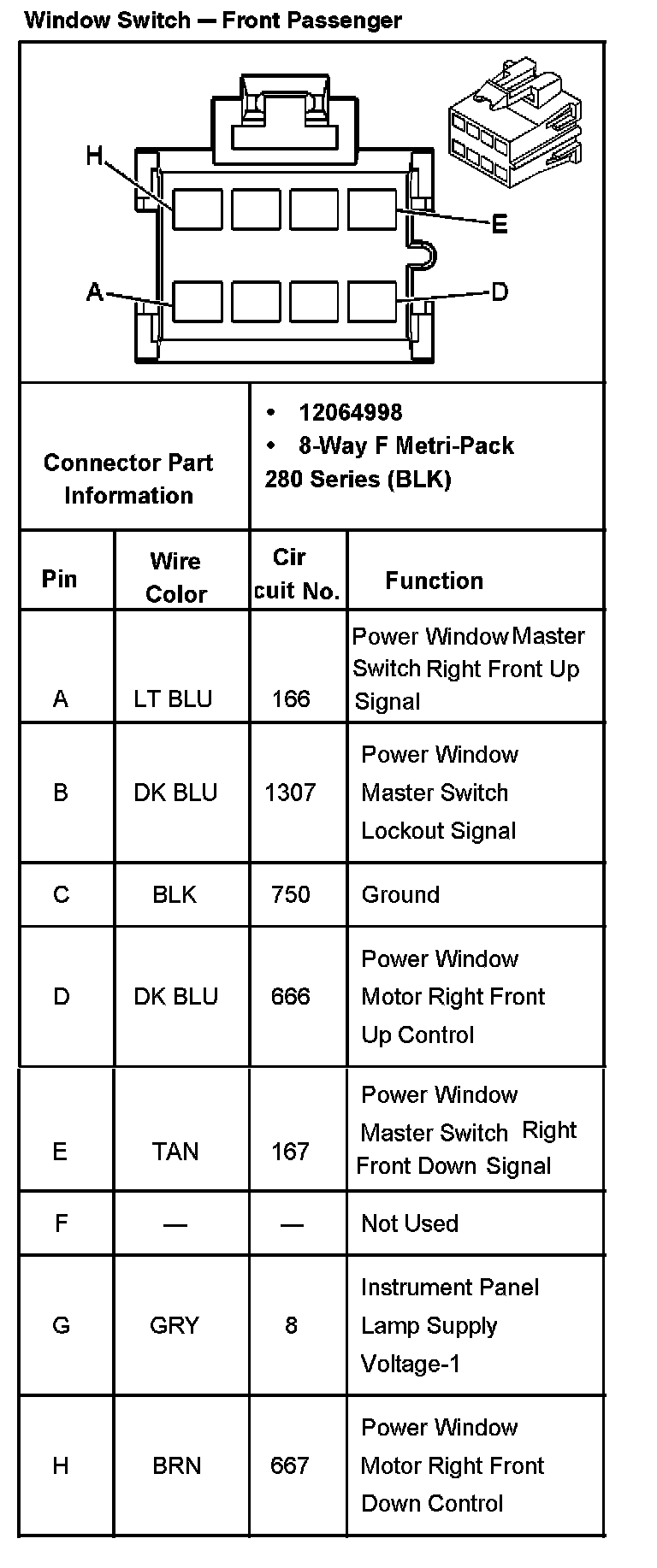

Window Switch-Front Passenger:
Window Switch-LR:
Window Switch-RR:
