Scan Tool Output Controls

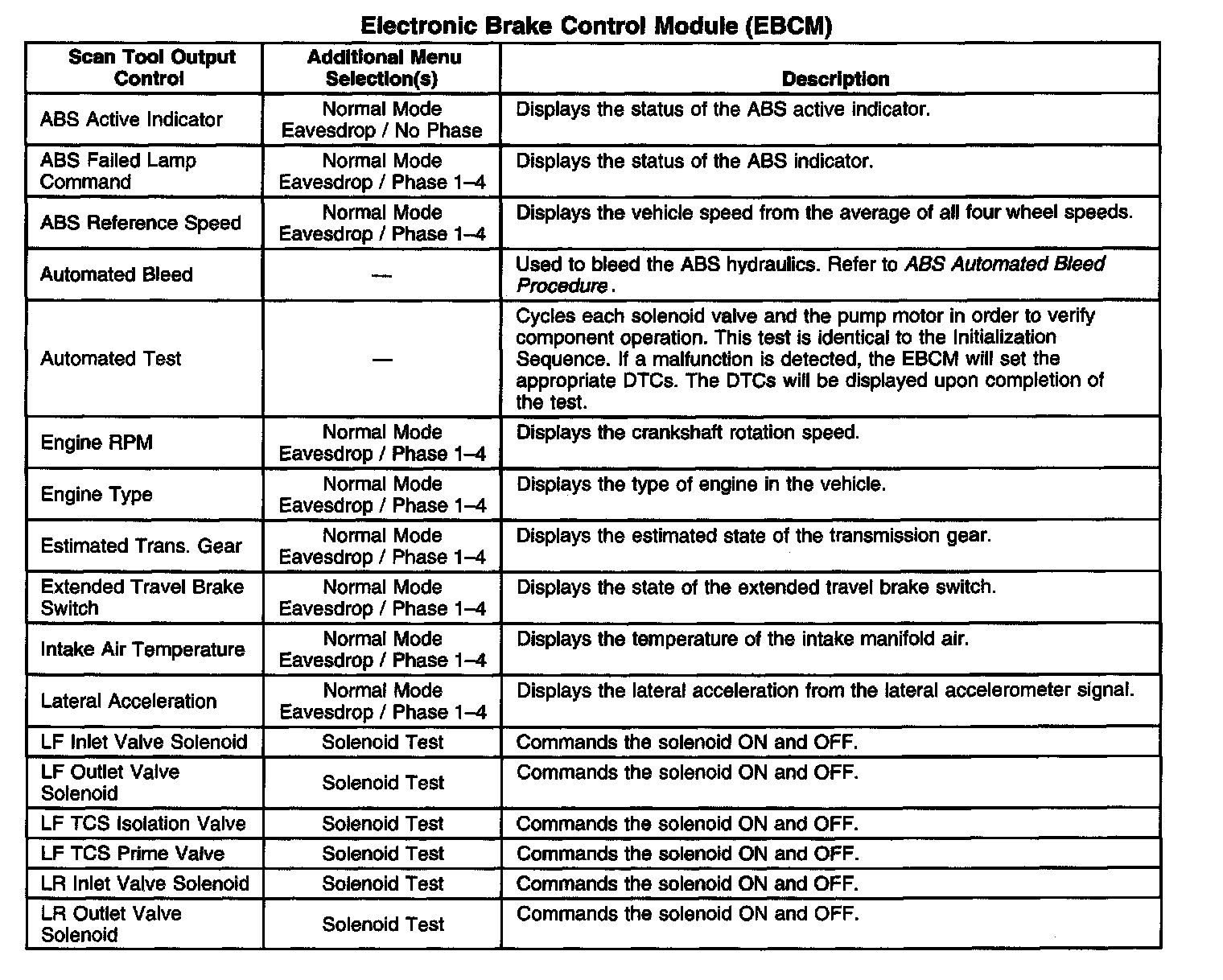

Electronic Brake Control Module (EBCM):

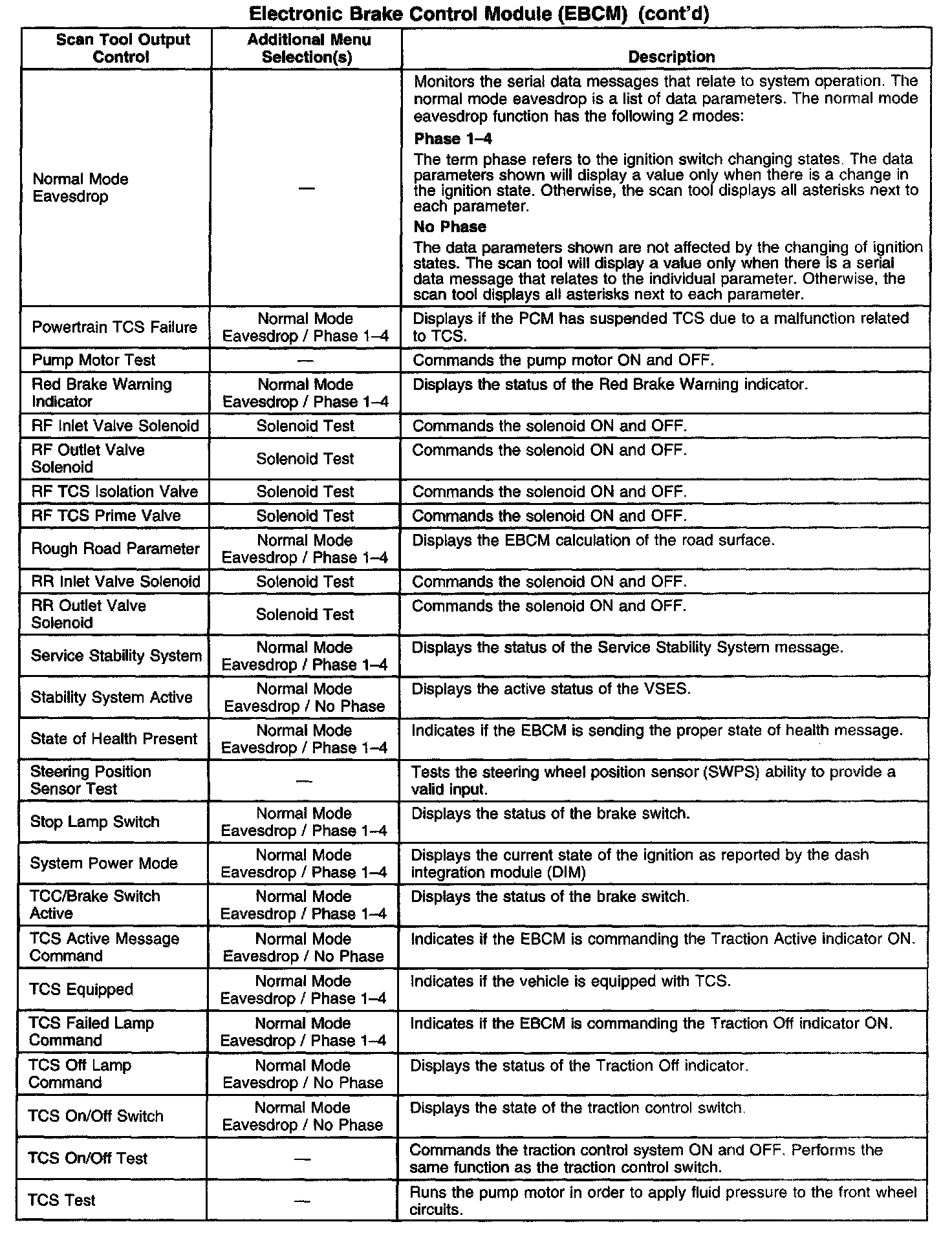

Electronic Brake Control Module (cont'd):

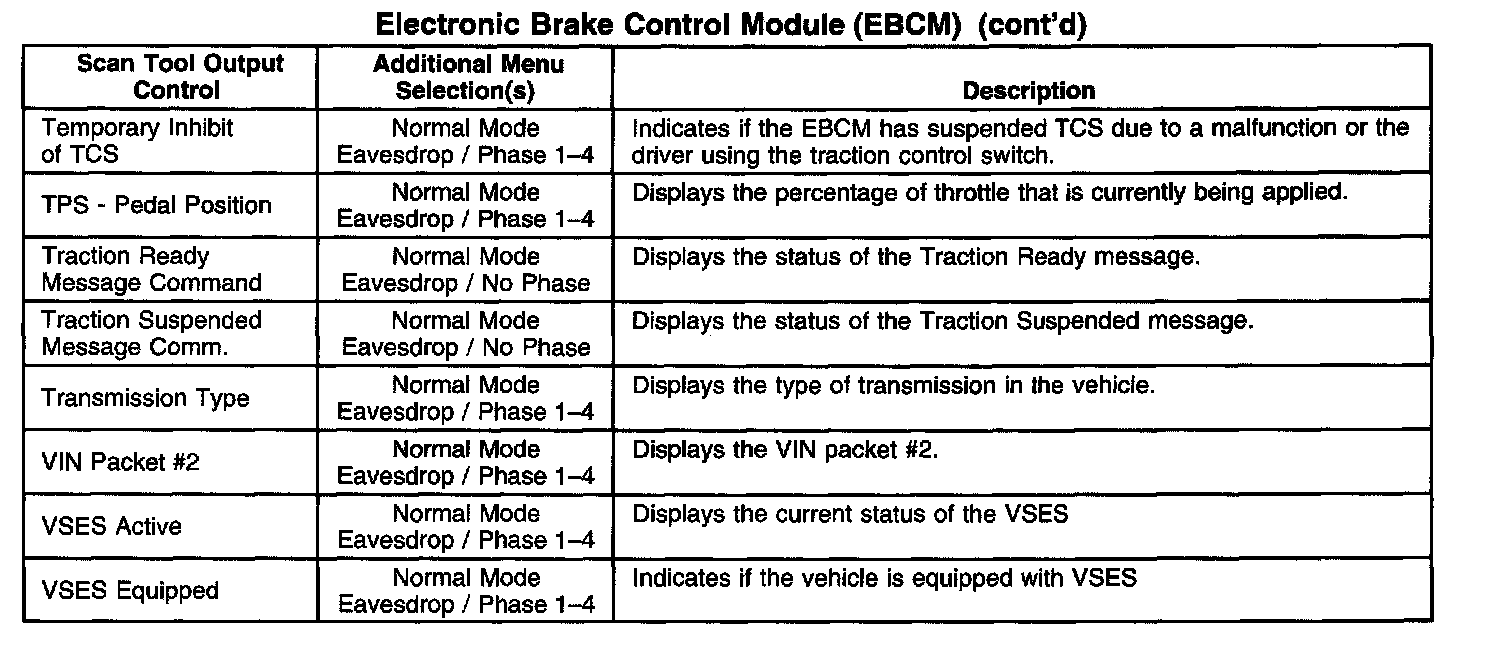

Electronic Brake Control Module (EBCM)(cont'd):
