Electrical Specifications

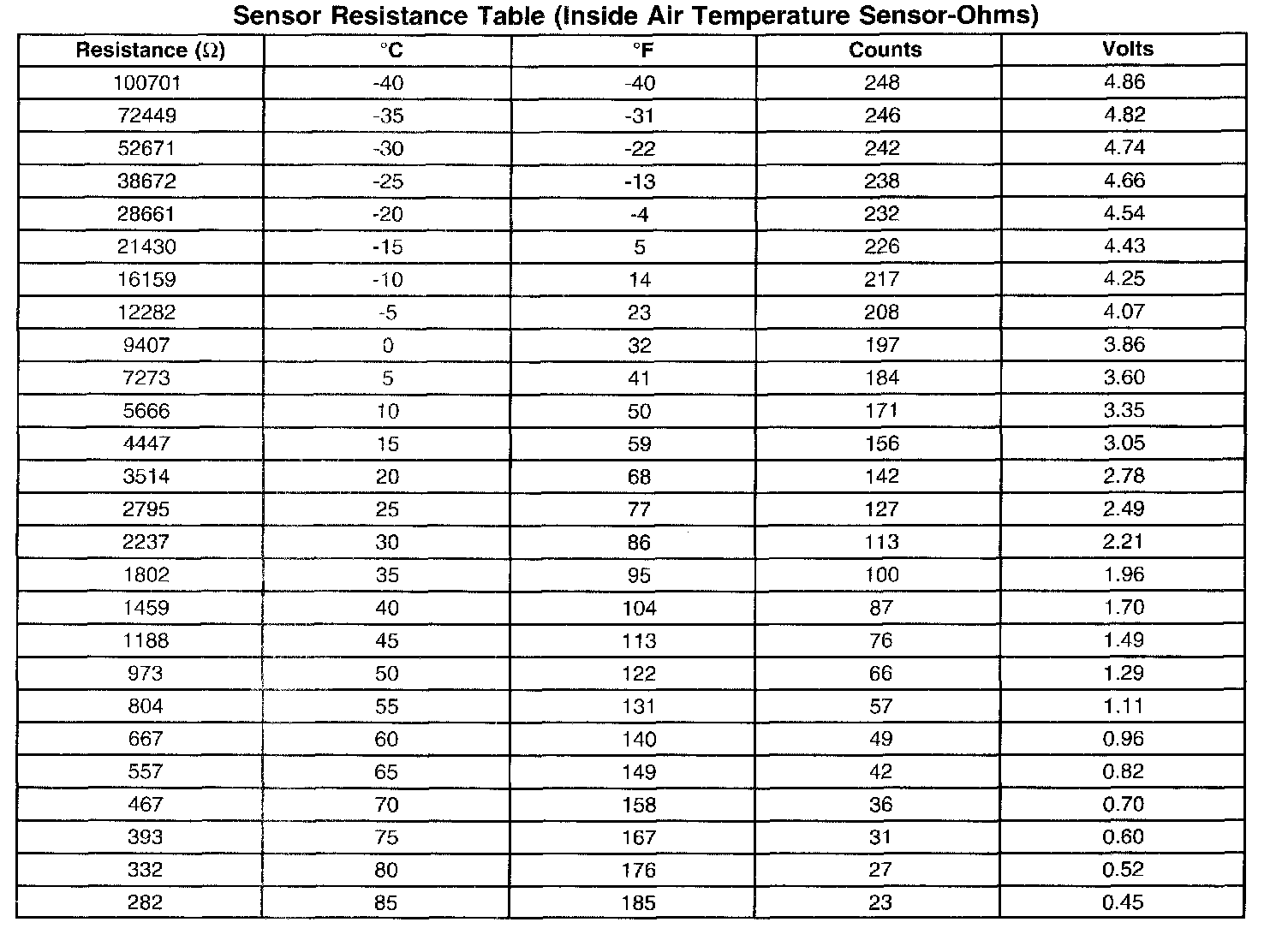

Sensor Resistance Table (Inside Air Temperature Sensor-Ohms) - HVAC Systems - Automatic:



Sensor Resistance Table (Outside Air Temperature Sensor-Ohms) - HVAC Systems - Automatic:
