Mirrors
Mirrors

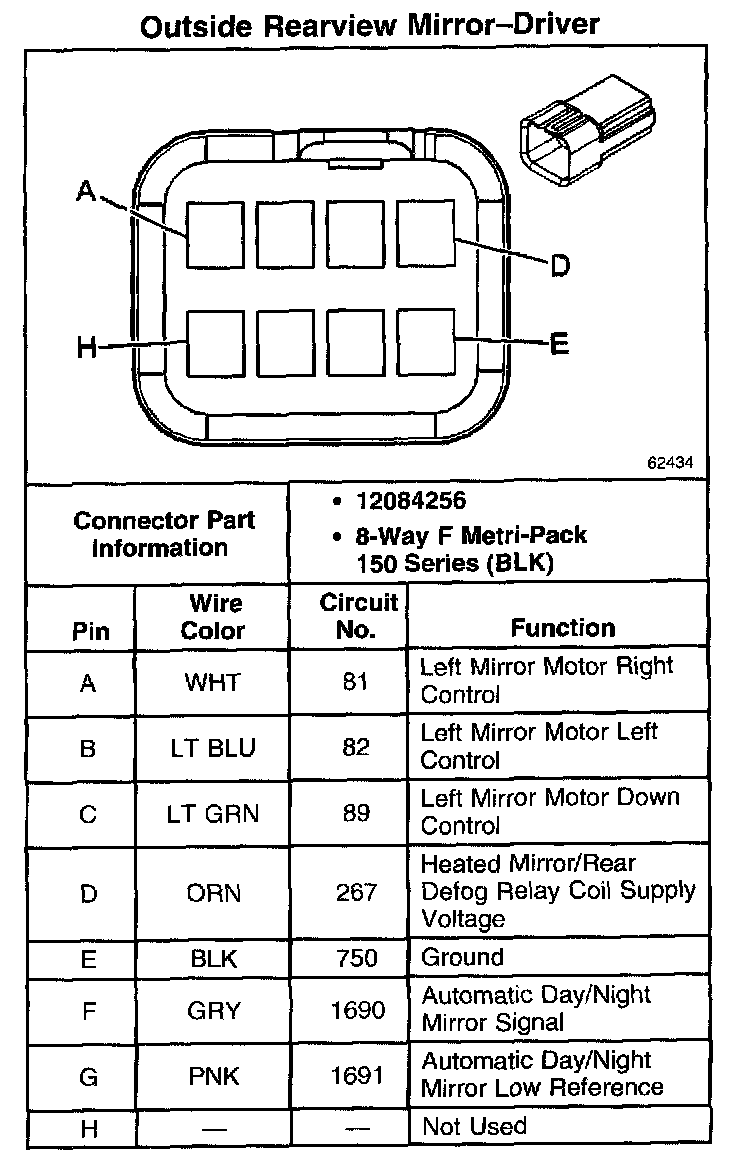

Outside Rearview Mirror - Driver:

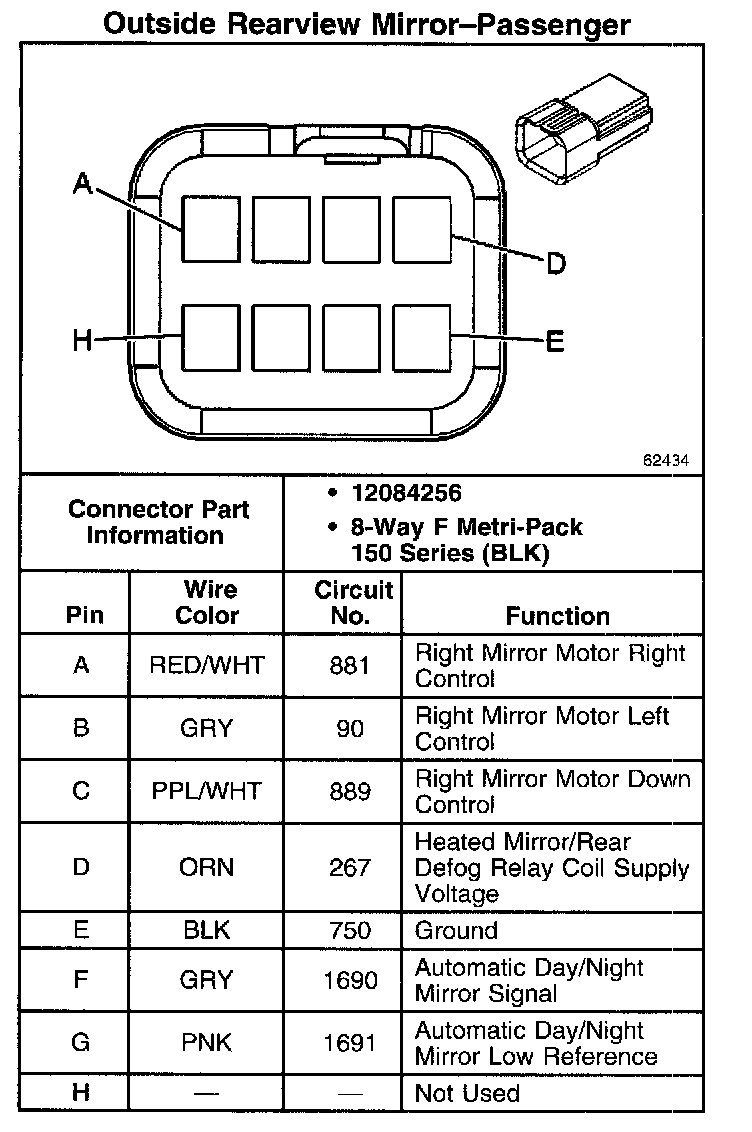

Outside Rearview Mirror - Passenger:

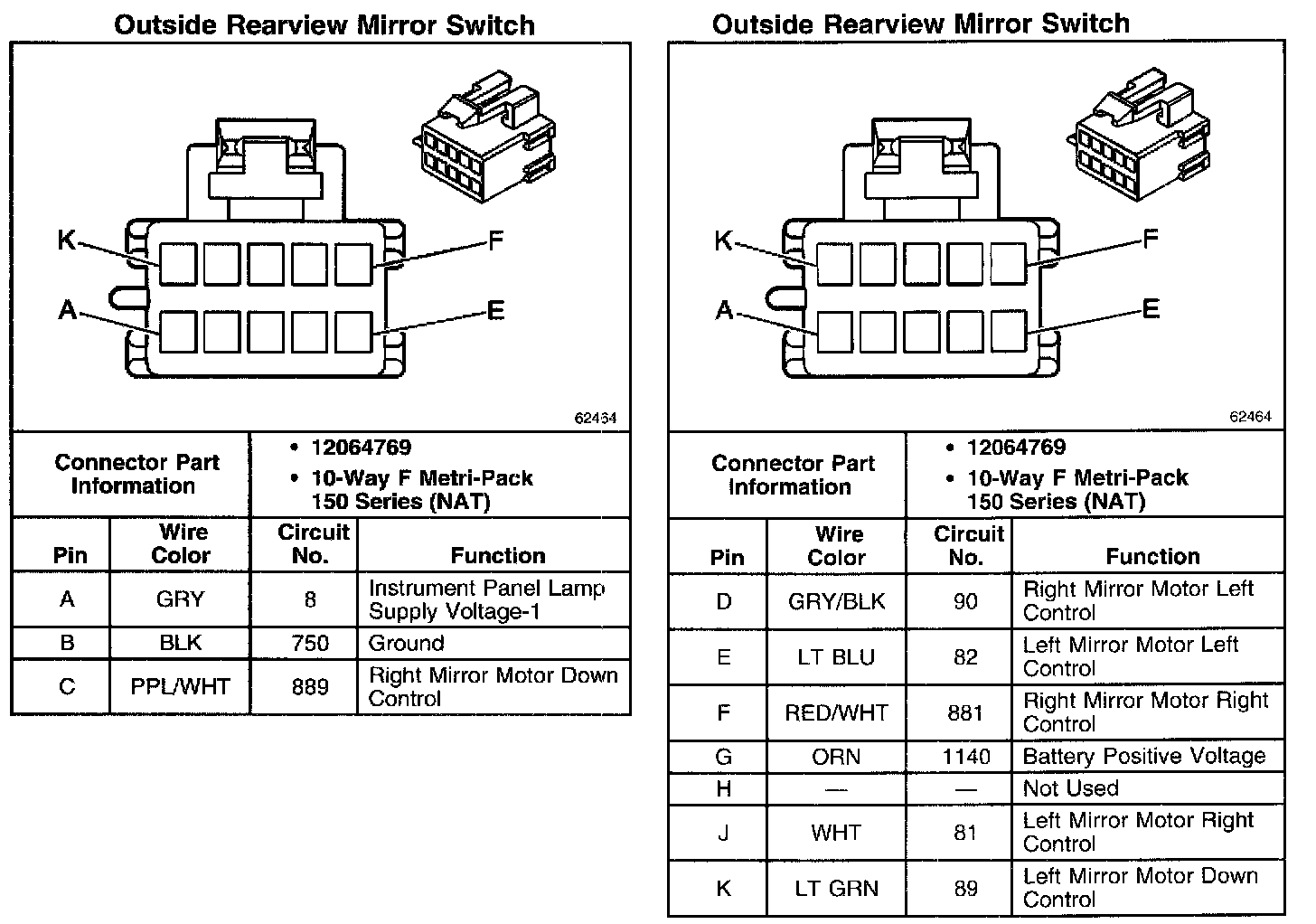

Outside Rearview Mirror Switch:
Window Motor - Driver:
