Fuel Injector
Fuel Injector

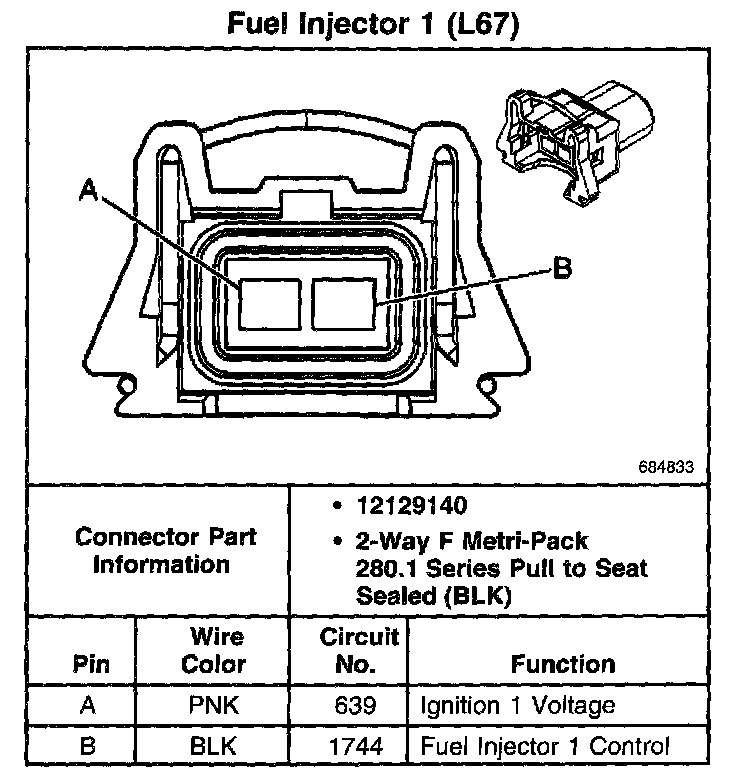

Fuel Injector 1 (L67):
Fuel Injector 2 (L67):
Fuel Injector 3 (L67):
Fuel Injector 4 (L67):
Fuel Injector 5:
Fuel Injector 6:
