Home >> Buick >> 2001 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Harness >> Ignition Control Module - RH Side of Engine

Ignition Control Module - RH Side of Engine

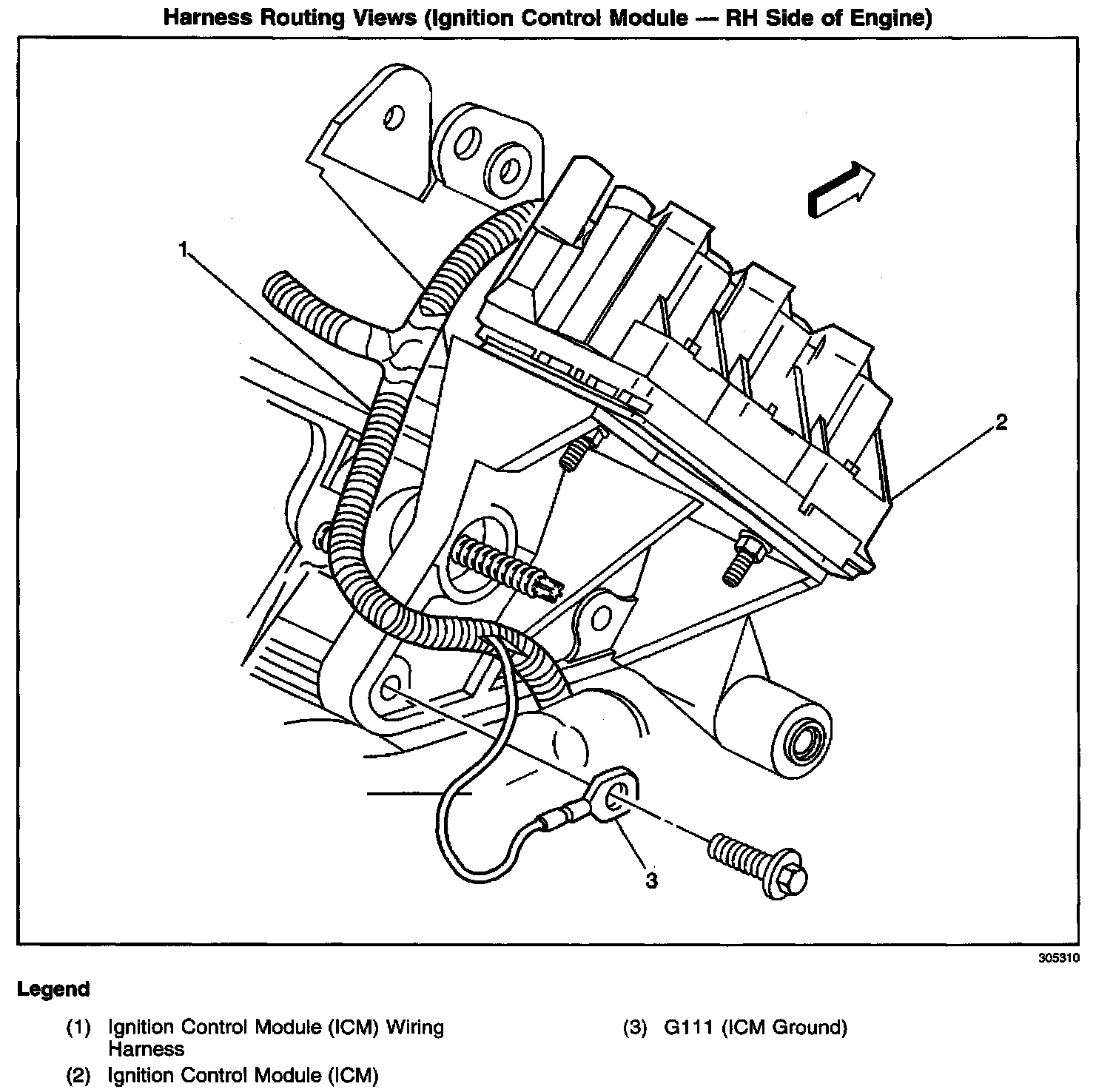

Harness Routing Views (Ignition Control Module - RH Side Of Engine):
