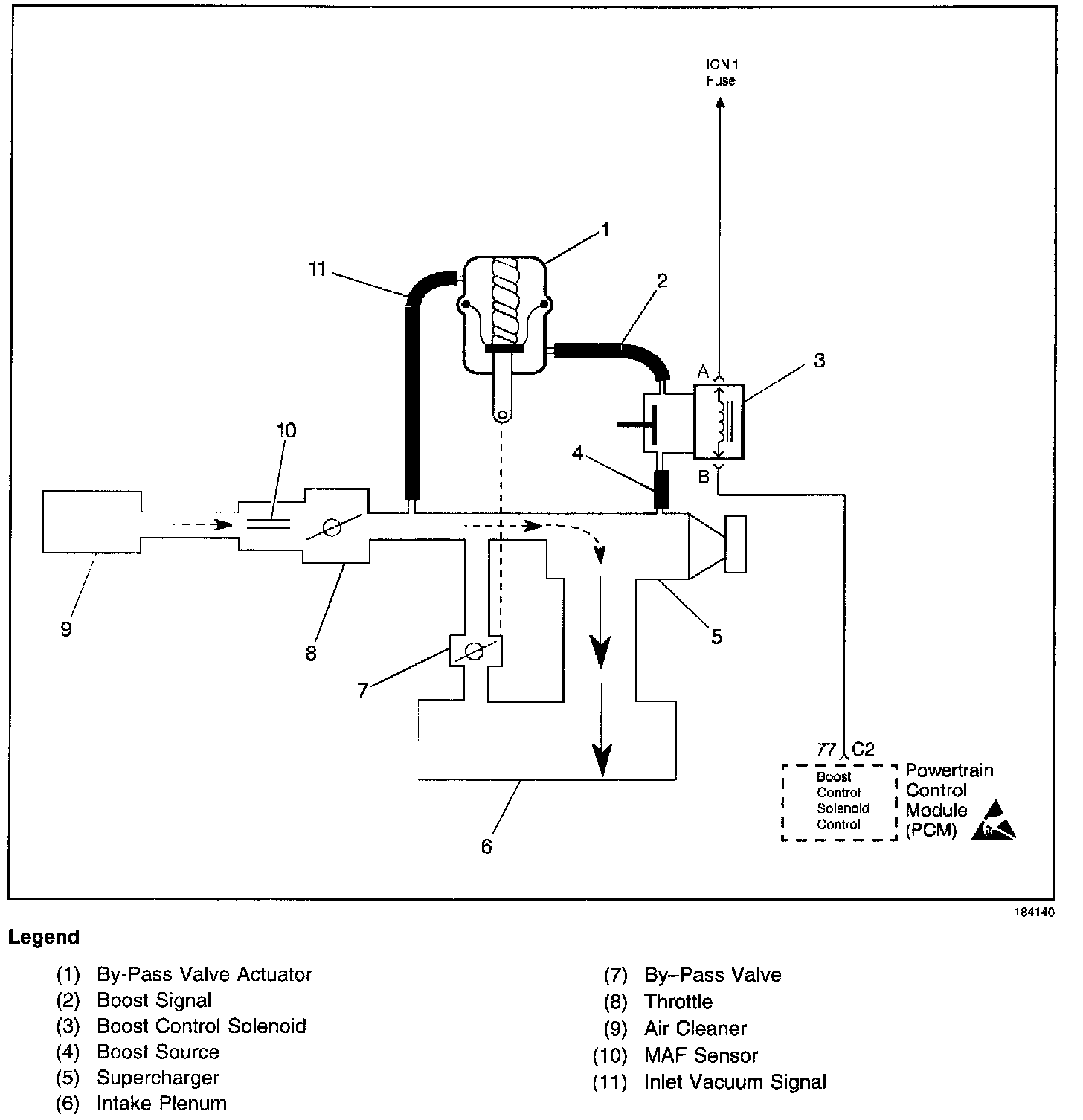

Boost Control System Operation (Bypass Valve Closed)

Boost Control System Operation (Bypass Valve Closed):
