Home >> Buick >> 2000 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Locations

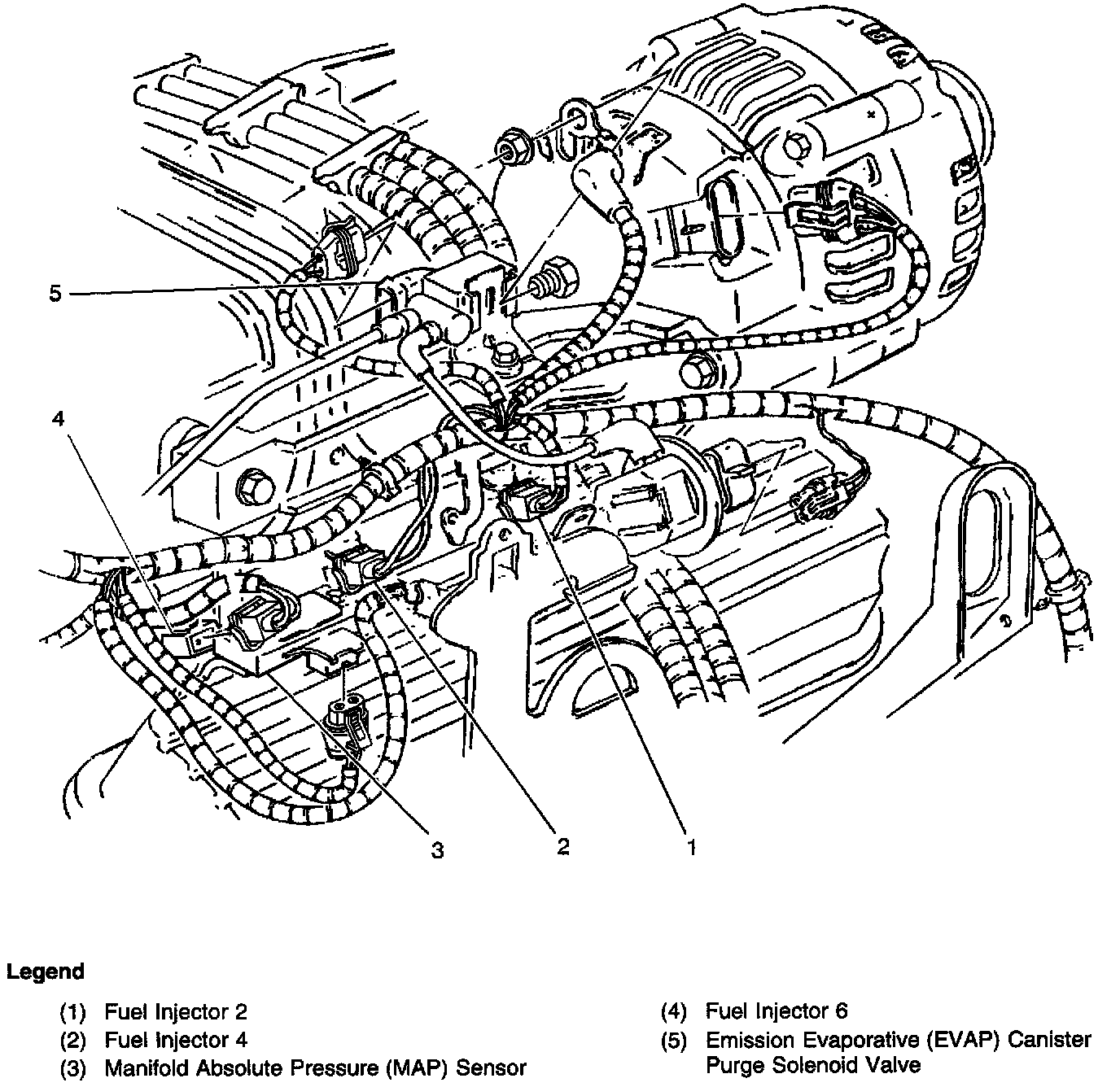

Manifold Pressure/Vacuum Sensor: Locations

Locations View:




Top rear of the engine, above the valve cover
