Air Flow Meter/Sensor: Locations

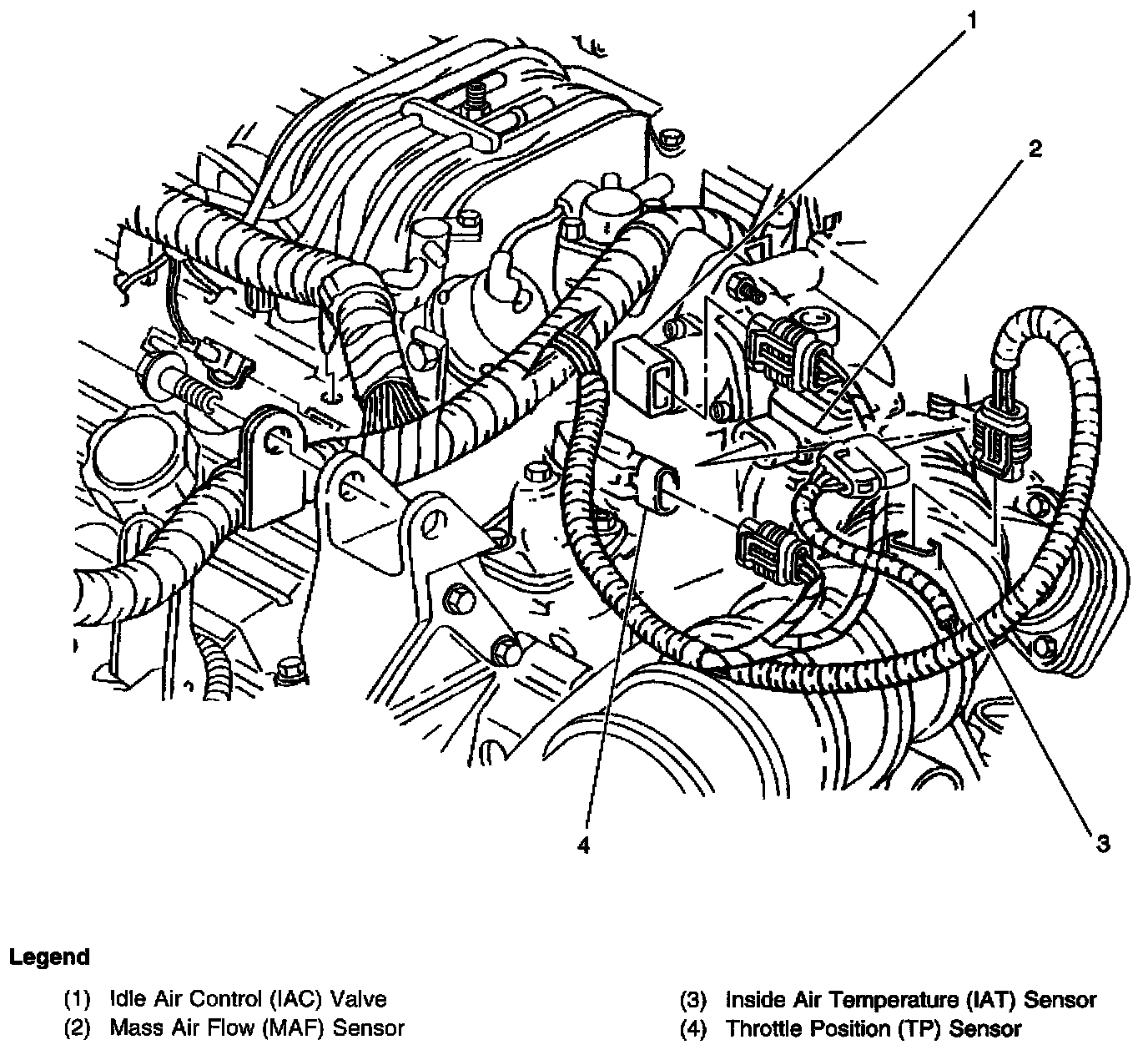

Locations View:

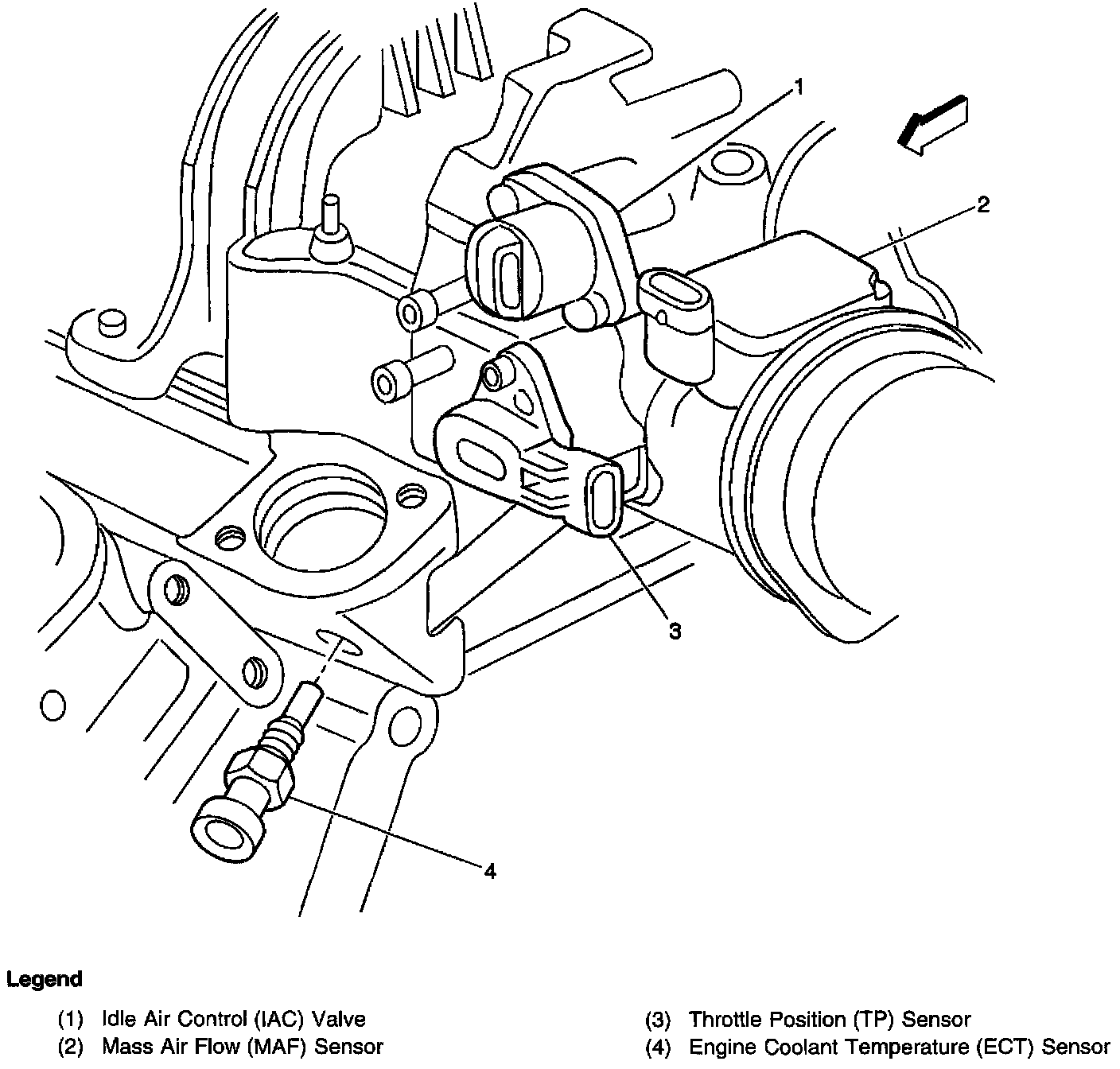

Locations View:
Left front of the engine, part of the throttle body assembly
